AgfaPhoto AF 5088 Quick Start Manual

AF 5088/5108MS
1
1.3
1.2
1.1
2
2.2
2.1
2.4
2.3
3
A B C
A B C
3.1
3.2
Quick Start Guide
1 Packing Contents

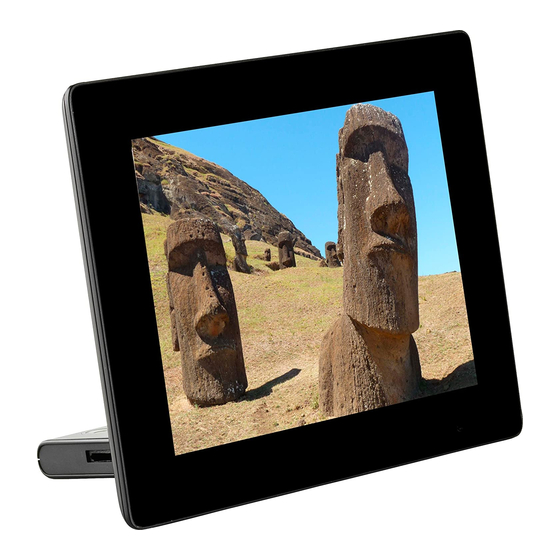

1.1 Digital Photo Frame
1.2 Power Supply
1.3 Quick Guide
2 Getting Started
2.1 Insert a memory card (SD, MMC or MS) into the card slot.
Insert the USB device into the USB port.
The card will only fit in one direction; do not
force it. The card should fit snugly when
properly inserted.
2. 2 Connecting to a PC.
Using the USB cable(not included), you can connect your
frame to a computer to transfer files between the internal
memory and computer.
If you connected the frame to a computer, the
inserted memory card can not be recognized.
2. 3 Plug AC adaptor into the Digital Photo Frame, and plug
it into a wall outlet.
2.4 Press the POWER button on the rear of the device to
power on.
3 Basic Operations
3.1 Press the button to enter the main menu.
A: Photo Playback
B: Video Playback
C: Music Playback
Press the button to enter the setting menu:
A: Preview Mode
B: Copy Menu
C: Delete Menu
D: Setting Mode
3. 2 Use the direction key to select different item.
1. Direction Key
2. Skips to previous or next image/video/music file.
D
Enable music playing menu during slide show.
1. Direction Key
2. Adjust the volume during audio playback.
Start/Pause the playback.
Press the button during photo playback:
Photo Preview Mode( 16 thumbnails per page)
1. Use or button to select a folder/album on the left ,then touch
2. Use button to select an image and touch OK to start the slideshow.
3. Skips to the previous or next image,use the or button.To pause or start the slide show,touch OK .
4. Touch the button to enter the background music setting menu. Use
Photo Copy Menu
1. Use or button to select a source;
2. Select an image and touch OK.
3. Use or button to select a folder/album and touch OK to start copying.
4. If select and touch OK, you can rename the album. Use
After input all the letters/digits, select the Enter and touch OK to confirm.
Photo Delete Menu
1. Use or button to select a source and;
2. Select an image and touch OK.Touch OK again to cancel the selections.
3. Touch button and then touch OK button.
button to select P to delete,select Q
4. Use or to cancel.
The same steps for music/video copy/delete.
Album Mp3
button.
or button to adjust the volume.
button to select a letter/digit and touch OK.
P Q
