Local console connections: Video

The AdderLink IP Gold uses DVI/I video ports that support both digital and
analogue video monitor connections. The AdderLink IP Gold automatically
converts between the two connection styles to ensure independence between
the locally connected video monitor, the remote user's video monitor and the
graphics capabilities of the host computer(s).

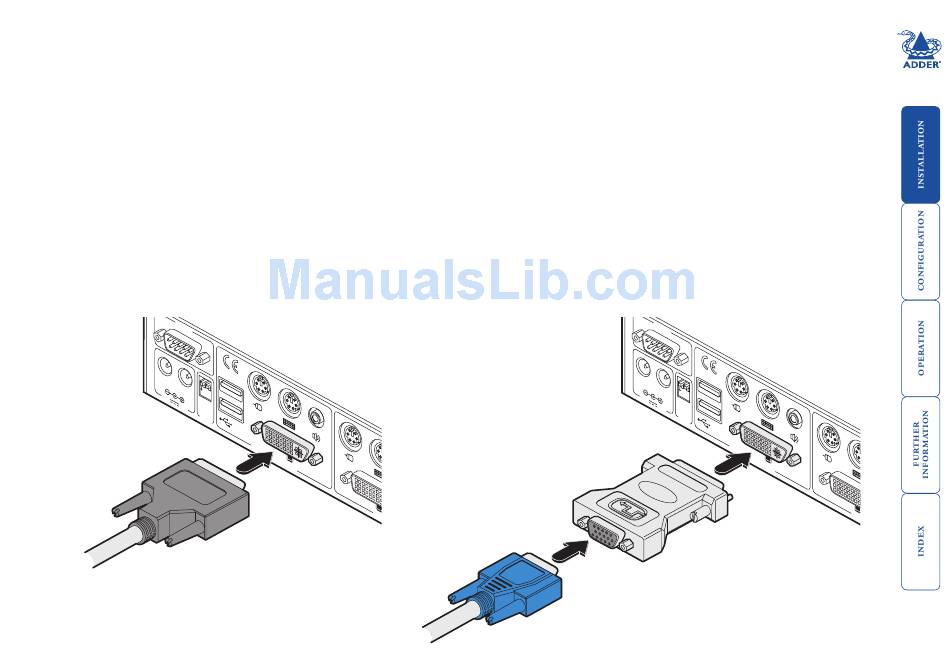

To connnect a local video monitor
1 Wherever possible, ensure that power is disconnected from the AdderLink IP
Gold.
2 As appropriate, position a suitable digital or analogue video monitor to the
DVI/I socket on the rear panel of the AdderLink IP Gold unit:
• Digital Connect the digital video monitor cable to the port labelled DVI
VGA within the KVMA CONSOLE section of the rear panel.
• Analogue Connect a converter module to the port labelled DVI
VGA within the KVMA CONSOLE section of the rear panel. Connect
the analogue video monitor cable to the converter module. In both
cases, ensure that the securing screws are used to maintain reliable
connections.
