Summary of Contents for Miele KF 7542 SN

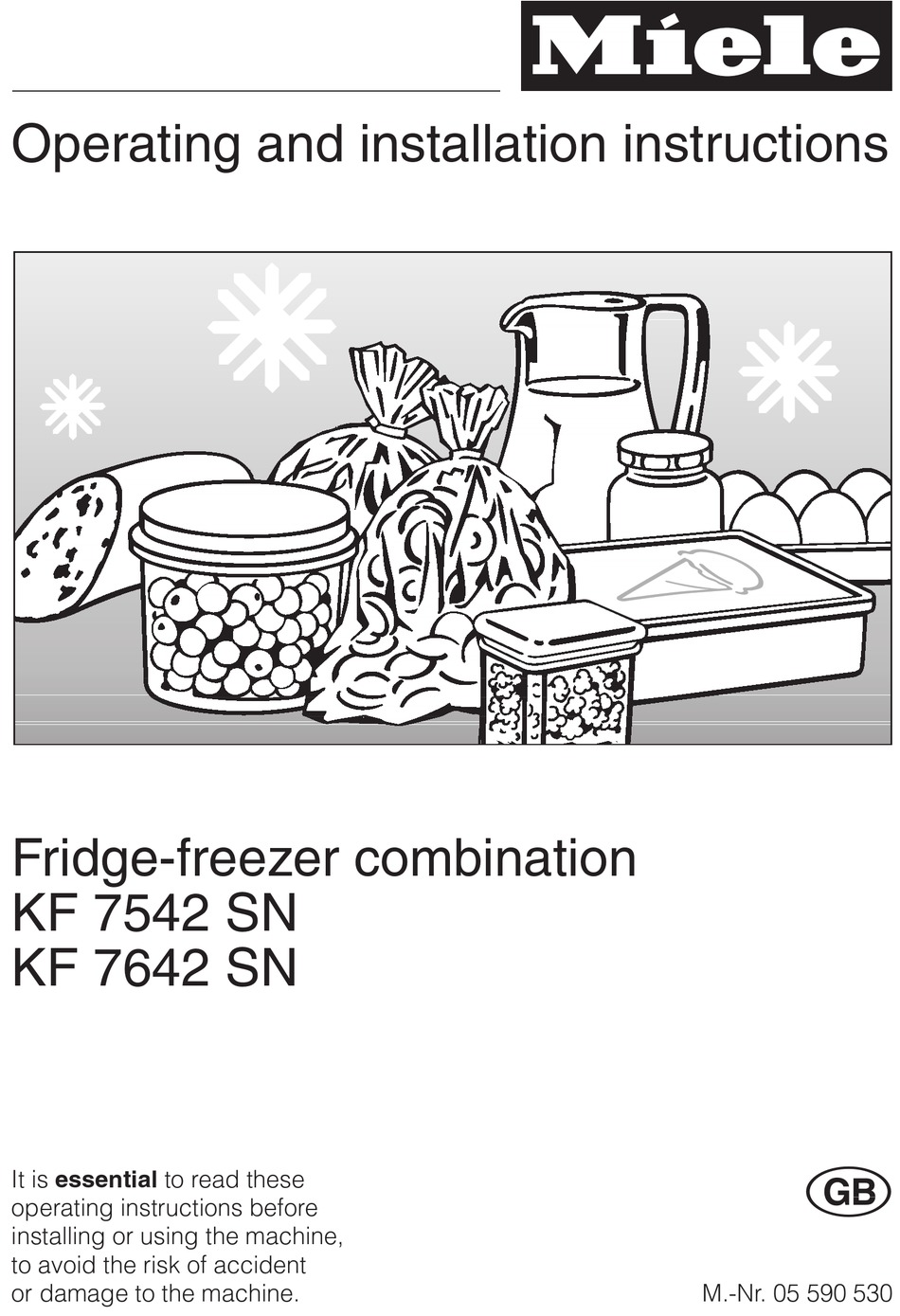

- Page 1 Operating and installation instructions Fridge-freezer combination KF 7542 SN KF 7642 SN It is to read these operating instructions before installing or using the machine, to avoid the risk of accident or damage to the machine. M.-Nr. 05 590 530...
-
Page 2: Table Of Contents
......... 4 . -
Page 3: Table Of Contents
Placing food in the freezer ........23 Freezer calendar . -
Page 4: Safety Lock
a Super cool button and indicator light f Freezer section temperature display b On button for the whole appliance g Temperature selector buttons On/Off button for independently for the freezer section switching the refrigerator section on Upper button: warmer and off Lower button: colder c Temperature selector buttons h Main switch for switching... - Page 5 k Butter and cheese compartment l Interior lighting m Egg trays n Shelves o Condensate channel and drain hole p Adjustable door shelves q Fruit and vegetable containers r Divider s Freezer drawers with freezer calendar t Marker system for frozen food...
- Page 6 Old appliances contain materials which can be reclaimed or recycled. Please The transport and protective packing contact your dealer, your waste collec- has been selected from materials which tion centre or scrap merchant about are environmentally friendly for disposal potential recycling schemes. and can normally be recycled.
- Page 7 This appliance complies with all rele- This appliance contains the coolant vant legal safety requirements. Inap- Isobutane (R600a), a natural gas propriate use can however lead to which is very environment friendly. Al- personal injury and damage to prop- though it is flammable, it does not dam- erty.
- Page 8 Before connecting the appliance to Installation work, maintenance and the mains supply make sure that repairs may only be carried out by the rating on the data plate corre- suitably qualified and competent per- sponds to the voltage and frequency of sons to ensure safety.
- Page 9 Do not refreeze thawed or partially Do not use sharp edged objects to thawed food. Defrosted food – remove frost and ice, should be used up as quickly as possi- – separate frozen foods and remove ble as food soon loses its nutritional value and goes off.
- Page 10 The appliance is designed for a use within certain climate ranges Before disposing of an old appli- (ambient temperatures). It must not be ance first make the door latch or used in ranges for which it is not de- lock unusable. signed.
- Page 11 ^ Clean the appliance interior and all accessories. Use warm water and a The refrigerator section can be little washing up liquid and dry with a switched off without having to switch off soft cloth. the freezer section. This is useful e.g. whilst on holiday.
- Page 12 ^ Repeat the same procedure as for activating the lock given above. The safety lock indicator light must go out in the temperature display. The ap- pliance can now be switched off at any time. ^ Press the alarm button. The alarm stops.
- Page 13 It is very important to set the correct temperature for storing food in the ap- For freezing fresh food and storing pliance. Micro organisms will cause frozen food for a long time a tempera- food which is not stored at the correct ture of at least is needed.
-
Page 14: In The Refrigerator
When pressing the buttons the follow- ing are shown in the display: The temperature can be adjusted: – When first pressed: The – in the refrigerator section from 2 °C flashes. to 11 °C – Each subsequent press of the but- –... - Page 15 , if – a different temperature is being set, The appliance is supplied with the brightness of the temperature display – the temperature in the appliance has set as low as possible. However, if the risen by several degrees, indicating door is opened, a setting changed or if that the appliance is warming up too the alarm is sounding, the temperature...
- Page 16 Your appliance has been fitted with a warning system which ensures that the temperature in the freezer cannot rise Once the set temperature has been unnoticed and to avoid energy being reached in the freezer section, the wasted if the door is left open. The alarm tone stops and the temperature is alarm system is always active.
-
Page 17: Super Cool
The super cool function can be used to Fresh food should be frozen as quickly rapidly reduce the temperature in the as possible. This way the nutritional refrigerator section to its lowest setting value of the food, its vitamin content, (depending on the room temperature). - Page 18 Switch the super freeze function on be- Depending on the amount of food fore putting fresh food into the freezer. placed in the freezer the super freeze function will switch off automatically af- When freezing small quantities of food ter approx. 30 to 60 hours. The super in the freezer, the super freeze function freeze indicator light will go out and the should be switched on...
- Page 19 Natural air circulation gives rise to dif- ferent temperature zones inside the re- – Not all fruit and vegetables should be frigerator section. Cold, heavy air sinks stored together in the same container to the lowest section of the appliance. as they give off natural gases which affect the perishability of other foods.
- Page 20 ^ Push the door shelf upwards then re- The shelves can be adjusted according to the height of the food. move it by pulling it forwards. ^ Pull the shelves forward as far as ^ Replace the door shelf at the re- they will go then lift them upwards to quired position.
- Page 21 the correct temperature and main- taining good standards of hygiene. Use the different cooling zones for storing food correctly. See the sec- tion on loading examples. Not all food is suitable for refrigeration. – Food must not touch the back wall of These include: the appliance.
-
Page 22: Maximum Freezing Capacity
To ensure that fresh food placed in the Only freeze fresh food which is in a freezer freezes through to the core as good condition. quickly as possible, the maximum freezing capacity must not be ex- ceeded. The maximum freezing capac- –... - Page 23 ^ Make a note of the contents and the – Do not season fresh foods or blanched vegetables before freez- date of freezing on the packaging. ing. Only season cooked food lightly before freezing but care should be taken as the taste of some spices al- ^ When freezing more than 2 kg of ters when frozen.
- Page 24 The freezer calendar on the freezer drawer gives the length of time which various foods can be stored for effec- tively. Where the storage time given on the packaging differs, follow the advice on the packaging. ^ Press down on the hook a under- neath the rear of the separator plate Markers serve as a reminder of how and pull the plate forwards and out...
-
Page 25: Packing
Frozen food can be defrosted in differ- ent ways: – in the microwave oven, – in the oven using the “Fan” or “De- frost” setting, – at room temperature, ^ Press down the release button on the – in the fridge. ice cube tray and fill the tray with wa- It is particularly important to ter. - Page 26 The freezer tray is useful for freezing The cool pack prevents the tempera- small items such as berries and vegeta- ture in the freezer rising too quickly in bles. They can be frozen individually the event of a power cut. and therefore maintain their shape Place the cool pack in the upper when defrosted.
-
Page 27: Defrosting
Condensate and frost can build up on This freezer is equipped with a the back wall of the refrigerator section "No-frost" system. The freezer section whilst it is in use. These are automati- defrosts automatically. cally removed and defrosted by the ap- The moisture generated by defrosting pliance. -
Page 28: Ventilation Gaps
The steam could attack the electrical components and cause a short cir- cuit. ^ A microfibre "E-Cloth" is available from the Miele UK Spare Parts De- The data plate located inside the ap- partment, Part Number 980 13530, pliance must not be removed. It con-... -
Page 29: Door Seals
^ Switch off the super freeze function by pressing the super freeze button. Do not use any oils or grease on the The indicator light will go out. door seals as these will cause the seals to deteriorate and become po- rous with time. - Page 30 The following faults can be corrected ^ Check that the fuse is not defective without contacting the Miele Service and that the mains fuse has not Department: blown. If it has, consult the Service department.
- Page 31 ^ The door has been opened too fre- quently, or a large amount of fresh There is a fault. Call the Miele Service food has been put in at once for Department. freezing.
- Page 32 If you still cannot remedy the fault having followed these suggestions, then contact the Miele Service De- partment. To prevent unecessary loss of tem- perature it is advisable not to open ^ Press the sides of the lamp cover in- the doors while waiting for the appli- ance to be serviced.
- Page 33 In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee please contact: – Your Miele Dealer – The Miele Service Department (see back cover for address). When contacting the Service Depart- ment, please quote the model and se- rial number of your appliance, both of which are shown on the data plate.
- Page 34 The appliance is supplied with a mains The wires in the mains lead are col- cable and moulded plug ready for oured in accordance with the following connection to an a.c. single phase code: 220 – 240 V 50 Hz supply. Green/yellow = earth The fuse rating is 13 amps.
- Page 35 (as applicable to the design of the plug fitted). The correct fuse rating of the replace- ment fuses that are ASTA approved to BS 1362 should be fitted. Replacement fuse covers may be purchased from your local electrical supplier, or Miele Service agent.
-
Page 36: Climate Range
Do not place any appliance which Air at the rear of the appliance gets gives off heat, such as a toaster or warm. To ensure sufficient ventilation microwave oven on top of this appli- the ventilation gaps must not be cov- ance, as this would increase the ap- ered over. - Page 37 The appliance is supplied right hand hinged. If left hand door hinging is re- quired follow the instructions below. ^ Open the lower appliance door. ^ Open the upper door, and pull it downwards and off. Take care not to lose the washers b.
- Page 38 ^ Remove covers l at the front and slide off to the side. ^ Unscrew handles j, and remove stoppers k. Refit on the opposite side of the door. ^ Slide covers l into position, making sure they engage correctly. ^ Fit the upper door in hinge pin a (re- member to use the washers b), then close the door.
- Page 39 The air inlet and outlet must not be covered or blocked in any way. They should be dusted on a regular basis. When built into a kitchen run (max. depth 580 mm) the appliance can be installed directly next to a kitchen furni- ture housing unit.
- Page 40 ^ Calculate Dimension A according to the number or freezer drawers in your appliance. See chart: 1040...
- Page 44 Alteration rights reserved / 0603 M.-Nr. 05 590 530 / V03 KF 7542 SN, KF 7642 SN This paper consists of cellulose which has been bleached without the use of chlorine.
