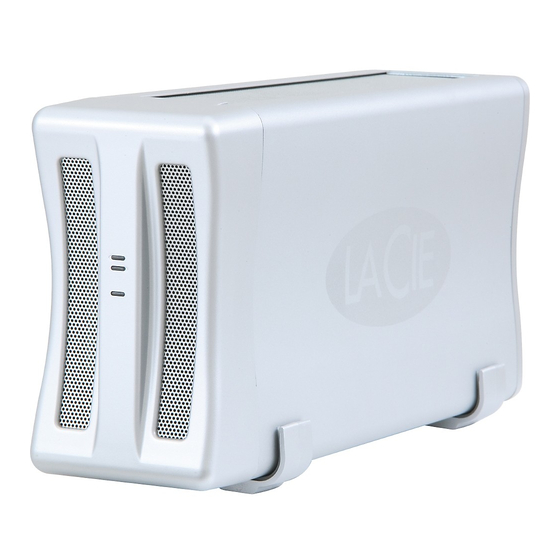

Summary of Contents for LaCie Two Big
-
Page 1: Table Of Contents
3.1. Set up the Two Big 3.2. Storage Policies 3.3. Changing the Storage Policy Configuration 3.4. Partitioning the LaCie Two Big Disk Drives 3.4.1. Partitioning the LaCie Two Big Disk Drives — Windows 3.4.2. Partitioning the LaCie Two Big Disk Drives — Mac 4. Maintaining Your LaCie Two Big 4.1. Removing/replacing a drive 4.2. Firmware updates 5. LaCie Two Big Front Panel LED Indicators 6. Tech Tips 6.1. Available Storage Capacity 6.2. File System Formats 6.2.1. File System Formats — Mac Users 6.2.2. File System Formats — Windows Users 6.3. Serial ATA II Questions and Answers 7. Understanding RAID and Two Big Storage Policies 7.1. RAID 0 (Fast) 7.2. RAID 1 (Safe) - Page 2 LaCie Two Big Hard Drive Table of Contents User Manual page 7.3. Concatenation (Big) 7.4. JBOD 8. Troubleshooting 8.1. LEDs and Fan 8.2. LaCie Two Big connection to LaCie SATA II 3Gb/s PCI-X Card 4E 9. Contacting Customer Support 10. Warranty...
-
Page 3: Lacie Two Big Hard Drive
LaCie Two Big Hard Drive Foreward User Manual page Copyrights Copyright © 2005 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie. Trademarks Apple, Mac, Macintosh and FireWire are registered trademarks of Apple Computer, Inc. Microsoft, Windows NT, Windows 98, Windows 98 SE, Windows 2000, Windows Millennium Edition and Windows XP are registered trademarks of Micro- soft Corporation. Sony and iLink are registered trademarks of Sony Electronics. Other trademarks mentioned in this manual are the property of their respective owners. Changes The material in this document is for information only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes. FCC Statement LaCie Two Big Hard Drive This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: Tested To Comply With FCC standards 1. The devices may not cause harmful interference 2. The devices must accept any interference received, including interference FOR HOME OR OFFICE USE that may cause undesired operation. - Page 4 LaCie Two Big Hard Drive Foreward User Manual page interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interfer- ence to the nearby radio and television reception. It is essential that only the supplied power cord be used. Modifications to this product not authorized by LaCie could void the FCC & Industry Canada regulations and negate your authority to operate the product. Canada Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Manufacturer’s Declaration for CE Certification We, LaCie, solemnly declare that this product conforms to the following European standards: Class B EN60950-1:2003, EN55022: 1998, EN55024:1998 +A1, EN61000-3-2: 2000, EN61000-3-3:2001 With reference to the following conditions: 73/23/EEC Low Voltage Directive 89/336/EEC EMC Directive This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a de- signed collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
-
Page 5: Precautions
LaCie Two Big Hard Drive Health & Safety Precautions User Manual page Health and Safety Precautions Only qualified persons are authorized to carry out maintenance on this device. • Read this User Manual carefully and follow the correct procedure when setting up the device. • Do not open a disk drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions. The disk drives shipped with your LaCie Two Big contain no user-serviceable parts. If it appears to be malfunctioning, have it inspected by a qualified LaCie Technical Sup- port representative. • Never expose your device to rain, or use it near water, or in damp or wet conditions. Never place objects containing liquids on the LaCie Two Big, as they may spill into its openings. Doing so increases the risk of electrical shock, short-cir- cuiting, fire or personal injury. • Make sure that the computer and LaCie Two Big are electrically grounded. If the devices are not grounded, there is an increased risk of electrical shock. Power requirements 100-240 V~, 1.5 A, 60-50 Hz, (Supply voltage fluctuations not exceeding ± 10% of the nominal, transient over-voltages according to over-voltage category II). General Use Precautions • Do not expose the LaCie Two Big to temperatures outside the range of 5° C to 35° C (41° F to 95° F); or to operational humidity beyond 5-80%, non-condensing, or non-operating humidity beyond 10-90%, non-condensing. Doing so may damage the LaCie Two Big or disfigure its casing. Avoid placing your LaCie Two Big near a source of heat or exposing it to sunlight (even through a window). Inversely, placing your LaCie Two Big in an environment that is too cold may dam- age the unit. • Rated cooling for altitudes up to 2000 meters. • Always unplug the LaCie Two Big from the electrical outlet if there is a risk of lightning or if it will be unused for an ex- tended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire. - Page 6 LaCie Two Big Hard Drive Health & Safety Precautions User Manual page products will disfigure and discolor the casing. Instead, use a soft, dry cloth to wipe the device. • Please replace defective hard drives only with a new drive provided by LaCie. For drive removal process, see section 4.1. Removing/Replacing a Drive. CAUTION: Drive warranty will be void if you replace the defective drive by a drive not purchased from LaCie. CAUTION: The LaCie Two Big’s warranty may be void as a result of the failure to respect the precautions listed above.
-
Page 7: Introduction
Congratulations on the purchase of your new LaCie Two Big. This high-performance, extremely flexible RAID (Redundant Array of Independent/Inexpensive Disks) subsystem is ideally suited for in- tegration with databases, imaging systems and e-mail and Web servers. RAID technology is one of the best means to protect your data, while providing greater data integrity and availability than stan- dard hard disk storage. With the ability to provide single error detection and redundant information to recover the original if a disk fails, a RAID system is an ideal means to safe-guard valuable data while also stream-lining performance. The LaCie Two Big is the ultimate approach to a flexible RAID solution, with its ability to manage various RAID levels (0, 1, Con- catenation, and JBOD). 1.1. What Your LaCie Two Big Can Do • Supports powerful RAID 0, 1, Concatenation, and JBOD • High-performance storage • The newest in Serial ATA (SATA) technology • Easy plug-and-play installation on PC or Mac IMpOrTANT INfO: Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. To help prevent the loss of your data, LaCie highly recommends that you keep TWO copies of your data; one copy on your... -
Page 8: Your Lacie Two Big
LaCie Two Big Hard Drive Your LaCie Two Big User Manual page 2. Your LaCie Two Big 2.1. Minimum System Requirements Hardware • For x86 platforms: Intel PIII 500MHz equivalent or faster • For Mac platforms: Mac G4 500MHz or faster • CD-ROM drive • 64 MB of RAM minimum • Mouse or compatible pointing device • External SATA cable connection between the Two Big and the host computer Software • For x86 platforms: Microsoft Windows 2000, Windows XP, or Windows Server 2003 with the latest Service Pack installed. • For Mac platforms: Mac OS 10.3.9 or later. -
Page 9: Package Contents
LaCie Two Big High-Speed SATA II RAID system with 2 hot-swappable drives LaCie Two Big Quick Install Guide (printed version) Quick Install Guide External power supply LaCie SATA II 3Gb/s PCI-X Card 4E PCI-X Card CD-ROM (includes User Manual, Quick Install Guide and Drivers) PCI-X Card Quick Install Guide (printed version) LaCie SATA II 3Gb/s PCI-X Card 4E Two plastic drive stands with rubber feet Quick Install Guide for drive stands IMpOrTANT INfO: Please keep your box. In the event that the LaCie Two Big RAID subsystem tower should need to be repaired or serviced, it must be returned in its original packaging. In the event that an individual disk should need to be repaired or serviced, please refer to section 4.1. Removing/Replacing A Disk. -
Page 10: Views Of The Drive
LaCie Two Big Hard Drive Your LaCie Two Big User Manual page 0 2.3. Views Of The Drive 2.3.1. Front View Drive LEDs – Indicate drive status System LED – Indicates system on/off status Panel removal tab Two Plastic stands with rubber feet Removable front panel 2.3.2. Front View without Front Panel Handles to remove the drives Drive slot 1 Drive slot 2 NOTE: For more information about these LEDs, see Chapter 5. LaCie Two Big Front Panel LED indica- TECHNICAl tors. -
Page 11: Rear View
LaCie Two Big Hard Drive Your LaCie Two Big User Manual page 2.3.3. Rear View Casing Fan Mode change rotary switch Power Switch Mode change confirmation button External SATA II 3Gb/s Port Power Supply Connector Plastic stands with rubber feet Lock hole CAUTION: To avoid overheating, the LaCie Two Big should be installed in a well-ventilated area and in such a way as to maintain sufficient airflow across the controller chips. Also ensure that the Ventilation Fan is not obstructed. Please use the included plastic stands and rubber feet which elevate the Two Big and allow for better heat dissipation. Environmental Requirements: Temperature: 0 – 35° C (32 – 95° F) Operation Humidity: 20 – 80%, non-condensing Storage Humidity: 10 – 90%, non-condensing... -
Page 12: Cables & Connectors
LaCie Two Big Hard Drive Your LaCie Two Big User Manual page 2.4. Cables And Connectors 2.4.1. Serial ATA II and eSATA Your LaCie Two Big uses the latest in SATA technology, featuring transfer rates of up to 3Gb/s. Both the Two Big and the LaCie SATA II 3Gb/s PCI-X Card 4E come equipped with eSATA ports and require the use of an external SATA cable, (included). SATA technology was originally developed to serve as an internal interface, delivering improved performance to internal connections. Soon after, eSATA, or external SATA was developed, allowing for the use of shielded cables outside the PC. eSATA technology was developed to be rugged and durable. eSATA connectors do not have the “L” shaped design of other SATA connectors. In addition, the guide features are vertically offset and reduced in size to prevent the use of unshielded internal cables in external applications. eSATA Cables And Connectors The cables and connectors used to attach Serial ATA drives to your computer are as follows: Serial ATA Port Serial ATA Cable... -
Page 13: Setting Up Your Lacie Two Big
LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 3. Setting Up Your LaCie Two Big This chapter covers the installation and configuration of your LaCie Two Big. A relatively easy process, you will be guided through the five following steps: 3.1. Set up the LaCie Two Big – This process helps you to get your LaCie Two Big plugged in and ready to use. 3.2. Storage Policies – Terms to know before you configure the Storage Appliance. The terms represent LaCie Two Big configuration options. 3.3. Changing the Storage Policy Configuration – Your LaCie Two Big comes preconfigured in the FAST storage... -
Page 14: Set Up The Two Big
LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 3.1. Set up the LaCie Two Big 1. Make sure that the PCI-X card delivered with your LaCie Two Big has already been installed. Please refer to the card’s Quick Install Guide for setup instructions. 2. Plug in the AC power adapter into the proper AC outlet (fig. A-1), and then turn on the Two Big using the switch on the back (fig. A-2). Fig. A 3. Plug one end of the external SATA cable to the external SATA connec- tor on your host computer. Connect the other end of the cable to the Two Big (fig. B). Fig. B NOTE: The LaCie Two Big default configuration is in fAST (rAID 0) mode. To change the storage TECHNICAl policy configuration mode, see sections 3.3. Storage Policies, 3.4. Changing the Storage Policy... -
Page 15: Storage Policies
LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 3.2. Storage Policies Before you use the LaCie Two Big Manager to configure the Storage Appliance, take a minute to study the following terms. The terms represent The LaCie Two Big configuration options or storage policies for mapping the physical to the virtual drives. You’ll choose from these policies during the configuration process. Your choice is important and impacts how best you can use the Storage Appliance. IMpOrTANT INfO: Your LaCie Two Big comes preconfigured in fAST (rAID 0) mode. For more informa- tion about RAID levels, see chapter 7. Understanding RAID and Two Big Storage Policies. fAST A storage policy configuration in which I/O processing is balanced evenly to all disks in a method known as strip- ing, equivalent to RAID 0. Fast offers the best performance in terms of speed but no redundancy of data. Striping increases storage operation speed by using several disk drives in parallel. Each portion of data is divided into segments which are written to different disks simultaneously. Striping provides improved performance but does not enhance reliability because there is no way to retrieve or reconstruct data stored on a failed drive. Please check the www.lacie.com LaCie Web site, , for updates of the User’s Manual reflecting product updates. -
Page 16: Changing The Storage Policy Configuration
LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 3.3. Changing the Storage Policy Configuration IMpOrTANT INfO: Changing the Storage Policy destroys data stored on the LaCie storage device. If you have saved data on the drives, back up data before following these steps. 1. Turn off the LaCie Two Big. 2. Insert a small, flat-blade screwdriver into the groove on the rotary SAfE switch and turn the screwdriver handle to the left or right to select a fAST MODE different mode (fig. A). Change JBOD Fig. A 3. Remove the screwdriver from the rotary switch and use it to depress the MODE Change button (fig. B) SAfE... - Page 17 LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 4.Turn on the LaCie Two Big while continuing to hold the MODE change button for 10 seconds before releasing it (fig. C) SAfE 5. If applicable, restore previously backed up data onto the appliance. fAST MODE Change JBOD Fig. C IMpOrTANT INfO: You must partition the disk drives after changing the storage policy configuration.
-
Page 18: Partitioning The Lacie Two Big Disk Drives
3.4. Partitioning the LaCie Two Big Disk Drives You must partition the drives after changing the Two Big configuration mode (SAFE, FAST, etc). During this process, you will format the drives. For more information about file system formats, see chapter 7.2 File System Formats. IMpOrTANT INfO: Before reconfiguring a virtual drive, back up your data and delete previously defined volume partitions. Do not, however, delete the partition that represents the LaCie processor (the “Not Initialized” disk with no capacity allocated to it). After you configure and partition the new virtual drives, restore the backed-up data to the new configuration. IMpOrTANT INfO: The disks shipped with the LaCie Two Big are formatted HFS+. To use the drives with Windows operating systems or for cross-platform use between Mac and PC, the drives must be reformatted. For more informa- tion, see section 7.2 File System Formats. 3.4.1. Partitioning the LaCie Two Big Disk Drives – Windows Users IMpOrTANT INfO: Remember, do not partition the disk that represents the LaCie Two Big processor (the “Not Initialized” disk with no capacity allocated to it). This example illustrates the fAST storage policy, which optimizes the LaCie Two Big for performance. 1. Right-click the My Computer icon on your desktop and select Manage from the pop-up window (fig. A). Fig. A... - Page 19 LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 2. Select Disk Management under Storage to open the Windows Disk Manager (fig. B). Fig. B 3. Right-click the configured disk’s unallocated space and select New partition. If the New Partition option is not available, select the disk and initialize it first (fig. C). Fig. C...
- Page 20 LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 0 4. Click Next to start the Partition Wizard (fig. D). Fig. D 5. Select the primary or Extended option and click Next (fig. E). Fig. E...
- Page 21 LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 6. Specify the partition size. By default, the partition occupies the entire volume. Click Next (fig. F). Fig. F 7. Assign a drive letter or mount path and click Next (fig. G). Fig. G...
- Page 22 LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 8. Name and format the partition and click Next (fig. H). Fig. H 9. Review the settings and click finish to create the logical partition (fig. I). Fig. I...
-
Page 23: Partitioning The Lacie Two Big Disk Drives - Mac
LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 3.4.2. Partitioning the LaCie Two Big Disk Drives – Mac Users IMpOrTANT INfO: Remember, do not partition the disk that represents the LaCie Two Big processor (the “Not Initialized” disk with no capacity allocated to it). This example illustrates the fAST storage policy, which opti- mizes the LaCie Two Big for performance. 1. Launch Disk Utility from the Applications / Utili- ties folder (fig. A). Fig. A 2. Select a configured disk and click the partition tab (fig. B, red boxes). - Page 24 LaCie Two Big Hard Drive Setting Up Your LaCie Two Big User Manual page 8. Click partition to acknowledge the warning (fig. C). Disk Utility mounts the created partition and represents it with an icon on the desktop. The icon is labeled with the partition name. Fig. C...
-
Page 25: Maintaining Your Lacie Two Big
LaCie Two Big Hard Drive Maintaining Your LaCie Two Big User Manual page 4. Maintaining Your LaCie Two Big 4.1. Removing/Replacing A Drive IMpOrTANT INfO: After continuous use of the LaCie Two Big, drives may be hot. Use caution when removing drives. In the event that an individual hard disk fails in the LaCie Two Big, please contact your LaCie reseller or LaCie Customer Support. Additional, spare hard disks may also be purchased (sold separately). Please replace a defective hard drive only by a new drive provided by LaCie. For drive removal and replacement process, please follow the steps below. CAUTION: Drive warranty will be void if you replace the defective drive by a drive not purchased from LaCie. 1. Remove the front panel by grasping the top corners, lifting slightly and then pulling forward on the panel removal tab. 2. Draw out the gray extraction handle by inserting your finger into the ring and pulling gently (fig. A). Fig. A 3. Grasp the hard drive. 4. Carefully extract the hard drive (fig. B). -
Page 26: Firmware Updates
LaCie Two Big Hard Drive Maintaining Your LaCie Two Big User Manual page 4.2. Install New Firmware (Upgrade) www.lacie.com LaCie may periodically offer firmware updates for the Two Big. Visit LaCie’s Web site, , for the latest firmware update. For the procedure, please contact the LaCie technical support. -
Page 27: Lacie Two Big Front Panel Led Indicators
LaCie Two Big Hard Drive LaCie Two Big LED Indicators User Manual page 5. LaCie Two Big Front Panel LED Indicators Both disk drives and the system-to-host connections have LEDs that reflect the drive and system states. The following table shows the different LED states and their indications. Table A: lED Display lights On (solid) Off Blinking flashing Drive 1 Drive is Drive is not being accessed Bad drive or disconnected Normal read/write activity rebuilding... -
Page 28: Tech Tips
LaCie Two Big Hard Drive Tech Tips User Manual page 6. Tech Tips 6.1. Available Storage Capacity A gigabyte (GB) means 1,000,000,000 bytes. In order to utilize a hard disk drive, it has to be formatted first. Formatting a disk consists of the following: the operating system erases all of the bookkeeping information on the disk, tests the disk to make sure that all of the sectors are reliable, marks bad sectors (i.e., those that are scratched) and creates internal address tables that it later uses to locate information. Once formatted, the actual available storage capacity varies, depending on operating environment, and is generally about 5 to 10% less than the non- formatted capacity. TECHNICAl NOTE: Storage capacity of an array depends on the RAID level. The capacity of a RAID array can be found by multiplying the capacity of the drives in the array by the number of non-redundant drives. -
Page 29: File System Formats
LaCie Two Big Hard Drive Tech Tips User Manual page 6.2. File System Formats 6.2.1. File System Formats – Mac Users IMpOrTANT INfO: If you will be sharing the hard drive between Mac and Windows operating The LaCie Two Big comes preformatted in HFS+ (Mac OS environments, you will want to follow these guide- Extended). This section will help you decide if you need to lines: reformat your Two Big. Mac OS X prefers that all partitions be the same Mac OS 10.x Users: format, therefore only the first FAT 32 partition is You may customize the drive by reformatting and/or par- guaranteed to mount. titioning the drive with separate file system formats. For optimal performance in Mac OS environments, format Mac OS 10.1.x... -
Page 30: File System Formats - Windows Users
LaCie Two Big Hard Drive Tech Tips User Manual page 0 6.2.2. File System Formats – Windows Users Since the LaCie Two Big comes preformatted in HFS+, the Mac Operating system, you will need to reformat your drive in FAT 32 or NTFS. The following information will hopefully make choosing one or the other a little easier. fAT 32 FAT is an acronym for File Allocation Table, which dates back to the beginnings of DOS programming. Originally, FAT was only 16 bits, but after the second release of Windows 95 it was upgraded to 32 bits, hence the name FAT 32. In theory, FAT 32 volume sizes can range from less than 1MB all the way to 2TB. It is the native file system of Windows 98 and Windows Me, and is supported by Windows 2000 and XP. When FAT 32 is used with Windows 2000 and XP, though, volume size is limited to 32GB (by the Windows partition utility, i.e. Disk Manager), and the individual file size is limited to 4GB. NTfS This acronym stands for New Technology Filing System, and it is the native file system for Windows NT, Windows 2000 and XP. NTFS offers several features that are not available with FAT 32; i.e. file compression, encryption, permissions, and audit- ing, as well as the ability to mirror drives and RAID 5 capabilities. The minimum supported volume size for NTFS is 10MB, with a maximum of 2TB, with no limit to file size. Volumes created in NTFS can only be directly accessed (not through shares) by Windows NT, Windows 2000 and XP, without resorting to help from third-party products. Guidelines for Choosing FAT 32 Or NTFS Use fAT 32 if: • You want to access your data on any Operating System - FAT 32 is compatible with Windows 98 SE, Me, 2000, XP, NT,... -
Page 31: Serial Ata Ii Questions And Answers
LaCie Two Big Hard Drive Tech Tips User Manual page 6.3. Serial ATA II Questions and Answers What is Serial ATA II? The Serial Advanced Technology Attachment (ATA) II marks the latest rung on the evolutionary ladder of SATA technology. SATA II can deliver data at 300MB/s, twice as fast as its SATA predecessor and more than twice as fast as the Parallel ATA/ IDE (Integrated Drive Electronics) interface, which has long been used to connect peripheral devices to the computer. Initial Serial ATA technology removed the performance bottleneck of the Parallel ATA specification, and follows a clearly defined road-map to greater and greater data transfer rates and feature improvements. Deriving its name from the way that it transmits signals, in a single stream, or serially, Serial ATA operates in a point-to- point topology. This connectivity methodology delivers the entire available interface bandwidth to each device, allowing each device to operate at its maximum throughput, and provides direct communication between the device and the system at any time, reducing arbitration delays associated with shared bus topologies. What are the key differences between Serial ATA and Serial ATA II technology? Serial ATA (SATA) II allows twice the transfer speed of Serial ATA and can support what’s called a port multiplier. With a... - Page 32 LaCie Two Big Hard Drive Tech Tips User Manual page own drive head’s angular and rotational position, the drive selects a data transfer from the queue that will minimize both its seek and rotational latencies. • Simplified structure: Serial ATA utilizes a more efficient signaling voltage (250mV vs. 5V for Parallel ATA), and much smaller, thinner and compact cables and connectors. Due to the simplified cabling (the reduction in the number of pins and wires), the number of fault possibilities decreases. • Seamless integration: Serial ATA maintains register and software compatibility with Parallel ATA, and should be transpar- ent to both the BIOS and operating system. Simply add more Serial ATA links to increase the number of connectivity points in your system. What are the ideal uses of Serial ATA? Although the specification supports all ATA and ATAPI devices (i.e. CD, DVD, tape drives, etc.), and delivers superior per- formance than both Hi-Speed USB 2.0 and FireWire/IEEE 1394, external Serial ATA connectors are intended for storage devices. Serial ATA works best in storage environments that require high data throughput to deliver large files quickly and efficiently, maximizing the storage systems utilization and enhancing overall productivity. Due to its performance, reliability, scalability and cost-effectiveness, Serial ATA can be implemented in a wide-range of set- tings, from desktop usage to network storage applications.
-
Page 33: Understanding Raid And Two Big Storage Policies
LaCie Two Big Hard Drive Understanding Storage Policies User Manual page 7. Understanding RAID and Two Big Storage Policies Your LaCie Two Big supports several different RAID levels: 0, 1, Concatenation, and JBOD. This section will help you decide which RAID level is right for your application. The storage policies of the LaCie Two Big — Safe, Fast, Big and JBOD are combinations of these RAID levels. 7.1. Fast (RAID 0) Striped Disk Array Without fault Tolerance Also called striping, this level offers high transfer rates and is ideal This diagram represents a RAID 0 array, consisting of for large blocks of data where speed is of the utmost importance. four disks, which are RAID 0 implements a striped disk array, where all of the hard connected to the Controller. - Page 34 LaCie Two Big Hard Drive Understanding Storage Policies User Manual page recommended Uses • Video production and editing • Image editing • Pre-press applications • Applications requiring high-bandwidth...
-
Page 35: Raid 1 (Safe)
LaCie Two Big Hard Drive Understanding Storage Policies User Manual page 7.2. Safe (RAID 1) Mirroring and Duplexing Also called mirroring, this level makes a duplicate write on a sec- ond or “mirror” disk every time data is written to a primary disk. If This diagram represents a RAID 1 array, consisting of one disk crashes, there is an ideal backup (fig. A). four disks, which are connected to the Controller. Data blocks are duplicated, Using two controllers, or duplexing, can speed the data I/O rate or mirrored in each pair of by writing to both drives at the same time. When using just a single disks in the array. controller operations are slowed because data is written first to the data drive and then to the mirrored drive. CONTROLLER The storage capacity of a two-disk RAID 1 array is equal to the storage capacity of a single disk because the same data is dupli- cated on both disks. However, the 100 percent redundancy of data does not require a rebuild in the case of a drive failure. In that case, data can be copied to a replacement disk. -
Page 36: Concatenation (Big)
LaCie Two Big Hard Drive Understanding Storage Policies User Manual page 7.3. Big (Concatenation) Maximum Capacity Solution A concatenated volume, or concatenation, is a volume whose data CONTROLLER is organized serially and adjacently across components, forming one logical storage unit. If you have 3 6GB disks in a concatena- tion, you’ll have one 18G virtual disk. You’ll write data to the first drive until it fills, then fill the second, etc (fig. A). Disk A A concatenation enables you to dynamically expand storage capac- ity and file system sizes online. With a concatenation you can add components even if the other components are currently active. Disk B Characteristics & Advantages • In case of disc failure, other disks are unaffected. • Combine the capacities of two drives into one large volume. Fig. A... -
Page 37: Jbod
LaCie Two Big Hard Drive Understanding Storage Policies User Manual page 7.4. JBOD Just a Bunch of Disks JBOD, or Just a Bunch of Disks, is not a numbered RAID level. However, CONTROLLER it is similar because it is an Array of Inexpensive Disks. In a JBOD configuration, each connected drive will appear as separate hardware entries in the computer’s drive utility software. A JBOD array Disk A Disk B is the simplest storage policy available to the Two Big but provides no data redundancy (fig. A). Fig. A... -
Page 38: Troubleshooting
LaCie Two Big Hard Drive Troubleshooting User Manual page 8. Troubleshooting In the event that your LaCie Two Big is not working correctly, please refer to the following checklist to find out where the problem is coming from. If you have gone through all of the points on the checklist and your drive is still not working cor- www.lacie.com rectly, please have a look at the FAQs that are regularly published on our Web site – . One of these FAQs may provide an answer to your specific question. You can also visit the drivers pages, where the most recent software updates will be available. If you need further assistance, please contact your LaCie reseller or LaCie Technical Support (see chapter 9. Contacting Customer Service for details). TECHNICAl NOTE: Manual Updates LaCie is constantly striving to give you the most up-to-date, comprehensive User’s Manuals available on the market. It is our goal to provide you with a friendly, easy-to-use format that will help you quickly install and utilize the many functions of your new device. If your manual does not reflect the configurations of the product that you purchased, please check our Web site for the most current version available. -
Page 39: Leds And Fan
LaCie Two Big Hard Drive Troubleshooting User Manual page 8.1. LEDs and Fan problem Solution Confirm power at the outlet, verify power connection, and try an alternate power cable. System lED is off. Install new firmware. Evaluate the drive for failure and replace if needed. Drive 1 or Drive 2 lED is blinking. connection below. See HBA A Safe virtual drive is rebuilding on the physical drive. Drive 1 or Drive 2 lED is on continuously. -
Page 40: Lacie Two Big Connection To Lacie Sata Ii 3Gb/S Pci-X Card 4E
LaCie Two Big Hard Drive Troubleshooting User Manual page 0 8.2. LaCie Two Big connection to LaCie SATA II 3Gb/s PCI-X Card 4E problem Solution Verify the System LED status to confirm power. Verify the eSATA connection and try an alternate eSATA cable. Verify HBA BIOS recognizes empty LaCie Two Big. Turn off PCI bus power save mode in the host BIOS. laCie Two Big is not recognized Troubleshoot the HBA: by HBA BIOS. • Connect to an alternate SATA port. -
Page 41: Contacting Customer Support
LaCie Two Big Hard Drive Contacting Customer Support User Manual page 9. Contacting Customer Support Before You Contact Technical Support 1) Read the manuals and review section 8. Troubleshooting. 2) Try to isolate the problem. If possible, make the drive the only external device on the CPU, and make sure that all of the cables are correctly and firmly attached. If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can’t get your LaCie www.lacie.com drive to work properly, contact us at . Before contacting us, make sure that you are in front of your computer and that you have the following information on hand: • Your LaCie drive’s serial number • Operating system (Mac OS or Windows) and version • Computer brand and model • Names of CD or DVD drives installed on your computer • Amount of memory installed • Names of any other devices installed on your computer... -
Page 42: Lacie Technical Support
LaCie Two Big Hard Drive Contacting Customer Support User Manual page LaCie Technical Support LaCie Asia, Singapore, and Hong Kong LaCie Australia Contact us at: Contact us at: http://www.lacie.com/asia/contact/ http://www.lacie.com/au/contact/ LaCie Belgium LaCie Canada Contact us at: Contact us at: http://www.lacie.com/be/contact/ http://www.lacie.com/caen/contact/ (English) LaCie Denmark LaCie Finland Contact us at: Contact us at: http://www.lacie.com/dk/contact http://www.lacie.com/fi/contact/ LaCie France LaCie Germany Contact us at: Contact us at: http://www.lacie.com/fr/contact/ http://www.lacie.com/de/contact/ LaCie Italy... -
Page 43: Warranty
LaCie Two Big Hard Drive Warranty User Manual page 10. Warranty LaCie warrants your LaCie Two Big and Drive Bays against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective LaCie Two Big and/or Drive Bay(s). In the event of a drive failure and in absence of a spare drive bought from LaCie at initial product purchase, please contact your LaCie reseller or LaCie customer support for drive replacement procedure. This warranty is void if: • The LaCie Two Big was operated/stored in abnormal use or maintenance conditions; • The LaCie Two Big is repaired, modified or altered, unless such repair, modification or alteration is expressly authorized in writing by LaCie; • The LaCie Two Big was subjected to abuse, neglect, lightning strike, electrical fault, improper packaging or accident; • The LaCie Two Big was installed improperly; • The serial number of the LaCie Two Big or an individual Drive Bay is defaced or missing; • The broken part is a replacement part such as a pickup tray, etc. • The tamper seal on the LaCie Two Big or an individual Drive Bay casing is broken. The warranty of the drives inside the LaCie Two Big is void if: • One or two of the hard disks have been removed and replaced by any hard disk other than a drive provided by LaCie. For drive removal/replacement process, see section 4.1. Removing/Replacing a Drive. LaCie and its suppliers accept no liability for any loss of data during the use of this device, or for any of the problems caused as a result. LaCie will not, under any circumstances, be liable for direct, special or consequential damages such as, but not limited to, damage or loss of property or equipment, loss of profits or revenues, cost of replacement goods, or expense or inconve- nience caused by service interruptions. Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. Under no circumstances will any person be entitled to any sum greater than the purchase price paid for the drive. - Page 44 LaCie Two Big Hard Drive Warranty User Manual page To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie product’s serial number, and you may be asked to furnish proof of purchase to confirm that the drive is still under warranty. All systems returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.
