Summary of Contents for TerraTec Cameo 400 AV mobile
- Page 1 Manual (English) Version: 12.11.03...
- Page 2 CE Declaration TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany hereby declare that the product: VideoSystem Cameo 400 AV mobile to which this declaration refers is in compliance with the following standards or standardizing documents: 1. EN 55022 Class B 2.
-
Page 3: Table Of Contents
You're the director!.......................5 That's the wrap? ........................5 Product illustration ....................... 6 Using the Cameo 400 AV mobile PCMCIA card for the first time ..........6 Installing the drivers......................7 Digital signature in Windows XP and 2000 ................9 Installed drivers should look like this.................. 9 Installing the software ......................10... -
Page 4: Preface
Cameo 400 AV mobile. You have just purchased one of the most powerful products available for video applications. We're convinced that the Cameo 400 AV mobile will be both very useful and a lot of fun for you for a long time to come. -
Page 5: Product Description
Transform your notebook into a mobile video editing studio The Cameo 400 AV mobile lets you turn your notebook into a mobile studio for digitizing and editing your videos. Simply connect a video source such as a video recorder, DVD player, camcorder or sat receiver to your notebook via the PCMCIA interface. -

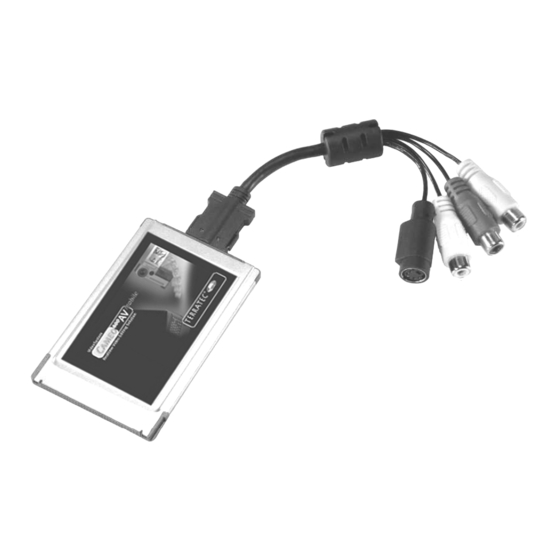

Page 6: Product Illustration
Connect the multi-connector cable to the Cameo 400 AV mobile. Insert the included installation CD in your CD drive. Insert the Cameo 400 AV mobile, connector strip first, into the PCMCIA slot of your computer until the card is firmly seated. Your notebook will recognize the new hardware and launch the installation wizard. -
Page 7: Installing The Drivers
Installing the drivers Driver installation under Windows XP Please choose “Install from a list or specific location (Advanced)”. Please click “Next”. Select the upper item and browse your installation CD. Cameo 400 AV mobile (English) - Page 8 Driver installation under Windows 2000 Let your system search for a suitable driver. Confirm by clicking “Next”. Select your CD-ROM drive and click “Next”. Cameo 400 AV mobile (English)
-
Page 9: Digital Signature In Windows Xp And 2000
To open the Device Manager, press and hold the Windows key (with the Windows logo) and press the Pause key. This opens the System Properties window. Click the “Hardware” tab and then the “Device Manager” button. Cameo 400 AV mobile (English) -
Page 10: Installing The Software
Installing the Cameo 400 AV mobile plug-in This plug-in gives you direct access to the Cameo 400 AV mobile from the Ulead software. Install it from the Installation CD and it will be available from within the video editing software. -
Page 11: The Software In Detail
The software in detail Cameo 400 AV mobile application Use this simple tool to record and play back your videos. Repeat Recording Rewind Sound on/off Playback Snapshot Pause Volume Fast forward Settings Stop Cameo 400 AV mobile (English) - Page 12 Video recording Connect your analog video source to the Cameo 400 AV mobile. When using the composite video input (w), a preview will be displayed in the preview window. The display will show the video input and quality level you have selected.
- Page 13 (C). Select the folder in which you have saved the video. Editing your video files and creating DVDs or video CDs is no problem with the included Ulead applications. We have developed a plug-in to let you access the Cameo directly from Ulead VideoStudio. Cameo 400 AV mobile (English)
-
Page 14: Cameo 400 Av Mobile Plug-In In Ulead Videostudio 7
Specify the quality of your recording here. As always, the higher the bit rate, the better the quality, and the larger the file size. However, the Cameo 400 AV mobile also delivers surpris- ingly good results at low bit rates. -
Page 15: Service At Terratec
Service at TerraTec. Nothing seems to work!—This can happen even on the best systems. If this happens to you, the TerraTec team is happy to offer its service and support. Hotline, Internet. If you have a tough problem—where you cannot solve the problem yourself, the support in this manual doesn't resolve the problem, and your dealer can't fix it either—please contact us... -
Page 16: Broken
Please use a sufficiently strong and padded mailing package. We recommend using the original package. Remember that the card is a sensitive electronic component. · Be sure to include enough postage—we will cover for the postage for the return to you. Cameo 400 AV mobile (English) -
Page 17: General Terms And Conditions Of Service
The dispatcher pays all costs associated with shipping and insurance for the goods for repair to TerraTec Electronic GmbH. If the goods are covered by warranty, TerraTec Elec- tronic GmbH will pay the shipping costs for returning repaired goods. COD shipments will not be accepted for organizational reasons. -
Page 18: Glossary
MiniDV is designed for the consumer sector and supports playing times of up to one hour. The DV format used in the professional sector supports playing times of up to three hours. Cameo 400 AV mobile (English) - Page 19 Luma keying – Unlike chroma keying, the transparency of the video is determined on the basis of brightness in luma keying. Luminance – Luminance refers to brightness in -> YUV. (Y) Main memory – see RAM Cameo 400 AV mobile (English)
- Page 20 VCD. An SVCD generally can contain 45-50 minutes of video material. The bit rate (audio and video) of an SVCD may not exceed 2.6 Mbps. SVCDs can be viewed using many standalone DVD players. Cameo 400 AV mobile (English)
- Page 21 YIQ is used for -> NTSC, for example. YUV – YUV is the designation for a color space characterized by a brightness component -> luminance (Y) and two color components -> chrominance (U, V). Cameo 400 AV mobile (English)
