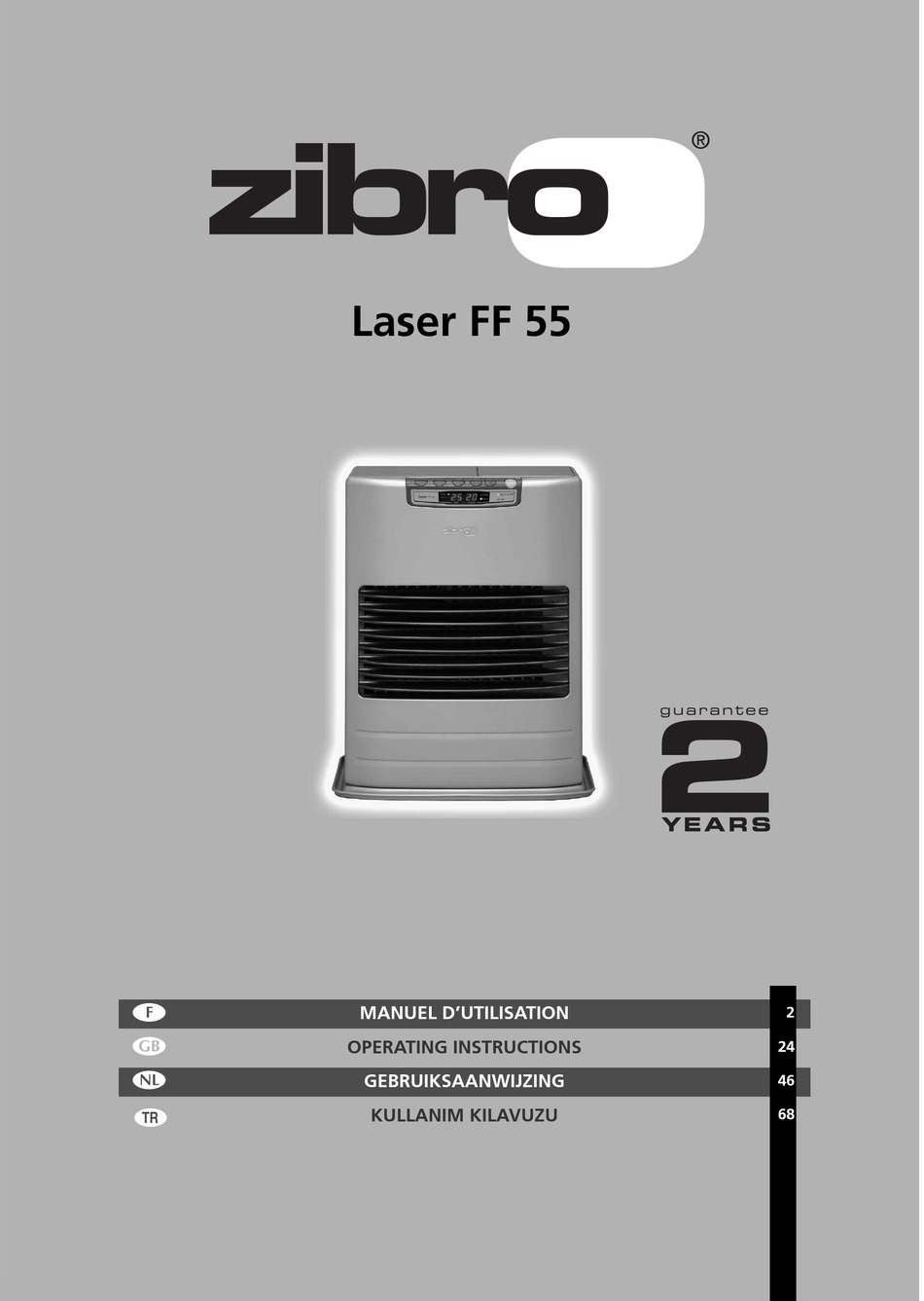

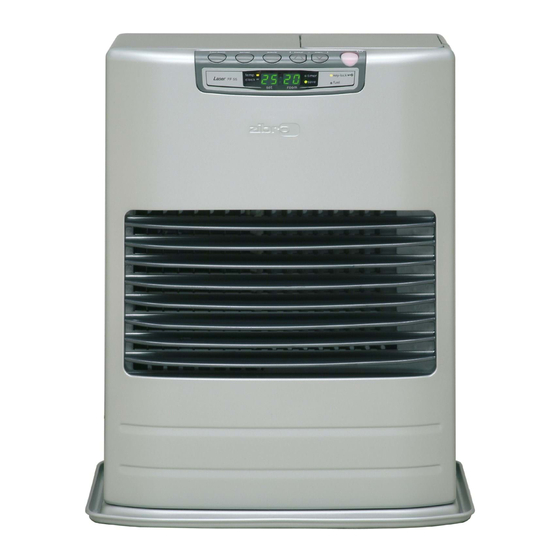

  • Page 1 Laser FF 55 MANUEL D’UTILISATION OPERATING INSTRUCTIONS GEBRUIKSAANWIJZING KULLANIM KILAVUZU...

  • Page 2: Operating Instructions

    OPERATING INSTRUCTIONS Dear Sir, Madam, Congratulations with your purchase of the Zibro, the number one brand among movable heaters. You have purchased a first-class quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly.
  • Page 3 SUMMARY Chapter 1: INSTALLATION Chapter 2: OPERATION Chapter 3: ERROR MASSAGES Chapter 4: WARRANTY PROVISIONS...

  • Page 4: What You Need To Know In Advance

    THE RIGHT FUEL Only use Class C1 paraffin fuel in accordance with BS2869: Part 2, or equivalent. Your Zibro heater has been designed for use with high-quality water-free pure paraffin oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and proper burning.

  • Page 5: Chapter 1, Installation

    Chapter 1, INSTALLATION 1. Introduction Recommended tool kit This chapter contains all the relevant information, 1. Crosshead screwdriver specifically: 2. Steel tape measure 3. Felt-tip pen or pencil • Installation specifications 4. Cement for exterior use • List of installation tools 5.
  • Page 6 Only the standard feed and exhaust system is supplied with the heater. More than 60 cm More than 10 cm More than 30 cm More than 30 cm More than 1.5 m Laser FF 55 Fig. 1-1: Gaps heater/exhaust pipe...
  • Page 7 Chapter 1, INSTALLATION Flammable object Flammable object Not less than 60 cm Non-flammable Not less object Not less than 45 cm than 45 cm Not less than 60 cm 45°C Not less than 30 cm Exhaust pipe Not less than 20 cm Fig.
  • Page 8 Achterkant van de Back of the heater kachel Centre of the feed-through component Laser FF 55 108 mm Fig. 1-3 Template Do not remove any components from the heater. Always contact your dealer if repairs are required. If the electricity cable is damaged, this may only be replaced with type H05 VV-F and by a recognised installer.
  • Page 9 Standard installation parts The following list of standard installation parts is sup- plied with your heater. It may be necessary to order extra parts from your Zibro dealer if other installation methods are required. Wall hooks (2 set) Pipe holder (1)
  • Page 10 Chapter 1, INSTALLATION Right-angled exhaust pipe bend (1) Right-angled air hose (2) Flexible air hose (1) Hose clip (2) Manual fuel pump (1) Fuel cap cover (1)
  • Page 11 Chapter 1, INSTALLATION 1. For the standard installation, use the template sup- Use cellotape or small nails to attach the template to plied to position the hole for the exhaust pipe correctly. the desired position on the wall (see Fig. 4). Tape Fig.
  • Page 12 Chapter 1, INSTALLATION 3. Install the inner flue pipe. a. For wall thickness 230~320mm. From inside the room, insert the inner flue pipe through the hole. Make sure the arrow on the inner flue pipe is pointing up. Secure the inner flue pipe to the wall with the three wood screws. (See Fig. 7) inside Outsida 230~320mm...
  • Page 13 Chapter 1, INSTALLATION c. From outside, insert the outer flue pipe through the hole. Secure the outer flue pipe to the wall by turning it clockwise. This locks the two halves together (See Fig. 9). IMPORTANT: Make sure the arrow on the outer flue pipe frange is pointing up. Make sure to secure the outer flue pipe well.
  • Page 14 Chapter 1, INSTALLATION 5. Move the heater into position. Attach the right-angled exhaust pipe bend to the outlet of the exhaust pipe and attach the right-angled exhaust pipe bend to the inlet. Make sure all connections are tight (See Fig. 11).
  • Page 15 Chapter 1, INSTALLATION CHECKLIST • Check whether the heater has been connected to a suitable socket. • Ensure that the fuel is free of water or other contaminants. • Check outside the building in order to ascertain that there is no fuel or obstructions to the free circulation of air in the area immediately adjacent to the exhaust pipe.

  • Page 16: Chapter 2, Operation

    This chapter provides all the information required for the operation of the Laser heater system. All specified operating procedures must be carried out in the order in which they are described. 2. Laser FF 55 heater specifications Medium High Heat yield (W)
  • Page 17 Chapter 2, OPERATION 3. Operating elements and lights 2. Adjustment buttons 5. Timer button (time and temperature) 4. Save button 2. Adjustment buttons 6. Childproof lock button (time and temperature) 2. Adjustment buttons 2. Adjustment buttons (time and temperature) (time and temperature) 1.
  • Page 18 Chapter 2, OPERATION 4. Prior to use [4] Lock the switch button on top of the pump (turn Step 1: Filling fuel clockwise). • Do not fill the removable tank in the living [5] Squeeze the pump a few times, until fuel starts room, but in a more suitable place (there flowing into the removable tank.
  • Page 19 Chapter 2, OPERATION function (the CLOCK light and the information perature using the button on the right ( min.) to set display will start blinking). Next, set the hours using the temperature to a higher setting and the button on the button on the left ( hour) and the minutes the left (...
  • Page 20 Chapter 2, OPERATION 6. Timer operation 8. Childproof lock The timer allows you to switch on the heater automati- The childproof lock can be used to prevent children cally at a preset time. accidentally changing the heater settings. When the In order to switch on the timer, the correct time must heater is burning and the childproof lock is on, the have been set and the heater should be off.
  • Page 21 Also disconnect the plug from the mains. Circulation of air in the room does not start immediately Your Zibro needs hardly any maintenance. It is, however, when the heater is lit. important that you clean the air filter with a vacuum clean- To prevent unpleasant cold draughts, the ventilator only er and the grid with a damp cloth, both on a weekly basis.

  • Page 22: Chapter 3, Error Messages

    Chapter 3, ERROR MESSAGES CODE INFORMATION WHAT TO DO Power interrupted. Re-ignite the heater Ignition safety feature is activated. Contact your dealer Extinguished during operation. Contact your dealer Blower motor malfunction. Contact your dealer E-12 Overheating safety feature is activated. Clean the air filter and remove dust.
  • Page 23 Chapter 1, INSTALLATION Your heater comes with a 24-months warranty starting Highly inflammable substances may induce on the date of purchase. Within this period all defects uncontrollable burning, causing flames to in material or workmanship will be repaired without break out. Should this happen, never try to any charge.
  • Page 24 +44 1606 837787 tel: +43 7434 44867 fax: +44 1606 837757 fax: +43 7434 44868 email: sales@scottmail.co.uk email: pvgaustria@zibro.com > ITALIA e BELGIË PVG Italy SRL PVG Belgium NV/SA Via Niccolò Copernico 5 Industrielaan 55 50051 CASTELFIORENTINO (FI) 2900 SCHOTEN tel:...
