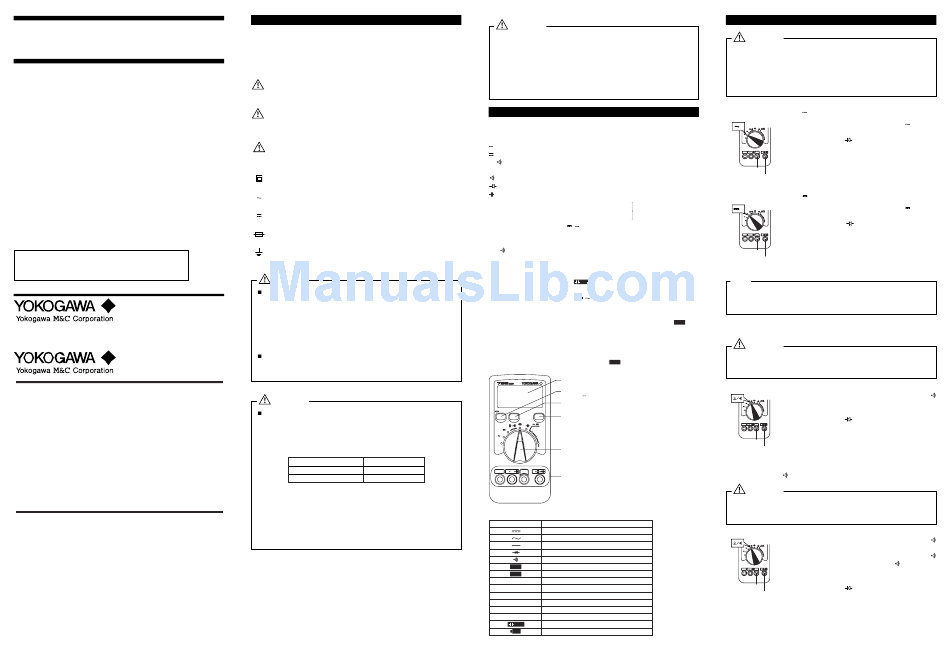

Safety Precautions
Various symbols are used on the instrument and thoughout this manual to ensure safe use of the
product and to protect against possible hazards or damage.
The following safety symbols are used where app. opriate.
Read the explanations carefully and familiarize yourself with the symbols before reading the
text.
This symbol indicates that misuse of the instrument could result in in-
WARNING
jury or death of personnel.
This symbol indicates that misuse of the instrument could result in in-
CAUTION
jury of personnel or damage to the instrument.
The instrument and this manual also use the following safety symbols:
Caution
This symbol indicates that the operator must refer to an explanation in the
instruction manual in order to avoid the risk of injury or death of personnel or
damage to the instrument.
Double Insulation
This symbol indicates double insulation.
Alternating current
This symbol indicates AC voltage/current.
Direct current
This symbol indicates DC voltage/current.
Fuse
This symbol indicates a fuse.
Earth TERMINAL
This symbol indicates ground.
WARNING
To avoid electric shock!
• Do not use deteriorated or damaged testing leads. Check testing leads before use.
• Do not use the instrument if there is any damage to the casing or when the casing is
removed.
• Disconnect the instrument from the circuit under test before opening the casing to re-
place the batteries or for any other reason.
• Avoid using the instrument if it has been exposed to rain or moisture or if your hands
are wet.
To avoid electrical shock or fire!
Do not use the instrument in an atmosphere where any flammable or explosive gas is
present.
WARNING
To avoid damage to instrument or electric shock!
The restrictions on the maximum voltage level for which the 732 01, 02, 03 and 04
multimeters can be used, depend on the over-voltage categories specified by the safety
standards. These category specifications are formulated to protect operators against
transient impulse voltages in power lines.
Over-voltage Category (CAT.) Maximum Input Voltage
II
III
Over-voltage category I (CAT. I):
Covers the path from a mains outlet, through a power transformer, to a circuit in the
KIM3E-2002.7
transformer's secondary stage.
Over-voltage category II (CAT. II):
Covers a primary-stage circuit of equipment connected to a mains outlet.
Over-voltage category III (CAT. III):
Covers the path from an indoor distribution switchboard to a mains outlet.
CAUTION
• Do not use the multimeter near noise-emitting equipment or where there may be a
sudden temperature change. Otherwise, the instrument may produce an unstable read-
ing or errors.
• Do not wipe the instrument using any organic solvent such as benzine or paint thinner.
Otherwise, the front panel may be damaged or discolored. When cleaning the instru-
ment, use a dry cloth.
• Do not leave the multimeter exposed to direct sunlight or in a hot and humid location
such as the inside of a car, for any prolonged length of time.
Components
1) Function Switch
Turns off the power or selects the measurement mode.
OFF: Turns off the power.
V: AC voltage measurement
V: DC voltage measurement
Ω/ : Resistance measurement and continuity check (732 02/03)
Ω : Resistance measurement (732 01/04)
: Continuity check (732 01/04)
: Diode test
: Capacitor check (732 02/03)
µA: DC/AC current measurement in micro-amperes
mA: DC/AC current measurement in milli-amperes
A: DC/AC current measurement in amperes
2) SELECT key (732 02/03) or
This function is not supported on the 732 04 multimeter.
This key is enabled only if the multimeter is in one of the following measurement modes.
• Ω/ : In this mode, the button selects between the resistance measurement and continu-
ity test.
• : In this mode, the button adjusts the stray capacitance of the testing leads and the
multimeter itself to zero.
(The display shows the
• µA/mA/A: In this mode, the button selects between the DC and AC modes.
* The 732 01 multimeter comes with the
only to select between the DC and AC modes in the current measurement mode.
3) RANGE key * This function is not supported on the 732 04 multimeter.
Allows the operator to select the measuring range manually (the display shows the
bol).
To return to the normal auto-ranging mode, hold down this button for at least one second until
the display shows "AUTO."
4) AUTO-H key
Set up AUTO HOLD function. (the display shows the
<5> Display
DIGITAL
MULTIMETER
<2> SELECT key (732 02/03)
<3> RANGE key
SELECT RANGE AUTO.H
<4> AUTO.H key
/
/
400/4000
V
uA
40/400
V mA
4/10
OFF A
<1> Function switch
600 V
A µA mA COM V
Input terminal
300 V
5) Display View with All Elements Turned On
Symbol and Unit
Lit when in DC-mode measurement
Lit when in AC-mode measurement
Polarity indicator lit when the polarity is negative
Lit when in diode test
Lit when in continuity check
AUTO HOLD indicator
A • H
R • H Manual range indicator
AUTO Auto range indicator
AUTO POWER OFF AUTO POWER OFF indicator
nF, µF Unit for capacitance measurement
mV, V Unit for voltage measurement
Unit for current measurement
µA, mA, A
Ω, kΩ, ΜΩ Unit for resistance measurement
CAL Lit when stray capacitance is adjusted to zero
+ – Lit when the batteries are low
Measuring Instructions
To avoid damage to Instrument or equipment.
• Before starting measurement, check to which mode the function switch is set and make
sure the testing leads are plugged into the terminals for the desired mode of measure-
ment.
• Temporarily remove the testing leads from the device under test before operating the
function switch.
• AC Voltage Measurement ( V)
V
V
OFF
A
Black testing lead
Red testing lead
• DC Voltage Measurement ( V)
(732 01/02/03) V
V
OFF
/ key (732 01)*
A
Black testing lead
Red testing lead
symbol.) NOTE
CAL
Do not mistake the following for a malfunction!
/ key instead of the SELECT key. This key is used If the 400 mV range is selected and the testing leads are left open-circuited, the multim-
eter may give a certain reading. This does not affect your measurement.
sym-
R • H
• Resistance Measurement (Ω)
To avoid damage to instrument!
symbol).
A • H Turn off the power to the circuit under test before starting measurement in order to pre-
vent any excessive voltage from being applied to the multimeter.
or ( /= key (732 01)
V
*(2) and (3) are not supported on the 732 04 multimeter. V
OFF
A
Black testing lead
Red testing lead
• Continuity Check (
To avoid damage to instrument!
Turn off the power to the circuit under test before starting measurement in order to pre-
vent any excessive voltage from being applied to the multimeter.
Description
V
V
OFF
A
Black testing lead
Red testing lead
CAUTION
a) Set the function switch from the OFF position to the V position.
/ /
b) Plug the black testing lead into the COM input terminal and the red
400/4000
V uA
40/400
mA
4/10
testing lead into the V•Ω• input terminal.
A
c) Connect the testing leads to the circuit under test and then read the
µA mA COM V
multimeter when it stabilizes.
d) When measurement is complete, set the function switch back to the
OFF position and turn off the multimeter.
a) Set the function switch from the OFF position to the V position.
/
/
V 400/4000 b) Plug the black testing lead into the COM input terminal and the red
uA
40/400
mA
4/10
A
testing lead into the V•Ω• input terminal.
c) Connect the testing leads to the circuit under test and then read the
µA mA COM V
multimeter when it stabilizes.
d) When measurement is complete, set the function switch back to the
OFF position and turn off the multimeter.
CAUTION
a) Place the function switch in the Ω position (732 01/04) or Ω/
/
/ position (732 02/03).
400/4000
uA
40/400
mA
b) Plug the black testing lead into the COM input terminal and the red
4/10
A
testing lead into the V•Ω• input terminal.
µA mA COM V c) Connect the testing leads to the circuit under test and then read the
multimeter when it stabilizes.
d) When measurement is complete, place the function switch in the
OFF position and turn off the multimeter.
)
CAUTION
a) If the model is 732 01 or 04, place the function switch in the
/
/ position.
400/4000
uA
40/400
mA
4/10 If the model is 732 02 or 03, place the function switch in the Ω/
A
position, and then press the SELECT key. (The symbol appears
µA mA COM V
on the display.)
b) Plug the black testing lead into the COM input terminal and the red
testing lead into the V•Ω• input terminal.
c) Connect the testing leads to the circuit under check. If the circuit is
continuous (no more than approximately 50 Ω), the buzzer sounds.
d) When the test is complete, place the function switch in the OFF
position and turn off the multimeter.
