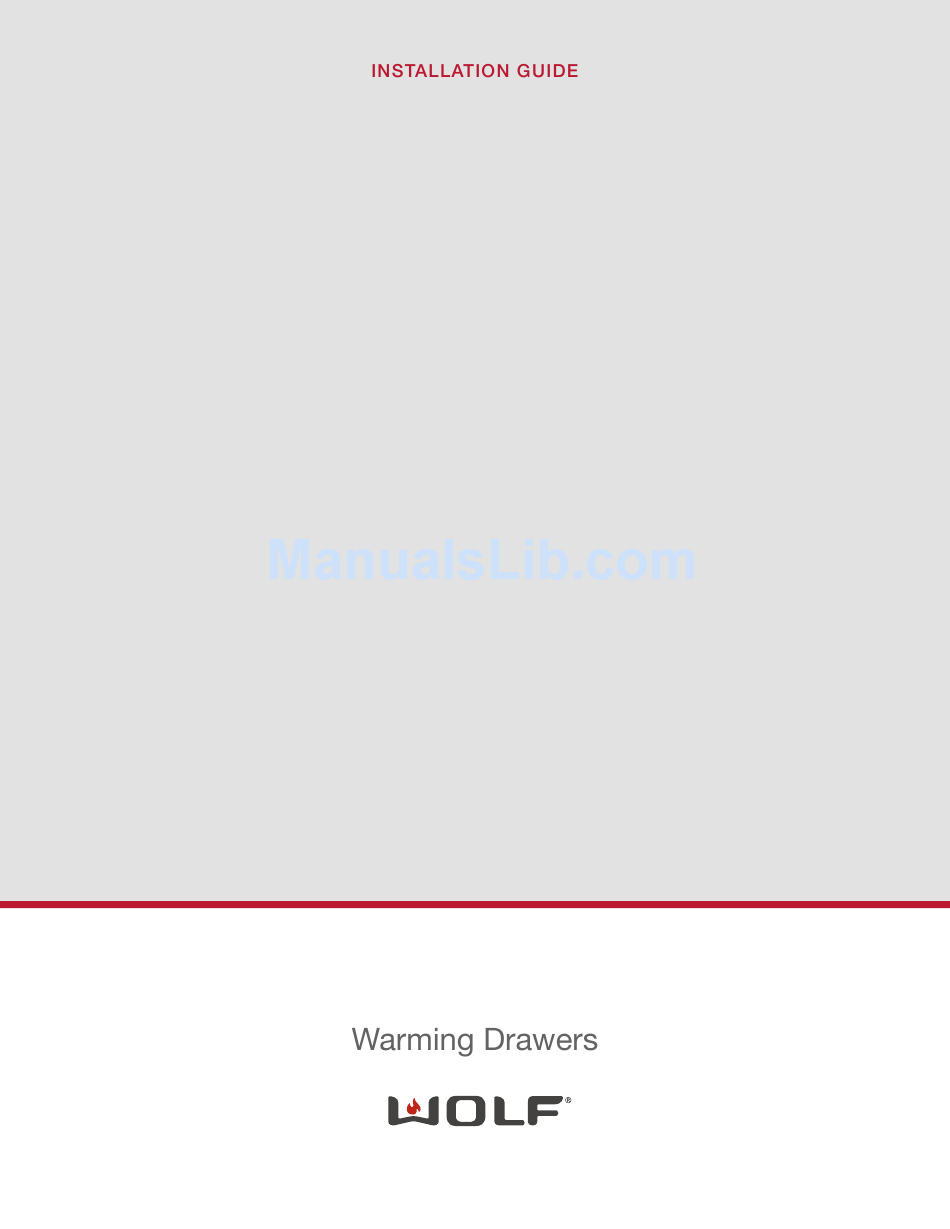

Wolf WWDFRONT/B Installation Manual
  1. Manuals
  2. Brands
  3. Wolf Manuals
  4. Warming Drawer
  5. WWDFRONT/B
  6. Installation manual
Wolf WWDFRONT/B Installation Manual

Wolf WWDFRONT/B Installation Manual

Hide thumbs Also See for WWDFRONT/B:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WWDFRONT/B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wolf WWDFRONT/B

Summary of Contents for Wolf WWDFRONT/B

  • Page 6 " 9" (264) (229) " (19) " " (759) (578) " (911) " " (718) (19) " (546)
  • Page 7 TOP CLEAT TOP CLEAT PLATFORM PLATFORM SIDE CLEAT SIDE CLEAT CLEATS AND PLATFORM CLEATS AND PLATFORM " " RECESSED RECESSED CABINETRY PLUS THICKNESS CABINETRY OPENING OF DECORATIVE PANEL OPENING...
  • Page 8 DIMENSION ANTI-TIP BLOCK WILL VARY* " (232) " " (727) OPENING HEIGHT (264) OPENING WIDTH PLATFORM 36" " (914) FLOOR TO (597) 24" (610) min TYPICAL COUNTERTOP CABINET DEPTH SIDE VIEW FRONT VIEW *Dimension must accommodate height of anti-tip block and drawer face overlap. NOTE: Location of electrical supply within opening may require additional cabinet depth.
  • Page 9 TOP VIEW (610) min FLUSH INSET 1" (25) DEPTH SIDE CLEATS DIMENSION ANTI-TIP BLOCK WILL VARY* " (22) TOP AND SIDE CLEATS " (276) " (232) " (727) FLUSH INSET OPENING HEIGHT OPENING WIDTH HEIGHT " (22) PLATFORM 36" " "...
  • Page 10 1" (25) min L SERIES MICROWAVE " (38) min OPENING E SERIES 24" " " (610) min (724) OPENING DEPTH (691) OVEN OPENING WIDTH 4" (102) 5" PLATFORM* (127) " " (232) (19) " (727) WARMING DRAWER OPENING WIDTH SIDE VIEW FRONT VIEW *Platform must support 250 lbs (113 kg)
  • Page 11 TOP VIEW " (629) min FLUSH INSET 1" (25) DEPTH SIDE CLEATS " (772) min FLUSH INSET WIDTH " (17) TOP CLEAT 17" " " (432) (470) (699) OPENING FLUSH INSET STANDARD MICROWAVE HEIGHT HEIGHT OPENING WIDTH " (43) PLATFORM "...
  • Page 12 TOP VIEW " (629) min FLUSH INSET 1" (25) DEPTH SIDE CLEATS " (772) min FLUSH INSET WIDTH " (13) TOP CLEAT " " " (479) (699) (511) OPENING CONVECTION MICROWAVE FLUSH INSET HEIGHT OPENING WIDTH HEIGHT " (41) PLATFORM "...
  • Page 13 TOP VIEW " " (32) FOR MICROWAVE (629) min 1" (25) FOR OVEN FLUSH AND WARMING INSET DRAWER DEPTH SIDE CLEATS " (772) min FLUSH INSET WIDTH " (22) TOP CLEAT " " " (724) (691) (714) min E SERIES OVEN OPENING FLUSH INSET OPENING WIDTH...
  • Page 14 LOCATION OF SIDE HOLE...

This manual is also suitable for:

Wwdfront/iWwdfront/pWwdfront/sWwd30o
