Electronic Control Info.
GENERAL INFORMATION:
Electronic control will provide temperature control in the warming drawer as determined and set by user. Up and
down arrow keys are provided to increase and decrease, respectively, the temperature of the drawer and operation
time. Temperature control range of the warming drawer main board control will be 80ºF to 200ºF (26.7ºC to 93.3ºC).
Amplitude of this temperature control will be ± 5ºF. When the control sees a temperature at the thermistor 5ºF above
set-point, control will open the element relay. Once the control sees a thermistor temperature of 5ºF below set-point,
the relay will close allowing element to cycle on.
Display
Thermistor
Beeper
F
PROOF
ON
LCD Display
#814750 - Revision A - January, 2011
Circulation Fan
Element
(Inner ceiling)
Display Board/
Keypad
Electronic Control Board
(Behind Front Panel)

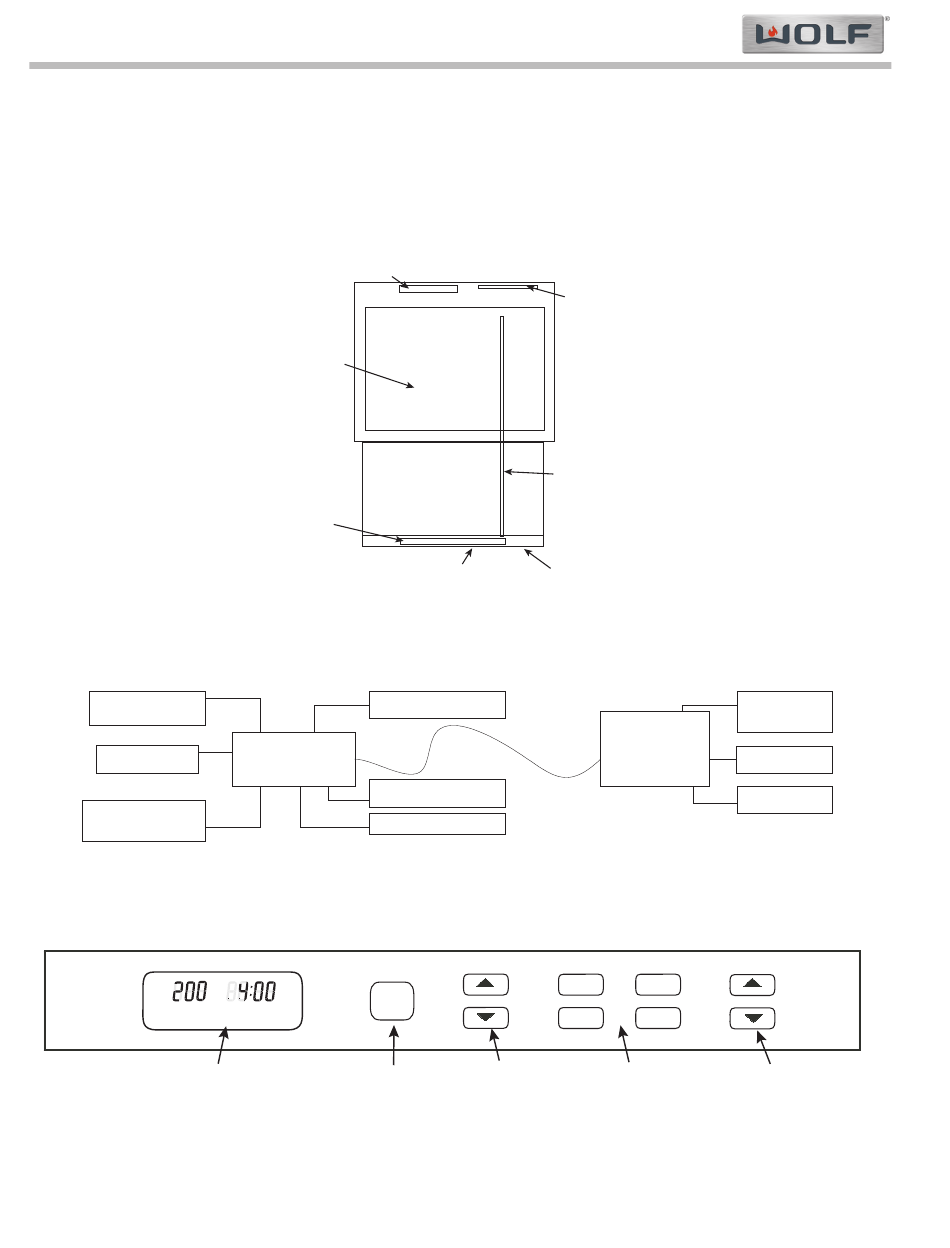

Figure 3-1. Component Location Top View.
CONTROL (all low
temp components)
Communications
Figure 3-2. Electronic Control System Diagram.
POWER
ON/OFF
TIMER
Power On/Off
Figure 3-3. Keyboard Layout.
Warming Drawer WWD30-2
Power/Relay Board
Flex Cable
(Network Cable)
Door Switch
(Bottom of Drawer Front)
Keypad
Flex Cable
Door Input
HIGH
TEMP
TEMP
TEMP
TEMP
MED
Temperature
Preset Controls
Controls
3-2
AC Fan
POWER BOARD
DLB
(CB/CE Model only)
Element
(850W)
LOW
PRESETS
TIMER
PROOF
Timer Controls
