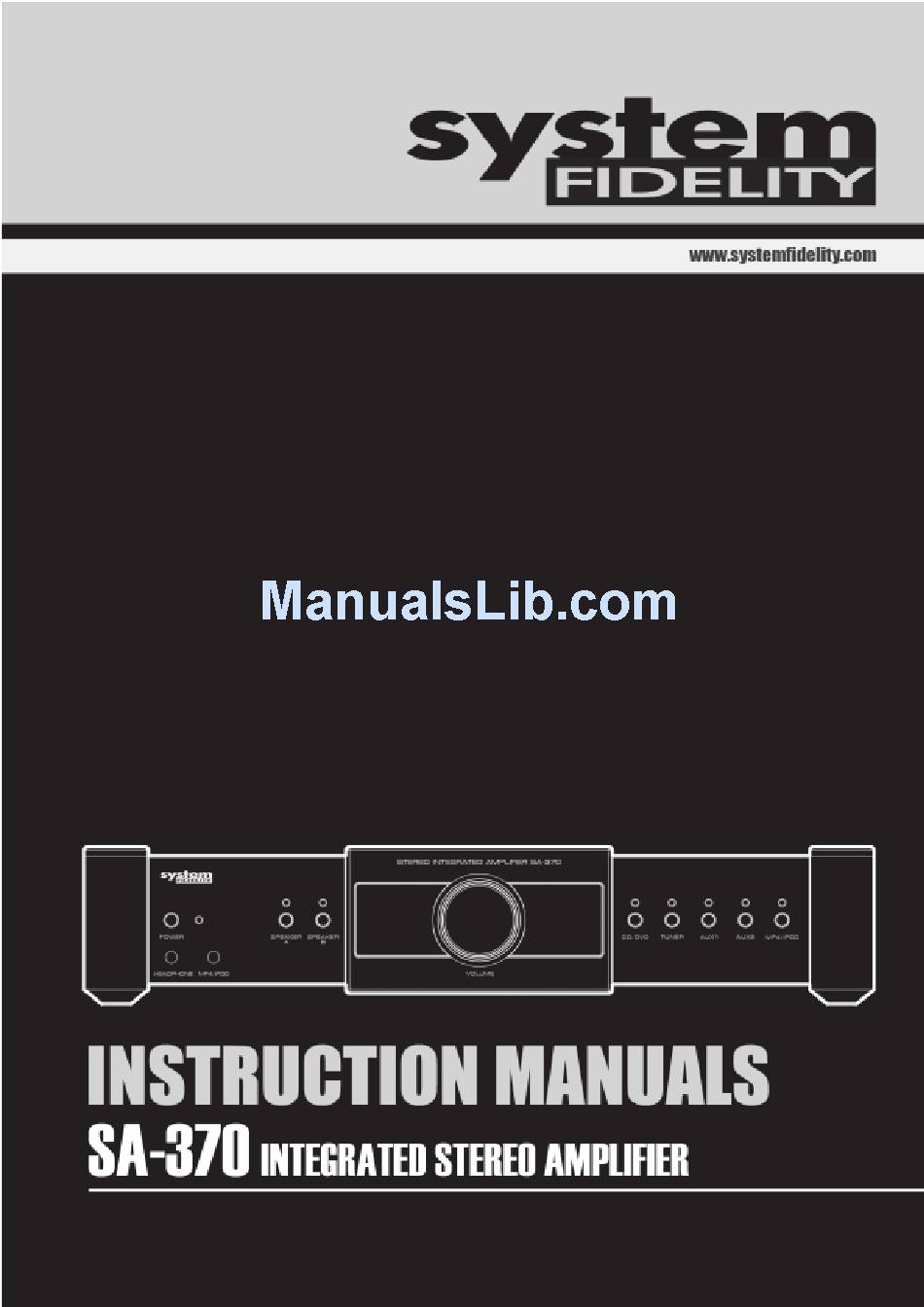

System Fidelity SA-370 Instruction Manuals

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-370 and is the answer not in the manual?

Questions and answers

Related Manuals for System Fidelity SA-370

Summary of Contents for System Fidelity SA-370

  • Page 2 Notes on environmental protection: At the end of its useful life, this product must not be disposed off with regular household waste, but must be returned to a collection point for a recycling of electric and electronic equipment. The symbols on the product, user manuals and packaging point this out. The materials can be reused in accordance to their markings.

  • Page 3: Table Of Contents

    2 x Batteries (Optional) 1x Optional volume knob 1 x Operation Manual This operation manual supplies all the information that you need to have about your System Fidelity Integrated amplifier. Please read this operation manual carefully before you start using the unit!

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS A triangle with a lightning symbol draws the user’s attention to “dangerous voltage” without insulation in the cabinet which may be high enough to entail a risk of electric shock. A triangle with an exclamation mark draws the user’s attention to important instructions for use and maintenance in the accompanying manual, which should be studied.
  • Page 5 Ventilation The cabinet is provided with slots and openings to ensure ventilation and reliable operation and to protect the unit against overheating. Do not block or cover these openings. The openings must never be blocked, for instance by placing the unit on a bed, a sofa, a carpet or similar surface . Heat Do not place the unit near sources of heat such as radiators, heat registers, ovens or other units that produce heat.
  • Page 6 must be made as incorrect setting may result in damage and often will make it difficult for a qualified technician to make the unit work properly again. E) If the unit has been dropped or damaged in any other way. F) When the operation of the unit changes drastically, the unit requires service.

  • Page 7: Important Information

    NOTES ON INSTALLATION: Your System Fidelity SA-370 should be placed on a firm, level surface. Avoid placing it in direct sunlight or near sources of heat and damp. Always allow adequate ventilation and don’t place it on a soft surface like a carpet. Don’t place it in an enclosed position such a bookcase or cabinet that may impede the air-flow through the ventilation holes.

  • Page 8: Connections To The Mains

    About connection to the mains Do not turn on the power before all connections have been made correctly. Check that all connections have been made correctly before turning on the power. Check that the mains voltage is 230-240V AC50Hz before turning on the power. Check that all other connections have been made correctly before inserting the mains plug into the wall socket.
  • Page 9 Remote control functions SA-370 AMPLIFIER FUNCTIONS: (1) Power: Sets the SA-370 into standby mode. (2) Light: switches on and off the light around the volume knob (8) Mute: temporarily switches off the sound. (20-24) Input buttons: Selects input source of amplifier.

  • Page 10: Front/Rear Panel

    FRONT PANEL DESCRIPTION (1) LED indicator: indicates the stand-by mode (2) Stand-by power switch: Used to switch the amplifier on and to stand-by. (3) Headphone output jack: 3,5-mm jack that suits most headphones. (4) MP4/iPod input: 3,5mm jack for connection of iPod or MP3 and MP4 player. (5) Speakers A: switches on or off the main speaker pair.

  • Page 11: Audio Connections

    CONNECTIONS (OPTIONAL) IMPORTANT NOTICE: If you run two pairs of speakers simultaneously (A+B), then each speaker pair must have a minimum impedance of 8 ohms! 1.Connecting speakers with bare cable 2.Make sure the terminal is tightly Optional: connecting speakers with screwed 4mm bannana connector...

  • Page 12: Operation And Functions

    Release the input source button at your desired source, during this procedure we advice the volume to be decreased. Please note, that SA-370 doesn’t have a built in phono stage and corresponding input sockets. If you wish to connect a turntable to the amplifier, you should use some of the commercially available phono preamp-stages, which can be connected to any of the line input sockets.

  • Page 13: Volume Control

    To use the remote control unit, point it towards the remote sensor beside the volume knob. The remote controll handset handles all the functions of the SA-370 amplifier and performs the same functions as the buttons labeled the same on the front panel. Beside that, it is a multi- remote controll, which means it includes also buttons for remote controlling the functions of the CD-player CD-370 and the tuner ST-370 by System Fidelity.

  • Page 14: Troubleshooting

    TROUBLESHOOTING CAUSE/REMEDY PROBLEM -Switch on the electric current at the socket. -Check that the plug has been correctly inserted into the socket. No power when the amplifier is turned on. -The internal fuse has blown and must be replaced -The power cord has been damaged and must be re- placed -The amplifier has not been turned on from stand-by mode.

  • Page 15: Technical Data

    CONSUMER NOTICE: The System Fidelity product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE)
