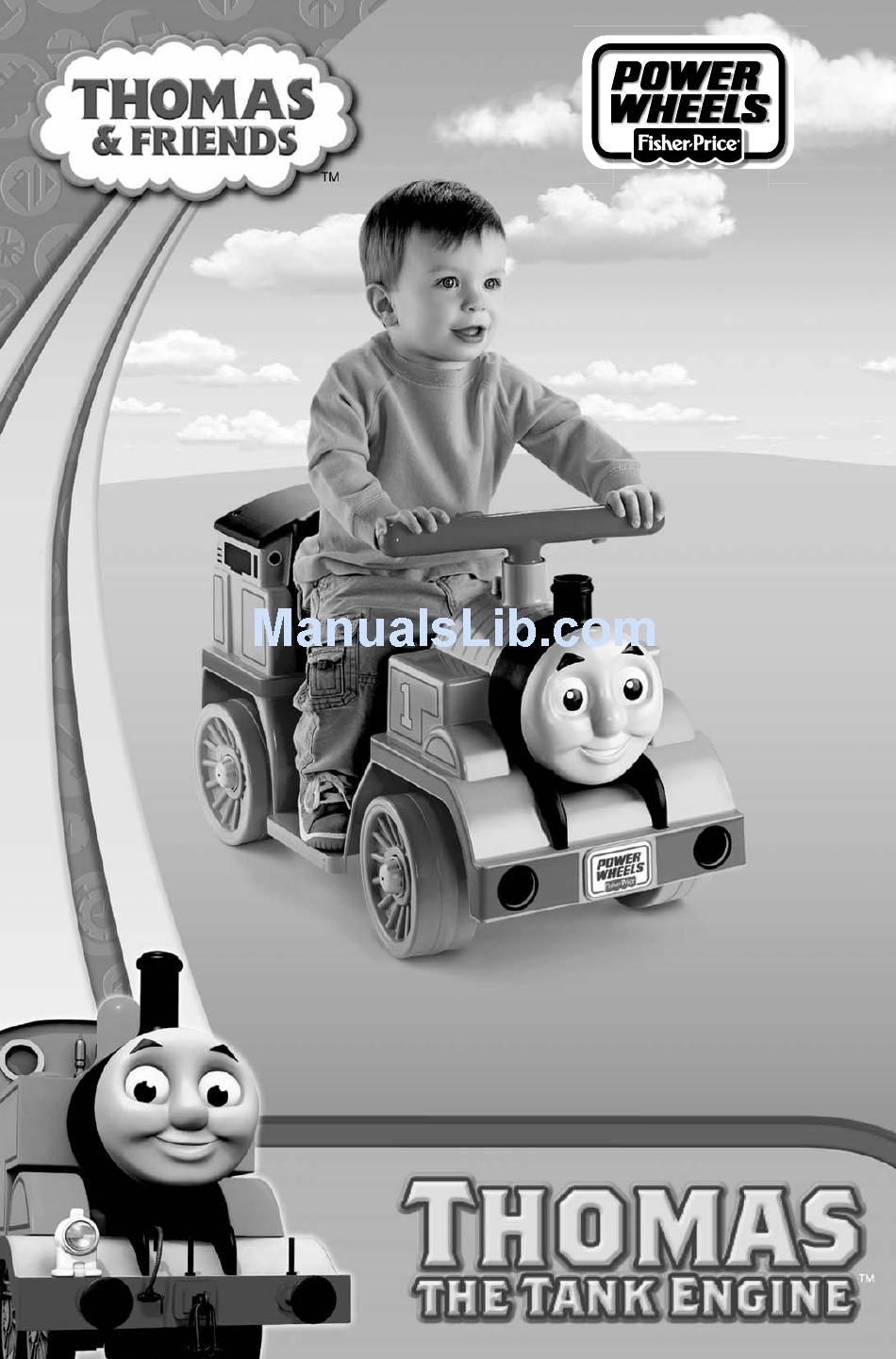

Owner's Manual
with Assembly Instructions
For Model T4963
Product features may vary from the picture above.
Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Wrench (included) and Phillips Screwdriver (not included).
Use only with a Power Wheels
®
6 Volt (4.0 Amp/Hr.) Rechargeable
Battery with Built-in Thermal Fuse and a Power Wheels
®
6 Volt
(4.0 Amp/Hr.) Charger (both included).
Advertisement
Table of Contents
Related Manuals for Fisher-Price THOMAS & FRIENDS T4963
Summary of Contents for Fisher-Price THOMAS & FRIENDS T4963
- Page 1 Owner's Manual with Assembly Instructions For Model T4963 Product features may vary from the picture above. Please read this manual and save it with your original sales receipt. Tools needed for assembly: Wrench (included) and Phillips Screwdriver (not included). Use only with a Power Wheels ®...
-
Page 2: Electrical Hazard
IMPORTANT INFORMATION ELECTRICAL HAZARD • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. - Page 3 20 minutes for assembly. • Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors.
- Page 4 • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
-
