Fisher-Price Harley-Davidson ROCKER P5065 Owner's Manual & Assembly Instructions

Fisher-Price Harley-Davidson ROCKER P5065 Owner's Manual & Assembly Instructions

Fisher-price motorized toy car user manual
Hide thumbs Also See for Harley-Davidson ROCKER P5065:
Table of Contents

Advertisement

Quick Links

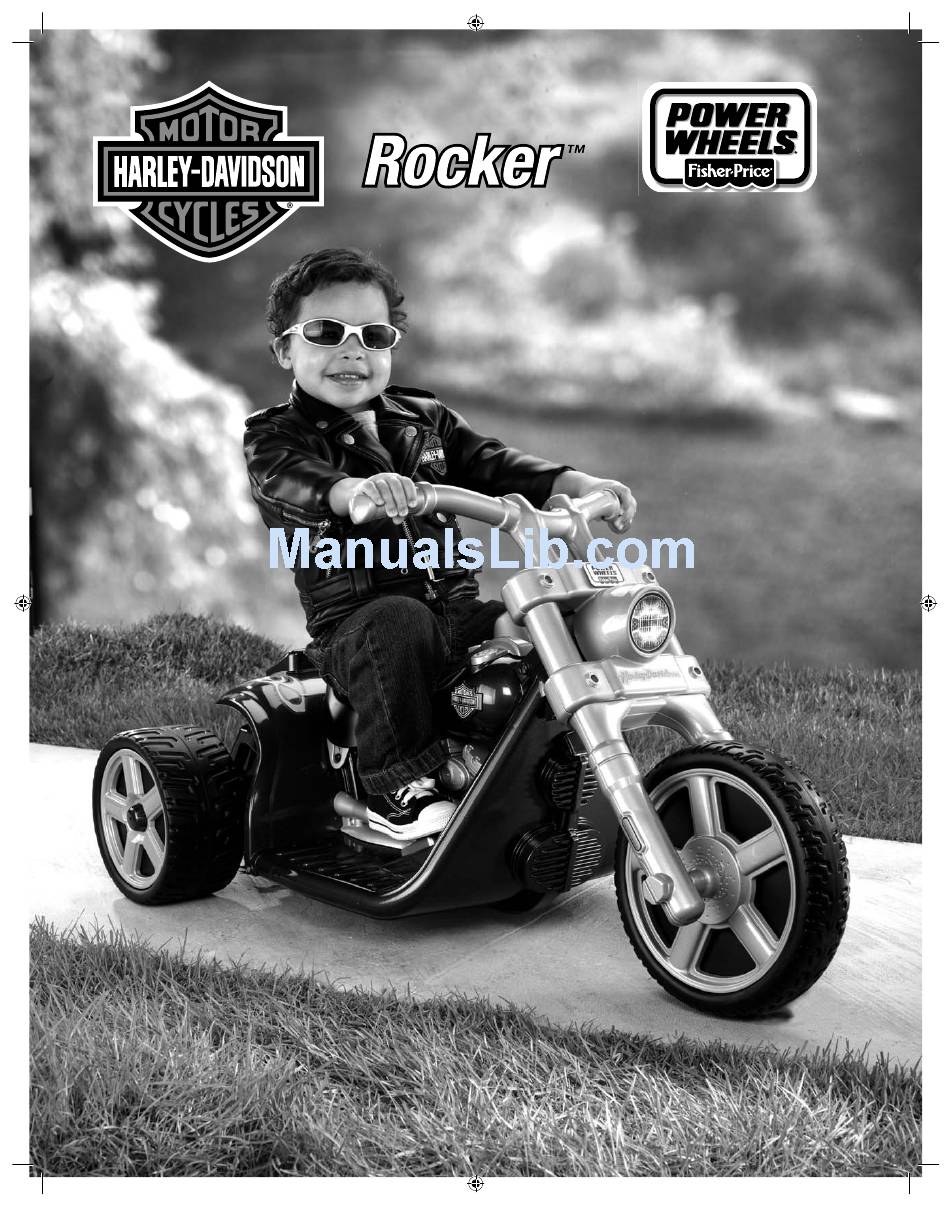

Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
For Model P5065
For Model P5065
Product features may vary
Product features may vary
from the picture above.
from the picture above.
Please read this manual and
Please read this manual and
save it with your original
save it with your original
sales receipt.
sales receipt.
Tool needed for assembly:
Tool needed for assembly:
Phillips screwdriver
Phillips screwdriver
(not included).
(not included).
Use only with a Power Wheels
Use only with a Power Wheels ® ®
6 Volt (4.0 Amp/Hr.)
6 Volt (4.0 Amp/Hr.)
Rechargeable Battery with
Rechargeable Battery with
Built-in Thermal Fuse and
Built-in Thermal Fuse and
a Power Wheels ® ® 6 Volt
a Power Wheels
6 Volt
(4.0 Amp/Hr.) Charger
(4.0 Amp/Hr.) Charger
(both included).
(both included).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harley-Davidson ROCKER P5065 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price Harley-Davidson ROCKER P5065

Summary of Contents for Fisher-Price Harley-Davidson ROCKER P5065

  • Page 1 Owner's Manual Owner's Manual with Assembly Instructions with Assembly Instructions For Model P5065 For Model P5065 Please read this manual and Please read this manual and save it with your original save it with your original sales receipt. sales receipt. Tool needed for assembly: Tool needed for assembly: Phillips screwdriver...

  • Page 2: Table Of Contents

    1½ - 4 years of age. • Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price be responsible for damage to the floor if the vehicle is used indoors.

  • Page 3: Electrical Hazard

    IMPORTANT INFORMATION ELECTRICAL HAZARD • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system.

  • Page 4: Parts

    • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

  • Page 5: Parts Picture

    Vehicle Frame Headlight Front Wheel Assembly Headlight Retainer – 2 Handlebar Seat Handlebar Bracket 6 Volt Battery P5065a-0920 PARTS PICTURE 6 Volt Battery Charger Battery Retainer Parts Not Shown Label Sheet #8 x ¾" Screw – 10...

  • Page 6: Battery Charging

    ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system.
  • Page 7 BATTERY CHARGING Seat • Loosen the screws on each side of the seat. Set the screws aside. • Pull the tabs on each side of the seat and lift to remove it. Battery Retainer • Loosen the screw in the battery retainer and remove it. Set the screw aside.

  • Page 8: Assembly

    WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 9 • Insert two screws into the outer holes in the handlebar bracket and tighten. Hint: You may need to turn the handlebar to each side to insert and tighten the screws. • Fit the headlight onto the front end of the assembly. P5065a-0920 ASSEMBLY •...
  • Page 10 • Fit a headlight retainer to the back of the headlight, as shown. ASSEMBLY Headlight Retainer • Insert two screws into the headlight retainer and tighten. • Repeat this procedure to assemble the other headlight retainer. P5065a-0920...

  • Page 11: Decoration

    DECORATION Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...

  • Page 12: Battery Installation

    IMPORTANT! Use only a Power Wheels rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle.

  • Page 13: Battery Care And Disposal

    BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.

  • Page 14: Safe Driving Rules

    RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - Away from swimming pools and other bodies of water to prevent drownings - Generally level to prevent tipovers - Away from steps, cars, steep inclines, roads and alleys.

  • Page 15: Vehicle Operation

    VEHICLE OPERATION IMPORTANT! Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price will not be responsible for damage to the floor ® if the vehicle is used indoors. • Press a DRIVE button on the tank.

  • Page 16: Vehicle Care

    VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover.

  • Page 17: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Power Wheels ® authorized service center. For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751. PROBLEM POSSIBLE CAUSE Vehicle does not run...
  • Page 18 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle was running but Loose wire or loose connectors suddenly stopped Tripped thermal fuse Vehicle is overloaded Driving conditions are too stressful Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge...
  • Page 19 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Sometimes the vehicle doesn’t Loose wire or connector run, but other times it does Motor or electrical switch damage When the pedal is pressed, the...
  • Page 20 Manufactured by Fisher-Price under license from Harley-Davidson Motor Company. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2009 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated.
