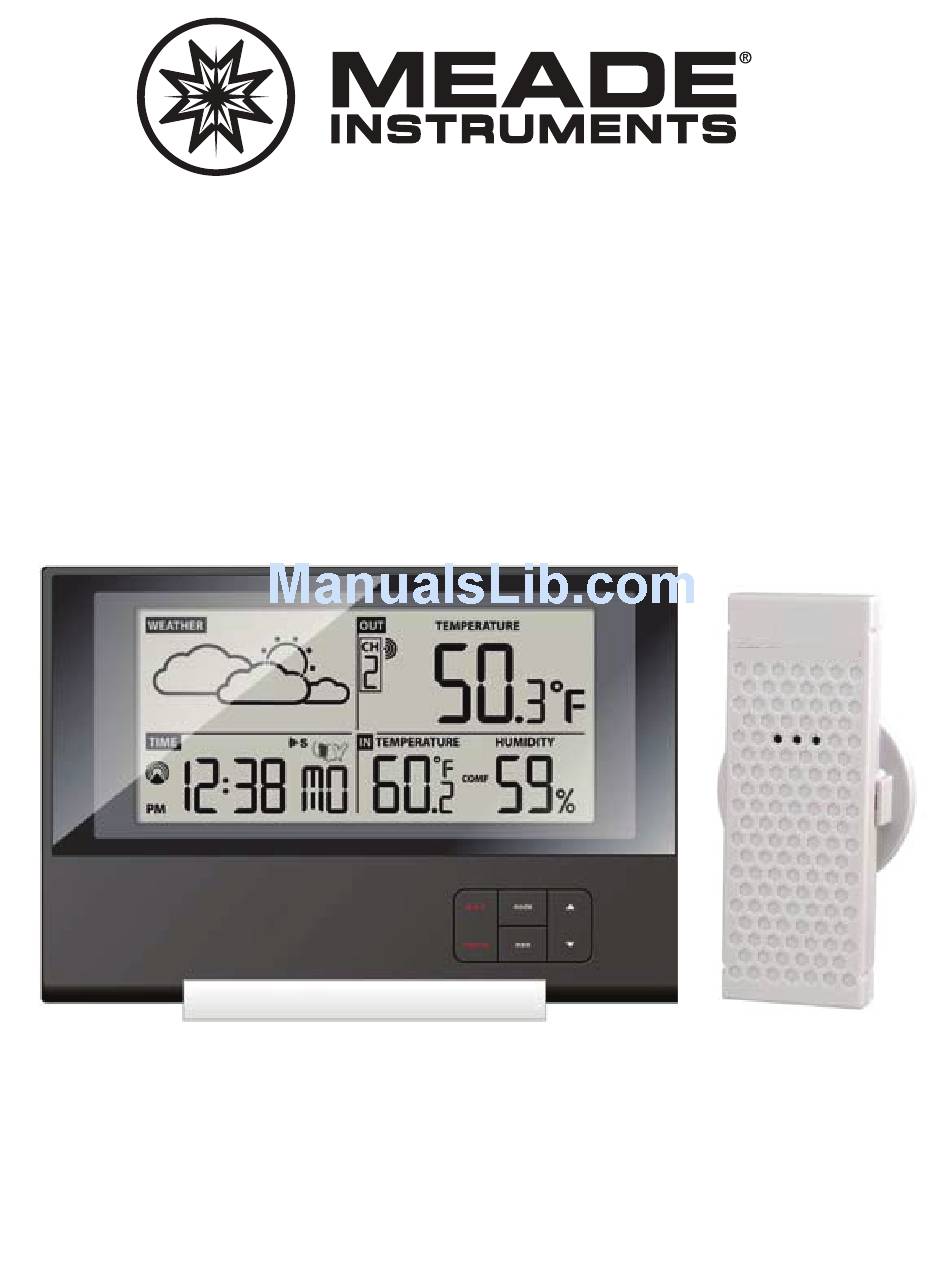

- Page 1 TE346W Slim Weather Forecaster with Indoor/ Outdoor Temperature, Indoor Humidity and Atomic Clock USER MANUAL...
- Page 2 Meade Instruments now brings that same passion for innovation and high performance to its own line of precision, feature rich weather stations. Please read this instruction manual so that you can get the most enjoyment out of your Meade Instruments weather station.
-
Page 3: Installation
INSTALLATION Communications between the main unit (receiver) and the remote sensor (transmitter) is wireless. This allows you to greater flexibility in choosing the location of remote sensor. The remote transmits data up to 164 feet (50 meters) over an open, unobstructed area. The remote sensor can be located either indoors or outdoors, allowing you chose where your data is obtained. - Page 4 REMOTE TEMPERATURE SENSOR (TS01) FEATURES • Remote data transmission to the main unit via 433 MHz frequency • Single transmission channel • Case can be wall mounted using accessory hanger A. BATTERY COMPARTMENT • Holds two AAA-size batteries B. WALL-MOUNT RECESSED HOLE •...
-
Page 5: Operation
PLACEMENT • The remote sensor should be placed under eaves or a similar location with free air circulation, sheltered from direct sunlight and extreme weather. • Ideally, place the remote sensor over soil, rather than asphalt, which would cause false readings. - Page 6 FRONT REAR...
-
Page 7: Battery Compartment
A. WEATHER/ OUTDOOR TEMPERATURE window B. INDOOR TEMPERATURE/ HUMIDITY window C. CLOCK window D. DOWN (? ) button • Select the next available mode • Press and hold for 2 seconds to search for wireless signal from remote sensor. • Decrease parameters. E. -
Page 8: Battery Installation
BATTERY INSTALLATION • Remove the battery door located at the back of the main unit. • Insert two (2) CR2032 lithium cell batteries and replace the battery compartment door. PLACEMENT • When mounting the main unit on the wall or vertical surface, fold the table stand back into the unit. - Page 9 SEARCH FOR REMOTE SENSORS • The main unit can be manually activated to search for the signals from remote sensors by pressing and holding DOWN (? ) button. OPERATION • To select the indoor/ outdoor temperature mode, press UP (? ) or DOWN (? ) until the icon flashes with a beep sound alert.
-
Page 10: Wwvb Radio Controlled Time
COMFORT LEVEL INDICATION The main unit is capable of detecting and displaying the current indoor comfort levels of surrounding environment. The comfort level based on the combination of the current indoor temperature and humidity readings. The following comfort levels may be displayed: COMFORT (comfortable);... -
Page 11: Manual Settings
• The atomic clock receiver is programmed that it will search for the time signal daily for 0:00, 3:00, 6:00, and 12:00 am. • To enable or disable the atomic time receiver, press and hold UP (? ) button for 3 seconds. If time reception is activated, a tower icon will start flashing. -
Page 12: Changing Batteries
SETTING THE ICE WARNING ALARM (PRE-AL) If Weekday (W) or Single day (S) alarm is MODE, the Ice Warning Alarm (Pre-AL) can be programmed. • Press ALARM button once to enter into the Ice Warning Alarm setting mode. The abbreviation OFF with a PRE-AL next to it will be displayed. •... -
Page 13: Specifications
PRECAUTIONS This product is engineered to give you years of satisfactory service if handled carefully. Here are a few precautions: • Do not immerse the units in water. • Do not clean the units with abrasive or corrosive materials. They may scratch the plastic parts and corrode the electronic circuits. -
Page 14: Fcc Statement
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. DECLARATION OF CONFORMITY Name: Meade Instruments Corp. Address: 27 Hubble, Irvine, CA 92618 - 4209 declare that the product Product No.: TE436NLW... -
Page 15: Standard Warranty Information
• If batteries or parts are swallowed, see a doctor immediately. STANDARD WARRANTY INFORMATION This product is warranted by Meade Instruments Corp. (MIC) to be free of defects in materials and workmanship for a period of ONE YEAR from date of original retail purchase in the U.S.A. - Page 16 Meade Instruments Corp. 27 Hubble Irvine, CA 92618 U.S.A. © 2011 Meade Instruments Corp. All Rights Reserved. All user manual contents and information are subject to change.
