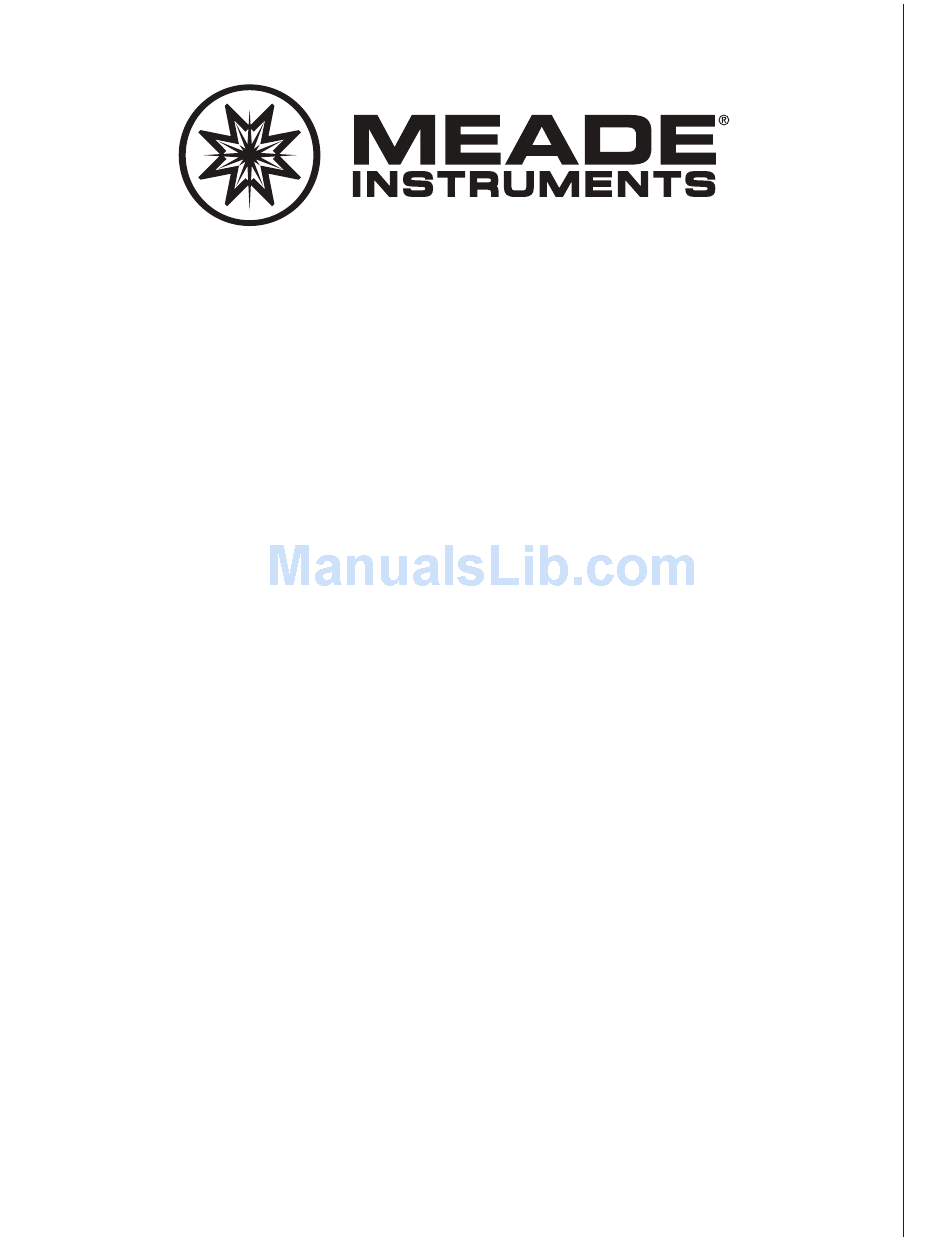

- Page 1 TE653ELW-M Complete Weather Forecaster with Indoor/ Outdoor Temperature and Humidity USER MANUAL...
- Page 2 Meade Instruments now brings that same passion for innovation and high performance to its own line of precision, feature rich weather stations. Please read this instruction manual so that you can get the most enjoyment out of your Meade Instruments weather station.
-
Page 3: Installation
INSTALLATION Communications between the main unit (receiver) and the remote sensor (transmitter) is wireless. This allows you to greater flexibility in choosing the location of remote sensor. The remote transmits data up to 164 feet (50 meters) over an open, unobstructed area. The remote sensor can be located either indoors or outdoors, allowing you chose where your data is obtained. - Page 4 REMOTE SENSOR FEATURES • Remote temperature transmission to the main unit via 433 MHz signal • Case can be wall mounted using built-in hanger • 164 feet transmission range without interference • Selection of the temperature display in Celsius or Fahrenheit •...
-
Page 5: Operation
PLACEMENT • The remote sensor should be placed under eaves or a similar location with free air circulation, sheltered from direct sunlight and extreme weather. • Ideally, place the remote sensor over soil, rather than asphalt, which would cause false readings. •... - Page 6 FRONT REAR...
- Page 7 A. WEATHER FORECAST/ PRESSURE window B. TEMPERATURE/ HUMIDITY window C. CLOCK window D. DOWN button • Select the next available mode • Press and hold for 2 seconds to search for wireless signal from remote sensor. • Decrease parameters. E. ALARM button •...
-
Page 8: Battery Compartment
L. SNOOZE/ LIGHT button • Stops alarm temporarily and activates LCD backlight M. WALL-MOUNT hole • A recessed opening to mount the unit on a wall N. BATTERY COMPARTMENT • Requires two (2) AA batteries O. TABLE STAND • When placing the main unit on the table or other horizontal surface, unfold and adjust the table stand for the desired viewing angle. - Page 9 PRESSURE OPERATION The pressure window displays: current barometric pressure, sea level pressure, and weather forecast. The information contains a number of historical statistics: pressure/ temperature/ humidity history bar-chart for the past 24 hours. Pressure can be measured in inHg, hPa/mBar or mmHg, and altitude is determined in either meters or feet.
- Page 10 CHANGING PRESSURE AND ALTITUDE UNITS • Press MODE as needed, until “LOCAL” pressure is displayed. • Press and hold HISTORY, until the pressure unit is flashing. • Change local or sea level pressure units by pressing the UP (? ) or DOWN (? ) buttons to select the pressure units.
- Page 11 REMOTE SENSORS STATUS The wave icon above the current channel icon shows the connection status of the corresponding remote sensor: Status Icon Searching for the signals from the remote sensor Corresponding remote sensor signal received successfully No signals received for over 1 hour SEARCH FOR REMOTE SENSORS •...
- Page 12 VIEWING MAX/MIN AND MINIMUM READINNGS Press the MEMORY button recalling: • Current temperature and humidity • Minimum temperature and humidity • Maximum temperature and humidity at the remote location. RESETTING TEMPERATURE MEMORIES Press and hold MEMORY button for 3 seconds to clear all channel memories. COMFORT LEVEL INDICATION The main unit is capable of detecting and displaying the current indoor comfort levels of surrounding environment.
-
Page 13: Manual Settings
ICON Atomic Time Reception Strength (Flashing) Undefined data No Reception for the past 24 hours Weak signal, but can be decoded Strong signal • The atomic clock receiver is programmed that it will search for the atomic time signal daily for 0:00, 3:00, 6:00, and 12:00 am. -
Page 14: Clock & Alarms
CLOCK ALARMS There are two time alarms – Weekday alarm (W) and Single day alarm (S) - and one Ice Warning Alarm (PRE-AL). • If Weekday (W) alarm is activated, it will sound at the set time and the alarm icon will flash Mondays through Fridays •... -
Page 15: Troubleshooting
TROUBLESHOOTING Check here before contacting customer service. Issue Symptom Solution Radio Controlled Place unit by the window and keep it there Main unit Time signal is not overnight received Check batteries Cannot locate remote sensor Remote sensor Check location Press and hold DOWN ( ? ) button on the main unit to search for the signal form the remote sensor Cannot change... - Page 16 L. SNOOZE/ LIGHT button • Stops alarm temporarily and activates LCD backlight M. WALL-MOUNT hole • A recessed opening to mount the unit on a wall N. BATTERY COMPARTMENT • Requires two (2) AA batteries O. TABLE STAND • When placing the main unit on the table or other horizontal surface, unfold and adjust the table stand for the desired viewing angle.
- Page 17 PRESSURE OPERATION The pressure window displays: current barometric pressure, sea level pressure, and weather forecast. The information contains a number of historical statistics: pressure/ temperature/ humidity history bar-chart for the past 24 hours. Pressure can be measured in inHg, hPa/mBar or mmHg, and altitude is determined in either meters or feet.
- Page 18 CHANGING PRESSURE AND ALTITUDE UNITS • Press MODE as needed, until “LOCAL” pressure is displayed. • Press and hold HISTORY, until the pressure unit is flashing. • Change local or sea level pressure units by pressing the UP (? ) or DOWN (? ) buttons to select the pressure units.
- Page 19 REMOTE SENSORS STATUS The wave icon above the current channel icon shows the connection status of the corresponding remote sensor: Status Icon Searching for the signals from the remote sensor Corresponding remote sensor signal received successfully No signals received for over 1 hour SEARCH FOR REMOTE SENSORS •...
- Page 20 VIEWING MAX/MIN AND MINIMUM READINNGS Press the MEMORY button recalling: • Current temperature and humidity • Minimum temperature and humidity • Maximum temperature and humidity at the remote location. RESETTING TEMPERATURE MEMORIES Press and hold MEMORY button for 3 seconds to clear all channel memories. COMFORT LEVEL INDICATION The main unit is capable of detecting and displaying the current indoor comfort levels of surrounding environment.
- Page 21 ICON Atomic Time Reception Strength (Flashing) Undefined data No Reception for the past 24 hours Weak signal, but can be decoded Strong signal • The atomic clock receiver is programmed that it will search for the atomic time signal daily for 0:00, 3:00, 6:00, and 12:00 am.
- Page 22 CLOCK ALARMS There are two time alarms – Weekday alarm (W) and Single day alarm (S) - and one Ice Warning Alarm (PRE-AL). • If Weekday (W) alarm is activated, it will sound at the set time and the alarm icon will flash Mondays through Fridays •...
- Page 23 TROUBLESHOOTING Check here before contacting customer service. Issue Symptom Solution Radio Controlled Place unit by the window and keep it there Main unit Time signal is not overnight received Check batteries Cannot locate remote sensor Remote sensor Check location Press and hold DOWN ( ? ) button on the main unit to search for the signal form the remote sensor Cannot change...
- Page 24 Meade Instruments Corp. 27 Hubble Irvine, CA 92618 U.S.A. ©2011 Meade Instruments Corp. All Rights Reserved. All user manual contents and information are subject to change.
