McIntosh C220 Connection Diagrams
Input
Hide thumbs
Also See for C220:
- Service manual (48 pages) ,
- Programming manual (21 pages) ,
- Owner's manual (20 pages)
Advertisement
Table of Contents
Note: Refer to the C220 Owner's Manual
page 9 for additional connection
information.
Connection Legend:
Data Cable*-
Sensor/Keypad Cable -
Power Control Cable* -
Audio Signal Cable -
Ground Wire -
AC Power Cords -
Loudspeaker Cable -
*
2 conductor shielded with
1/8 inch stereo mini phone
plug on each end.
McIntosh Disc Player
McIntosh Disc Player, Recorder, Server
Connect to AC Outlet
CD1

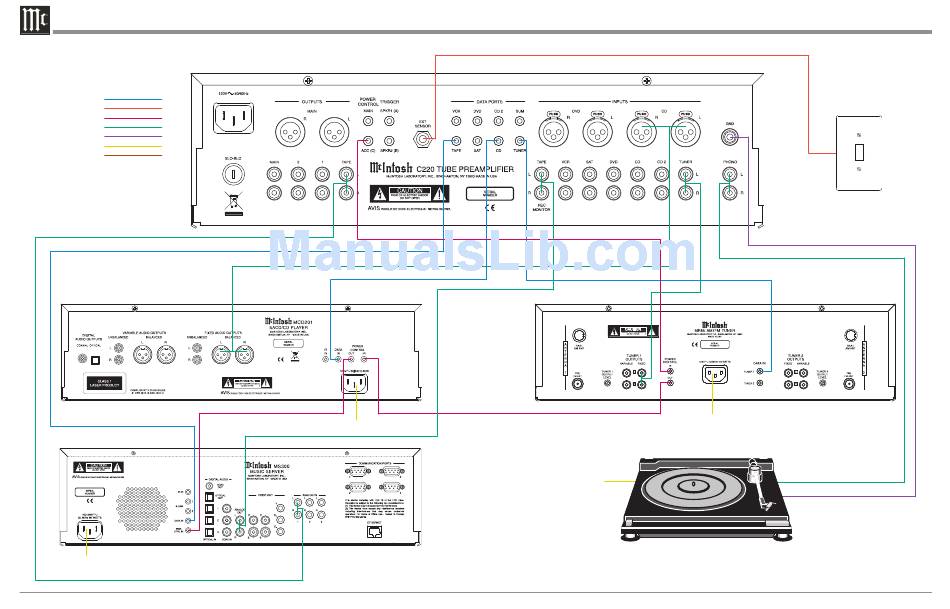

C220 Input Connection Diagram
75 WATTS
T630maAL 250V
Connect to AC Outlet
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549
McIntosh Tuner
Connect to AC Outlet
Turntable
Connect to
AC Outlet
McIntosh
Sensor
