StructureMap™
HDS Gen 2 Addendum
StructureMap is a tool that allows you to overlay SideScan sonar returns on
top of the chart, giving you a birds-eye view of underwater structure below
and beside your boat. StructureMap makes it easier for you to visualize the
underwater environment in relation to your position and aids the user in
interpreting sidescan sonar images.
Refer to your HDS manual for basic information about HDS unit operation.
Refer to your StructureScan manual for more information about
StructureScan.

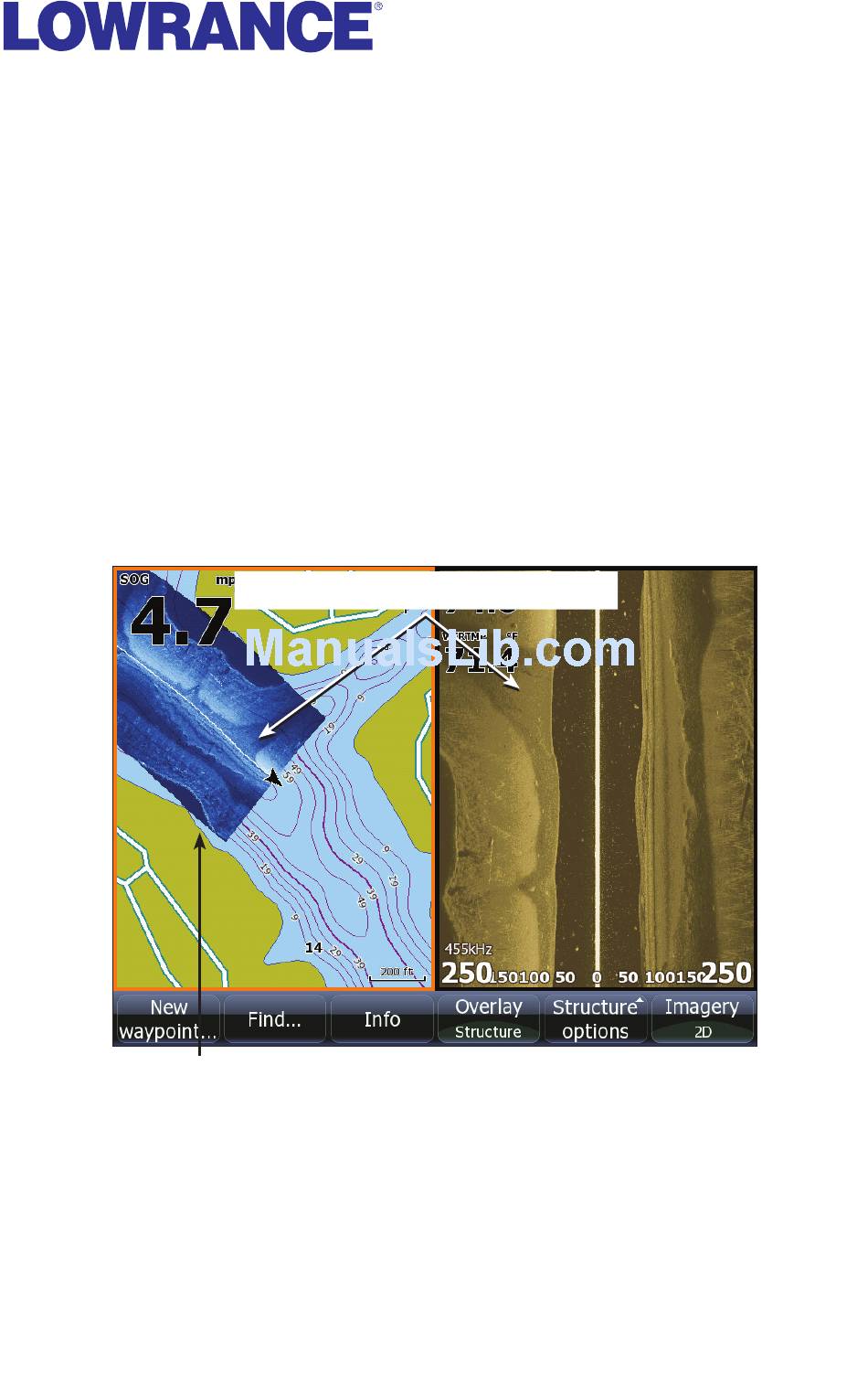

Same structure shown in each panel
StructureMap
SideScan
Viewing StructureMap data
You can view StructureMap data by turning on Structure overlay from the
Chart menu, or by using the Overlay softkey (HDS-8/10). StructureMap data
will start to appear on the Chart screen as soon as Structure overlay is en-
abled. The Structure Source setting determines whether the StructureMap
information you want to view is live or previously recorded.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StructureMap HDS Gen 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Lowrance StructureMap HDS Gen 2

Summary of Contents for Lowrance StructureMap HDS Gen 2

  • Page 1 StructureMap™ HDS Gen 2 Addendum StructureMap is a tool that allows you to overlay SideScan sonar returns on top of the chart, giving you a birds-eye view of underwater structure below and beside your boat. StructureMap makes it easier for you to visualize the underwater environment in relation to your position and aids the user in interpreting sidescan sonar images.

  • Page 2: Selecting Structure Source

    Turning on Structure overlay Selecting Structure Source StructureMap can be used in Live mode or Saved mode. Live mode allows you to view real-time StructureMap data on the screen. Saved mode is used to display StructureMap data previously saved to a SD card or the unit’s internal memory.
  • Page 3 the history length that will show up behind the vessel icon. Typically it will display the last 4-5 minutes of recording. Live mode allows the user to quick- ly identify interesting areas of the lake and how they relate to vessel position. It also allows the user to scroll back and zoom in on a recently scanned areas of the lake to look at additional details of what was scanned.

  • Page 4: Converting Files

    Accessing StructureMap files on SD card All StructureMap files on your SD card or in the unit’s internal memory will automatically appear on the screen when Saved mode is selected. Recording Structure data To record structure data, steer your boat over an area and select Log Sonar data from the Structure Options menu.

  • Page 5: Scanning Fishing Areas

    Sharing files After structure sonar log (.sl2) files are converted to StructureMap (.smf ) files, they can be saved to a SD card and used on other GPS capable HDS Gen 2 units without the need for the LSS-1 StructureScan module. Scanning Fishing areas With the Structure Source set to the default Live mode, steer the boat over the desired location to scan the area.

  • Page 6: Using Structuremaps With Mapping Cards

    Using StructureMaps with mapping cards StructureMap allows you to maintain full chart capability and can be used with embedded cartography as well as Navionics, Insight and other third- party charting cards compatible with HDS units. To view StructureMap data with other mapping card data on an HDS-8 or HDS-10, place the mapping card in one card slot and the SD card with the StructureMap file in the other slot.

  • Page 7: Structure Options

    Accessing Structure Options Structure options: Range — • Adjusts the width of the sidescan history trail. The greater the range setting, the wider the StructureMap history trail; Lower range settings reduce the width of the history trail. • Transparency — Increases/decreases the visibility of Structure overlay on top of the map.

  • Page 8: Visit Our Website

    Visit our website: www.lowrance.com © Copyright 2011 *988-10175-001* All Rights Reserved Navico Holding AS...
