Linn KUDOS SNEAKY Installation Instructions

LINN KUDOS SNEAKY UPGRADE IN LINN MAJIK / WAKONDA
1. Unpack and check the contents of your KUDOS Sneaky upgrade kit.
Contents list :- 1x KUDOS tuner PCB
2. On a clean bench, and with a protective pad to protect the facia, turn the MAJIK / WAKONDA upside down,
remove the four screws and slide
off the outer sleeve.
3. With the MAJIK / WAKONDA sitting
on its feet again, remove the two
screws on the back-panel, and take
off the Sneaky slot blanking plate.

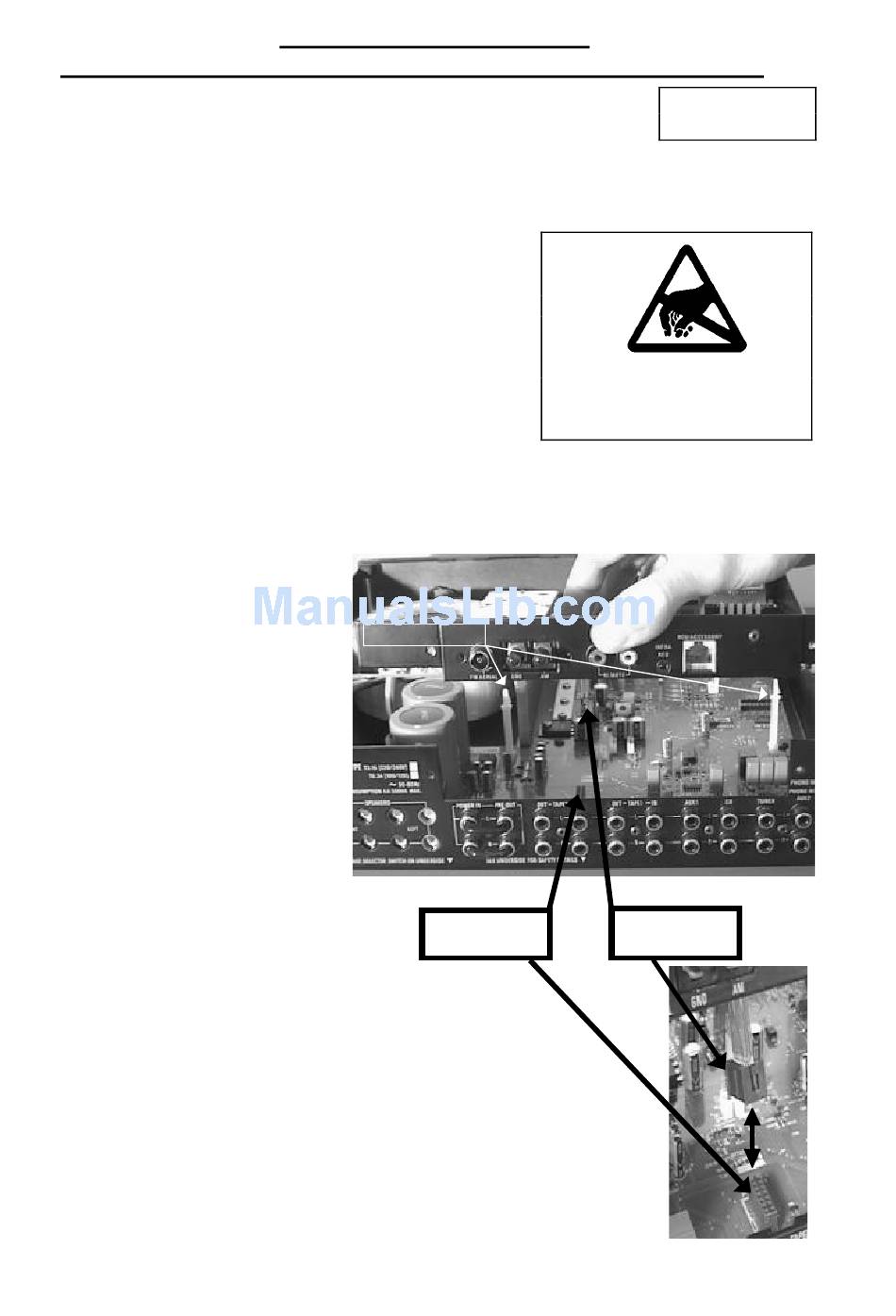

4. Push-fit the two white plastic stand-
offs into the holes in the MAJIK /
WAKONDA main PCB until they
audibly 'click' and lock into position.
(See photo 1)
5. Push the extension connector into the holes on the underside of the KUDOS
tuner PCB. (See photo 2) It is important to fit this connector first to the KUDOS
tuner PCB, and not to the MAJIK / WAKONDA main PCB, otherwise the pins may
be damaged on assembly.
PACK 222

INSTALLATION INSTRUCTIONS

1x KUDOS control PCB
1x Control area mounting plate
2x Nylon Stand offs
1x Display window
1x 11-buttons assembly
1x Extension connector
2x Ribbon cables
1x Display legends label
4x Push-on rivet washers
3x Spare M3 screws (black)
2x Shake-proof washers
4x Spare 'Taptite' screws (black)
2x Nylon insulating bushes.
4x Shorting links -
1 x Used to disable sleep option (point 21)
3 x Used to configure the KUDOS for use in USA, see page 4)
STAND-OFFS
PAGE 1
Tools required : No.1 Pozi screwdriver
Use anti-static precautions
including work station. If this is
not possible - Ground yourself!
See Service Manual 5.8 for details
EXTENSION
SOCKET
Time required :
45 minutes
Small pliers
5 mm Nut-runner
Multi-Meter
Photo 1
EXTENSION
CONNECTOR
Photo 2
KUDOS5.DOC
Mar 97
