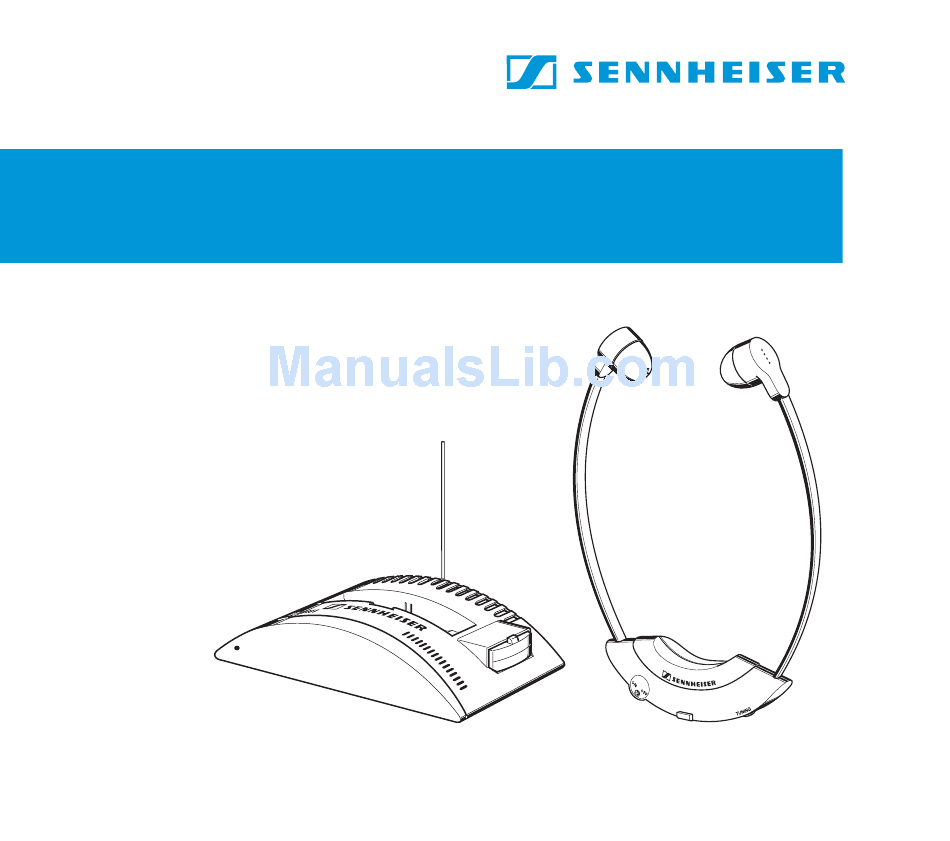

- Page 1 RS 2400 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 Bedienungsanleitung .............................3 Instructions for use.............................. 14 Notice d’emploi..............................27 Istruzioni per l’uso ............................... 40 Instrucciones para el uso ............................ 53 Gebruiksaanwijzing ............................. 66...
- Page 3 Sennheiser products quickly and to the fullest. Area of application With the RS 2400 stethoset receiver system you can listen to high-quality stereo TV sound without disturbing others. The RS 2400 has been specially designed for this purpose but can also be used with any other sound source fitted with a headphone socket.
- Page 4 System components and operating elements...
- Page 5 With this RF stethoset receiver system you can move around freely in the home or outside in the garden without the constrictions of a cable! The RS 2400 will transmit the stereo sound signal from your TV set to the stethoset receiver.
-
Page 6: Putting The Transmitter Into Operation
Where to place the transmitter Choose a suitable place near your TV set. Attention! Some furniture surfaces have been treated with varnish, polish or synthetics which might cause stains when they come into contact with other synthetics. Despite a thorough testing of the synthetics used by us, we cannot rule out the possibility of discolouration, since we don’t know your furniture. - Page 7 Automatic on/off switching The transmitter features a convenient automatic on/off function. When an audio signal rea- ches the transmitter, it is switched on and the LED at the front of the transmitter lights up green. The LED also indicates that an accupack is being recharged. When a stethoset recei- ver or an accupack is inserted into a charging compartment, the LED lights up red.
-
Page 8: Putting The Receiver Into Operation
Optimum modulation level of the transmitter First, set the volume of your TV set to a medium value. The TR 2400 transmitters is fitted with an automatic modulation control which prevents overmodulation of the transmitter. The LED at the front of the transmitter indicates optimum modulation. - Page 9 Set the volume control on the receiver to a medium value (position 3–4). Slowly turn control (“TUNE”) on the stethoset receiver until you can hear the audio signal loud and clear. The receiver’s AFC (Automatic Frequency Control) circuitry stabilises your adjustment.
- Page 10 Important Only use the transmitter with a suitable Sennheiser mains unit. Always disconnect the mains connector when you wish to change connections or move the device to a different place. Never open electronic devices! This must only be done by authorised personnel and is all the more valid for repairs on current-carrying units.
- Page 11 What to do if..the volume is up but you There is no audio signal available. Check the transmitter cannot hear anything: connection. Is the volume at the headphone socket of your sound source sufficient? Are you still within the transmitter’s range? Is the receiver on the same frequency as the transmitter? ...
- Page 12 Accessories BA 151 Rechargeable accupack as a spare, for use when the supplied accupack is being recharged. L 151-2 Charger for recharging two BA 151 accupacks (recommended when more than two stethoset receivers are used with one transmitter). RR 2400 Additional stethoset receiver Rechargeable accupacks have a "charging cycle"...
- Page 13 If an accupack should be defective or has been damaged due to total discharge, it is then recycled – the dealer who sold it to you will take it back and will also supply you with a new, original Sennheiser accupack. (Recycling methods differ in different countries.) According to today’s scientific knowledge, the radio waves emitted by this device are by no...
-
Page 14: Technical Data
Technical data RS 2400 system Modulation FM stereo Range up to 100 m Audio frequency response 50–12,000 Hz < Frequency range see type plate located on the bottom TR 2400 transmitter Power supply 12 V DC via plug-in mains unit Power consumption approx. -
Page 15: Manufacturer Declarations
Manufacturer declarations Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the ap- plicable CE standards and regulations. Batteries or rechargeable batteries Please dispose of batteries or rechargeable batteries as special waste or return them to your spe- cialist dealer. - Page 16 Deze gebruiksaanwijzing is even groot als de hoes van een CD. Bewaar deze in het opbergsysteem voor uw CD’s. Dan heeft u hem altijd bij de hand, voor het geval u iets wilt nalezen. Sennheiser electronic GmbH & Co.KG 30900 Wedemark, Germany...
