Summary of Contents for Fisher-Price T0250

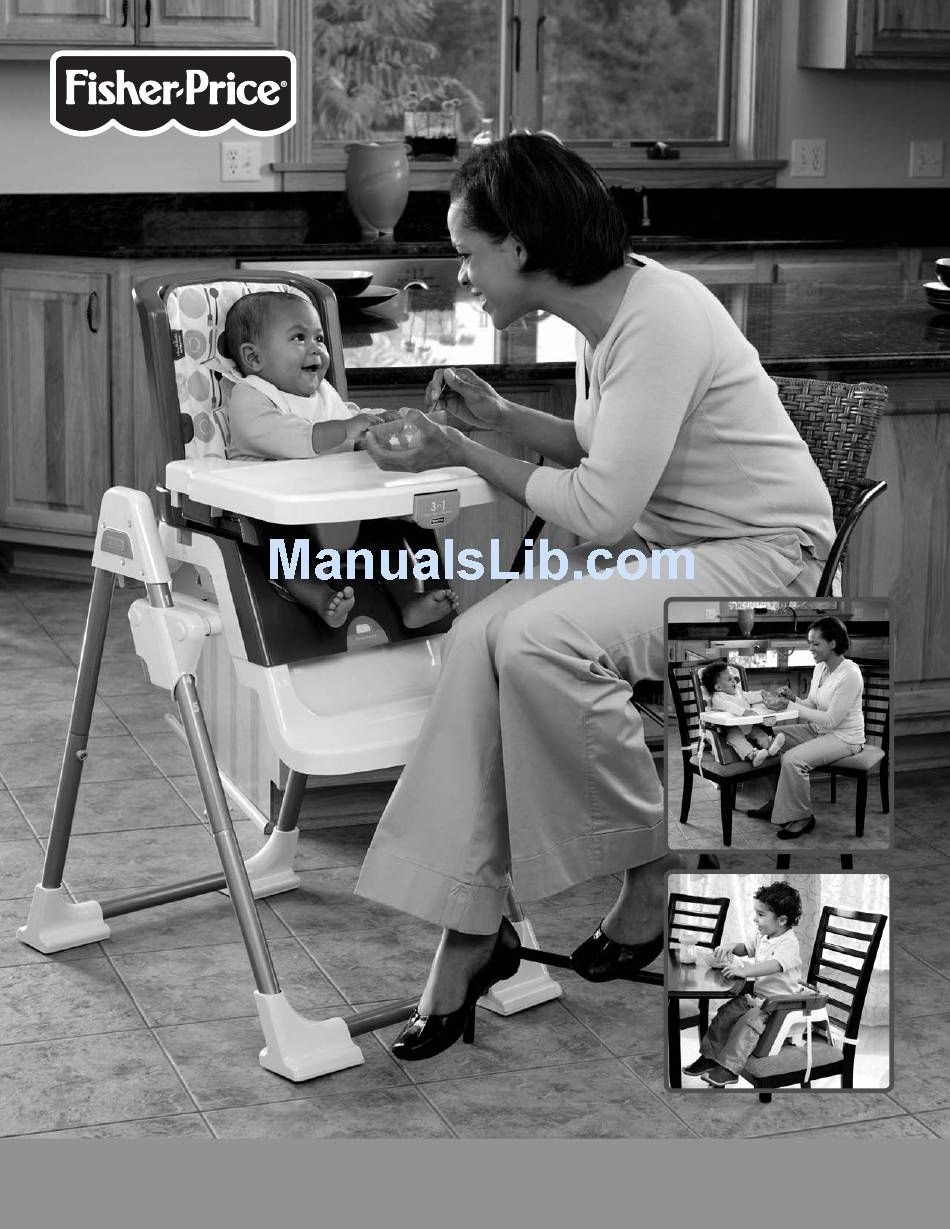

- Page 1 T0250 www.fi sher-price.com...
-
Page 2: Consumer Information
• Only use for a child capable of sitting upright unassisted. • NEVER leave child unattended. High Chair Use: • ALWAYS secure child with restraint belts adjusted to fi t your child snugly. The tray is not designed to hold child in the product. - Page 3 IMPORTANT! Please remove all parts from the package and identify them before assembly. Front Base Hint: Do not remove the plastic inserts inside the tubes of the front base. Footrest Seat Back with Restraint 2 Frames Hint: Do not remove the plastic insert inside the tube in each frame.
- Page 4 Never substitute parts. Tapered Frame Tube Rear Base ® With the Fisher-Price logo facing out, fit the tapered frame tube into the rear base. Assembly • Fit a #8 x ¾" screw with retainer into the rear base and tighten.
- Page 5 Front Base • Fit the front base into the frame tubes. • Insert two #8 x ¾" screws with retainers into the holes in each frame tube and tighten. Hint: If you cannot insert the screws into the frame tubes, you have assembled the front base backwards.
- Page 6 Seat Support Left Bracket • Turn the frame over with the footrest facing away from you. • First fit the left bracket (labeled 1) onto the seat support tube closest to you • Then, slide the left bracket completely onto the seat support Hint: The brackets are designed to fit each side of the seat support one way.
- Page 7 Slot • At an angle, fit the tabs on the seat back into the slots in the seat. • Push the seat back to “snap” in place. • Pull on the seat back to be sure it is secure to the seat bottom. •...
- Page 8 Seat Back Pad • Pull the ends of the shoulder belts through the slots in the seat pad. • Fit the straps on the back of the seat back pad into the slots in the seat back pad. • Press to fasten the straps to secure the seat back pad. •...
-
Page 9: Securing Your Child
• Only use for a child capable of sitting upright unassisted. • NEVER leave child unattended. High Chair Use: • ALWAYS secure child with restraint belts adjusted to fi t your child snugly. The tray is not designed to hold child in the product. - Page 10 Waist/Shoulder Belt Crotch Belt • Place your child in the seat. Position the crotch belt between your child’s legs. • Fasten both waist/shoulder belts to each side of the crotch belt. Make sure you hear a "click" on both sides. •...
-
Page 11: Using The Tray
WARNING Prevent serious injury or death from falls or sliding out: • ALWAYS secure child with restraint belts adjusted to fi t your child snugly. The tray is not designed to hold child in the product. Tray • Fit the tray onto the seat armrests. Push down until the tray "snaps"... -
Page 12: Adjusting The Seat
Adjusting the Seat PRESS Seat Height Adjuster To adjust the seat height: • Press the levers on both seat height adjusters and lift or lower the seat to any of five different heights. • Make sure both sides of the seat are adjusted to the same height. - Page 13 Latch • While sliding the switch pull the latch towards you • Lift the seat off the base. Attaching To An Adult Chair • Turn the seat over. • Slide the door open and pull out the chair attachment straps. •...
- Page 14 Attaching To An Adult Chair • Turn the seat over and place the seat on a chair. • Wrap the bottom straps around the bottom of the chair Buckle the straps . Make sure you hear a "click". Pull the free end of each strap to tighten on the chair •...
- Page 15 • Fit the seat onto the high chair frame. Push to "snap" into place. Pull up on the seat to be sure it is secure to the high chair frame.
- Page 16 CANADA Mattel Canada Inc., 6155 Freemont Blvd.,Mississauga, Ontario L5R 3W2. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052, U.S.A. ©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. PRINTED IN MEXICO...
