Your palm nailer has been engineered and manufactured to our high standards for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID
SAVE THIS MANUAL FOR FUTURE REFERENCE

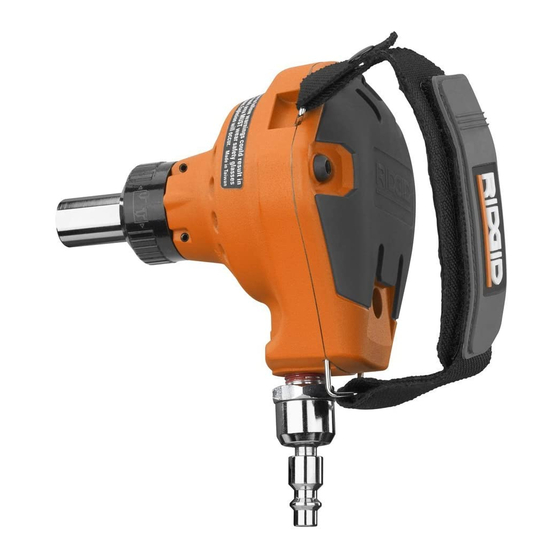

OPERATOR'S MANUAL
PALM NAILER
R350PNA
product.
®


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R350PNA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIDGID R350PNA

Summary of Contents for RIDGID R350PNA

  • Page 1 When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product. Thank you for buying a RIDGID product. ®...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS  Introduction ..................................  General Safety Rules ...............................3  Specific Safety Rules ...............................4  Symbols ...................................5  Glossary of Terms................................6  Features ...................................7  Assembly ..................................8  Operation ................................... 8-  Maintenance ..................................  Accessories ...................................3  Troubleshooting ................................3  Warranty ..................................4  Customer Service Information .........................

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES  Keep fingers away from trigger when not driving fasten- DANGER: ers to avoid accidental firing.  Do not overreach. Keep proper footing and balance READ AND UNDERSTAND TOOL LABELS AND at all times. Proper footing and balance enables better MANUAL.

  • Page 4: Specific Safety Rules

    SPECIFIC SAFETY RULES  Know your pneumatic tool. Read operator’s manual carefully. injuring you or a co-worker. Be aware that the nail may Learn its applications and limitations, as well as the specific follow the grain of the wood, causing it to protrude un- potential hazards related to this tool.

  • Page 5: Symbols

    If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call RIDGID customer service. WARNING: The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage.

  • Page 6: Glossary Of Terms

    GLOSSARY OF TERMS Activate (operating controls) Air inlet port To move an operating control so that it is in a position that In an air tool, the opening to which the compressed air supply allows the tool to be actuated or that satisfies one require- is connected, usually by means of a threaded fitting.

  • Page 7: Features

    FEATURES PRODUCT SPECIFICATIONS Operating Pressure..............................50-0 psi Air Inlet ................................../4 in. NPT Fastener Range ........................Common Bulk Nails 4d - 6d Fastener Length ............................ / in.-3 / in. Weight ...................................7 lbs. HAND STRAP QUICK-CONNECT SWIVEL CONNECTOR DEPTH OF DRIVE ADJUSTMENT NOSEPIECE Fig.

  • Page 8: Assembly

    ASSEMBLY UNPACKING This product has been shipped completely assembled. WARNING: If any parts are damaged or missing, do not  Carefully remove the tool and any accessories from the operate this tool until the parts are replaced. box. Make sure that all items listed in the packing list are included.
  • Page 9 OPERATION PREPARING THE TOOL FOR USE See Figure 2. Under normal use conditions, the tool should be lubricated before connecting the tool to an air supply. Add air tool lu- AIR FITTING bricant into the air fitting on the tool once daily with minimal use, or twice a day with heavy use.
  • Page 10 OPERATION LOADING THE TOOL WITH NAILS See Figures 3 - 4. AIR HOSE CONNECTOR WARNING: The tool’s driving mechanism may cycle when the tool is first connected to the air supply. Always connect the tool to the air supply before loading nails to prevent injury from unintended cycling.
  • Page 11 OPERATION DRIVE DEPTH ADJUSTMENT See Figure 5. The driving depth of the nail may be adjusted. It is advisable to test the depth on a scrap workpiece to determine the required depth for the application. To determine depth of drive, first adjust the air pressure and drive a test nail.

  • Page 12: Maintenance

    Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection When servicing use only identical RIDGID will lubricate the internal parts. Do not use detergent oil or replacement parts. Use of any other parts may additives as these lubricants will cause accelerated wear create a hazard or cause product damage.

  • Page 13: Troubleshooting

    ACCESSORIES To order parts and maintenance kits, call -866-539-70. Driver maintenance kit .............................0790900034 Overhaul Kit ..............................0790900035 WARNING: Current attachments and accessories available for use with this tool are listed above. Do not use any attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended can result in serious personal injury.

  • Page 14: Warranty

    This product is manufactured by One World Technologies, fects arising under normal usage and does not cover any Inc. The trademark is licensed from RIDGID, Inc. All warranty malfunction, failure or defect resulting from misuse, abuse, communications should be directed to One World Technolo- neglect, alteration, modification or repair by other than an gies, Inc., attn: RIDGID Pneumatic Tool Technical Service at...
  • Page 15 NOTES...

  • Page 16: Customer Service Information

    OPERATOR’S MANUAL PALM NAILER R350PNA Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be ® sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call -866-539-70 or visit us online at www.ridgid.com.
