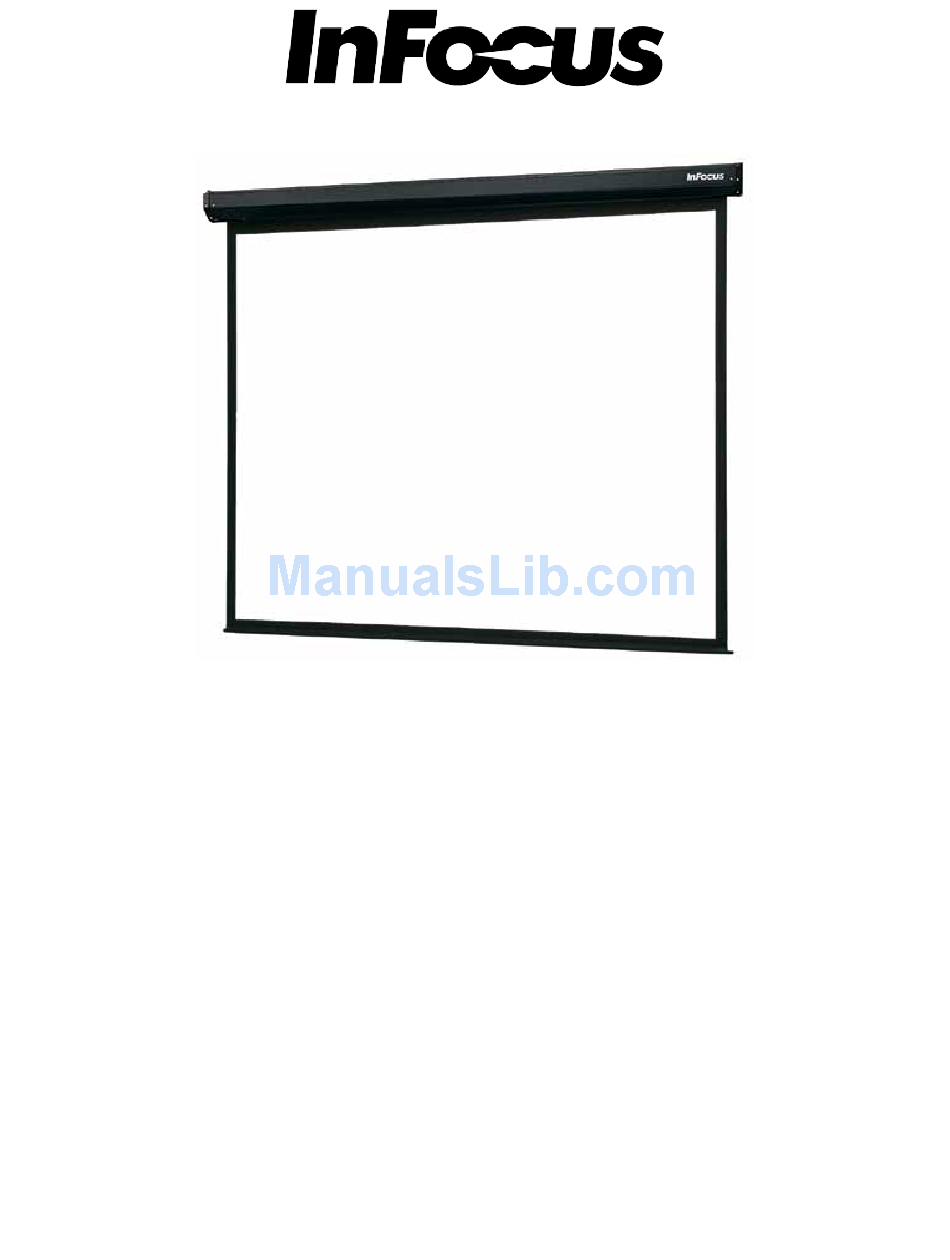

- Page 1 INSTALLATION INSTRUCTIONS FOR MOTORIZED WALL/CEILING SCREEN SC-MOT-84 SC-MOT-100 SC-MOT-120 SC-MOTW-94 SC-MOTW-113 SC-MOTW-130 InFocus Corporation 13190 SW 68th Parkway Suite 200 Portland, OR 97223 www.InFocus.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using. 2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces. 3.
- Page 3 INSTALLATION Overall length A=fabric width + 8". 3/4" DIAMETER HOLE FOR Length B is the distance between wall mounting holes WALL INSTALLATION at back of end caps and is the fabric width + 6-1/2". MOTOR END 4" 4" FABRIC HEIGHT x WIDTH AS ORDERED, UP TO 12 FEET x 12 FEET.
- Page 4 INSTALLATION WIRING ENCLOSURE COVER 120V WIRING DIAGRAM TO JUNCTION BOX, MOUNTED IN SCREEN CASE, IN WHICH INTERNAL WIRING TERMINATES IN WHITE, DOWN BLACK AND RED LEADS WHITE LIMIT SWITCH ADJUSTMENT BLACK ROCKER SWITCH WHITE OPERATING SWITCH AND IN MULTIPLE CONTROL INSTALLATIONS DOWN BLACK WITH PLATE FURNISHED WITH...
- Page 5 TROUBLESHOOTING SOLUTION SYMPTOM CAUSE 1. Screen will not operate. (a) Incorrect line voltage. (a) Verify 115-125V (or 220-240V). If Motor does not hum. insufficient voltage, rewire incoming electric line. (b) Replace fuse. (b) Blown fuse. (c) Tripped circuit breaker. (c) Reset circuit breaker. (d) No power to operating switch or (d) Check above.
- Page 6 LIMITED ONE YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser provided they are properly operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the factory.
