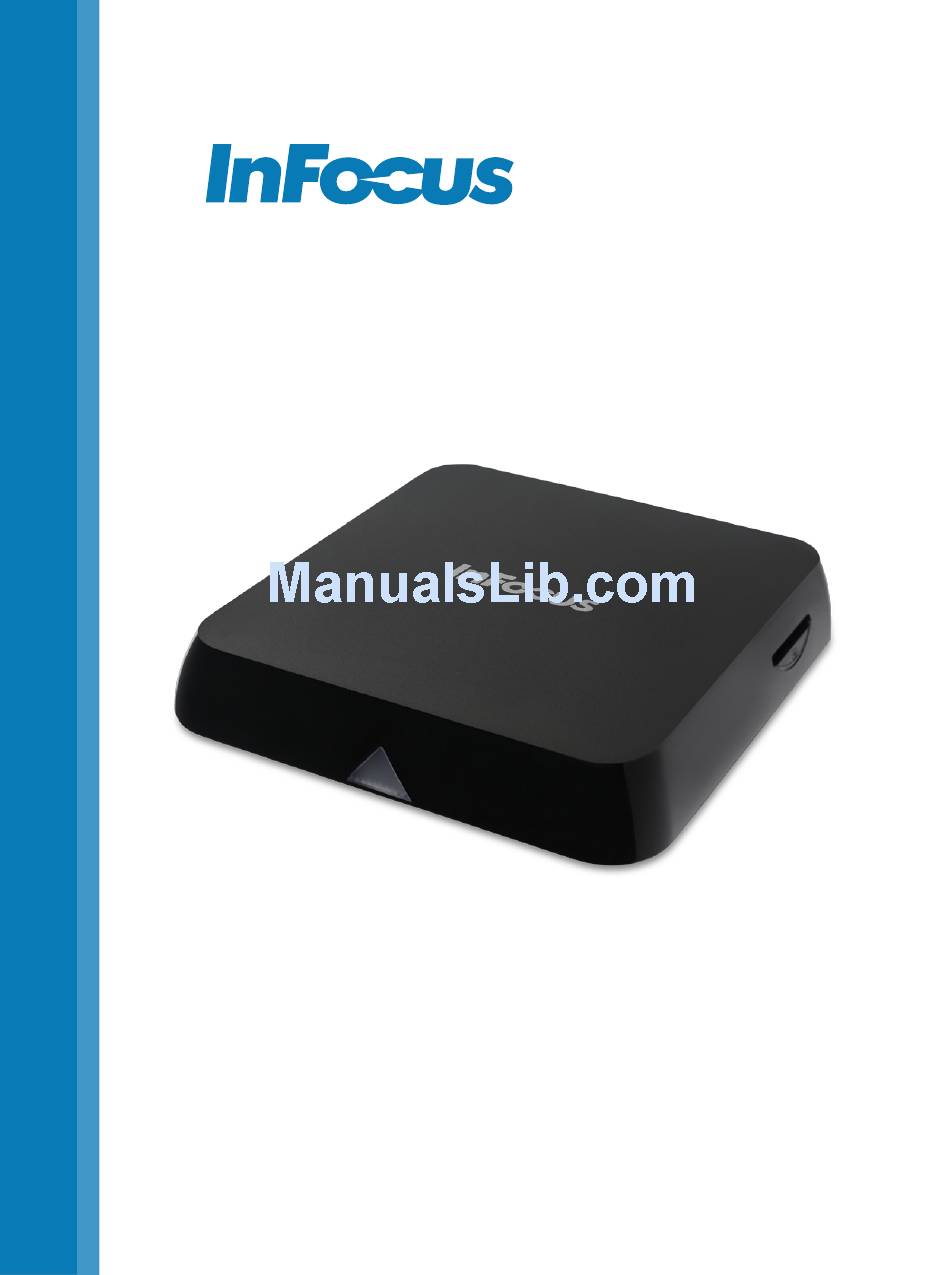

INA-AWB
User Guide
009-1671-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INA-AWB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InFocus INA-AWB

Summary of Contents for InFocus INA-AWB

  • Page 1 INA-AWB User Guide 009-1671-02...

  • Page 2: Table Of Contents

    Contents Preface Statements Declaration of Conformity System Introduction Key features Environment for system Accessories Remote Control System Connection Mounting Startup Home My Apps Whiteboard Create a drawing Add text Import an image Modify objects Navigate the whiteboard canvas Clear the canvas Save the whiteboard canvas Open a new whiteboard canvas Open a saved whiteboard canvas...
  • Page 3 Whiteboard tools Settings Network Display Advanced Other Troubleshooting Limited Warranty Specifications...

  • Page 4: Preface

    Preface Thank you for choosing the InFocus Android module. In order to make it more convenient for you to use proficiently, we provide you with this user manual. Please read it carefully before using and keep it in a safe place for future reference.
  • Page 5 HDMI Licensing LLC. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference.

  • Page 6: System Introduction

    Support standard RJ45 cable network connection and wireless network connection. • Support infrared remote control operation. Environment for system Operation: Temperature limitation: 0-40° C; Humidity limitation: 20-80%. Storage: Temperature limitation: -20-50° C; Humidity limitation: 10-90%. INA-AWB User Guide Page 5...

  • Page 7: Accessories

    Accessories • International power cord with country-specific adapters • Remote control (no batteries are included) • HDMI cable • Velcro strips (3) • User manual Page 6...

  • Page 8: Remote Control

    APP: Not functional on this model. VOL: Click to decrease/increase the volume. Home: Click to get back the main menu. Return: Click to return back to previous menu. Navigation: Click to navigate left/right/up/down, and click OK to confirm your selection. INA-AWB User Guide Page 7...
  • Page 9 Menu: Click to choose function menu of corresponding application in video, music, photo and website. Mouse: Click to use the navigation button as a mouse. Number: Click to select a number. Mute: Click to turn down the volume. Backspace: Click to backspace the input.

  • Page 10: System Connection

    System Connection Connect to InFocus touch display Connect to InFocus touch display HDMI cable AV cable Optional: Ethernet cable Connect USB cable to InFocus touch display Router Power adapter INA-AWB User Guide Page 9...

  • Page 11: Mounting

    Note: When mounted to the back of the display, we recommend using the display to control the Android module instead of the remote. Startup Turn on the InFocus Android module when the indicator light is blue. The main menu appears in about 30 seconds. Page 10...

  • Page 12: Home

    Home From the home page, you can access a number of features using the shortcuts at the bottom of the screen. Settings Browser My Apps Calendar App Installer Whiteboard File Browser Gallery Movie Player INA-AWB User Guide Page 11...

  • Page 13: My Apps

    My Apps This is where all installed applications and widgets can be accessed. Note: InFocus only supports the Whiteboard application. InFocus does not design or support any other Android applications and widgets. Android applications and those found in the Play Store are supported by their associated manufacturers.

  • Page 14: Whiteboard

    Draw on the whiteboard canvas with your finger or a stylus. TIP: Keep other objects, including writing utensils, other fingers, and knuckles away from the drawing surface to draw your image cleanly. Use Erase, Select, Undo, and Re-do to modify the drawing. INA-AWB User Guide Page 13...

  • Page 15: Add Text

    Add text Tap Text in the Tools submenu Tap the screen where you want the text box to be. A text box opens. Adjust the font family, type, size, and color, as desired. Using either a keyboard or the on-screen keyboard, type your text.

  • Page 16: Modify Objects

    1/2 page in the direction of the arrow. If the arrow is gray, you have reached the maximum edge of the canvas. Tap any cell in the map to move directly to that page. INA-AWB User Guide Page 15...

  • Page 17: Clear The Canvas

    Clear the canvas Tap Clear to remove all whiteboard data from the entire whiteboard canvas. Save the whiteboard canvas Tap More. Tap Save to save it to the unit, or tap USB to save it to a USB thumb drive. Type a file name in the Name text box.

  • Page 18: Open A New Whiteboard Canvas

    USB thumb drive, tap the USB icon at the top of the Open Files window, and navigate to the desired USB thumb drive. Navigate to the desired folder and tap the file you wish to open. INA-AWB User Guide Page 17...

  • Page 19: Whiteboard Tools

    Whiteboard tools Icon Tool Description Name Previous Tap to go to the previous page. Current Tap to use the current tool. tool Eraser Tap Eraser, and then tap and drag across the drawing object to erase the portion you touched. Color Tap to access the color sub- Wheel...
  • Page 20 Tap to use a pen. NOTE: Opac- ity control is not available for the pen object. High- Tap to use a highlighter. lighter Rectangle Tap to draw a rectangle. Circle Tap to draw a circle. Line Tap to draw a line. INA-AWB User Guide Page 19...
  • Page 21 Text Tap Text. Then tap the existing text object, or another area on the screen where you want a new text box to be placed, and adjust the placement, font size, color, and type attributes as desired. Type your text and tap OK.
  • Page 22 Undo Tap to reverse the last executed command. Redo Tap to reverse the last Undo command. Clear Tap to clear the drawing objects from the whiteboard canvas. More Tap to access additional menu submenu features. INA-AWB User Guide Page 21...
  • Page 23 Canvas Tap to open the canvas tool, which allows you to navigate between pages. Tap to open a new whiteboard canvas. Open Tap to open a saved file. Save Tap to save the file as a JPG image or PDF file. Paste Tap to paste the last copied or cut object(s) on the whiteboard...

  • Page 24: Settings

    Click OK to choose your Wi-Fi network and enter with your password. After authenticating the IP address, when connected is shown, Wi-Fi is available. Note: Sometimes Wi-Fi is unstable. If the WiFi connection fails, please try again. INA-AWB User Guide Page 23...
  • Page 25 Ethernet If the Ethernet check box is checked, the system scans for Ethernet connections automatically. Page 24...

  • Page 26: Display

    Display Navigate to Settings > Display. You can select the HDMI audio output mode, turn the status bar on or off, adjust the display position, and choose the screen saver start time. INA-AWB User Guide Page 25...

  • Page 27: Advanced

    Advanced Navigate to Settings > Advanced. You can control the remote control, Google TV Remote, CEC control, orientation, and digital audio output. Page 26...

  • Page 28: Other

    Other Navigate to Settings > Other to see more InFocus Android module information. You can also update firmware and change other settings here. INA-AWB User Guide Page 27...

  • Page 29: Troubleshooting

    Under no circumstances should you try to repair the InFocus Android module by yourself, as this will invalidate the warranty. Do not open the InFocus Android module as there is a risk of electrical shock. If a fault occurs, first check with points listed below before taking the InFocus Android module for repair.
  • Page 30 InFocus Android module. Change the audio codec. The box does not • Aim the remote control directly at the respond to the sensor on the front of the InFocus An- remote control droid module. • Reduce the distance to the InFocus Android module.
  • Page 31 USB flash images on the USB flash drive. drive The InFocus • Turn off the InFocus Android module. Wait touch display 30 seconds, and then turn the InFocus screen is blank Android module back on. and the InFocus •...

  • Page 32: Limited Warranty

    Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or refurbished parts that are equivalent to new in performance and reliability, (2)
  • Page 33 InFocus, may provide their own warranties to the end user purchaser, but InFocus, in so far as permitted by law, provides their products “AS IS” without the InFocus Limited Warranty. Software distributed by InFocus with or without the InFocus brand name (including, but not limited to system software) is not covered under this Limited Warranty.
  • Page 34 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced. In addition, LCD burn-in as a result of excessive display of static images on the product is not covered under the terms of this Limited Warranty.
  • Page 35 TIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIP- MENT AND PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH THE INFOCUS PRODUCT AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. THE...
  • Page 36 CSR part whether a defective part must be returned to InFocus. In cases where it is required to return the defective part to InFocus, you must ship the defective part back to InFocus within a defined period of time, normally five (5) business days, and clearly display the Return Material Authorization (RMA#) on the outside of the shipping carton or a similar package affording an equal degree of protection.
  • Page 37 InFocus and you agree to follow instructions, including arranging the return of original product or part to InFocus in a timely manner. When providing a product exchange or Customer Self Repair (CSR) part requiring the return of the original product or part, InFocus may require a credit card authorization as security for the retail price of the replacement product or part and applicable shipping costs.
  • Page 38 Service Provider locations is available at: www.infocus.com/support. InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland, OR 97223-8368 USA © 2017 InFocus Corp. All rights reserved. InFocus and the InFocus logo are trademarks of InFocus Corp., registered in the U.S. and other countries.

  • Page 39: Specifications

    Specifications On-line video (IPTV Many IPTV programs, all standard IPTV and OTT TV programs) software and popular on-line video web- sites based on the Android system (such as YouTube, Netflix, local satellite TVs, sports, finance, etc.). It can also connect to your designated websites.
  • Page 40 Weight .56 lbs / 256g Electrical range 1.0V +/-0.1V (75 Ω overload); S/N≥55dB (video) Electrical range 2.0V +/-0.2V (10k Ω overload); S/N≥85dB (audio) Power Supply 5V DC; 2A This specification may be modified without notice. INA-AWB User Guide Page 39...
