InFocus HW-NAVIGATOR-3 Manual

Batteries: The remote uses two (2) AA batteries. Install batteries by removing the cover from the back of the remote, aligning the
+ and - ends of the batteries, pushing them into place, and replacing the cover.
Operation: Point the remote at the projector or at the screen (not at the video source or computer). The maximum operating
distance is 30 feet (9.14m).

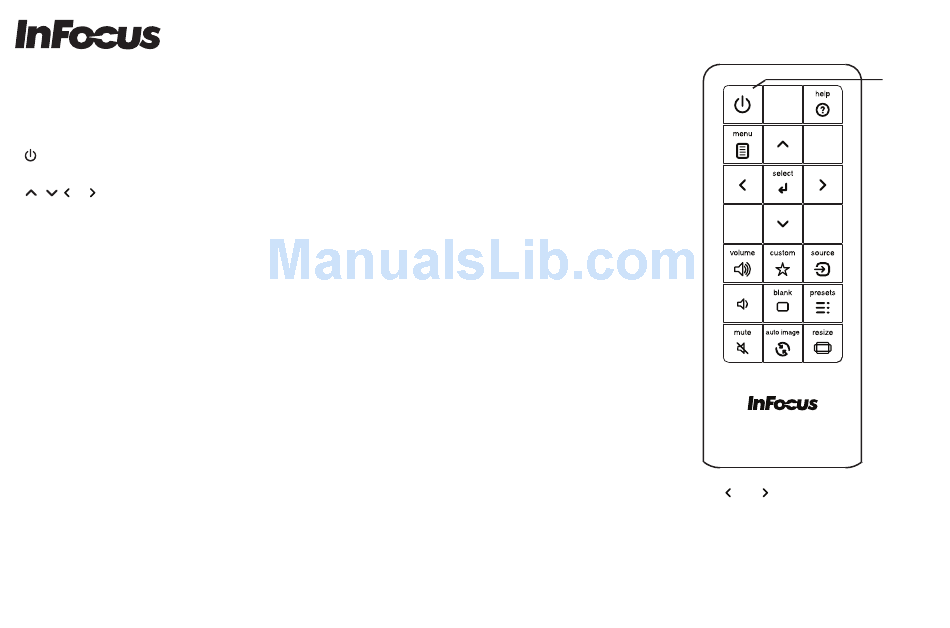

Buttons and controls: Refer to your projector's reference guide for details on remote functions.
• - turns the projector on and off
• Help* - shows interactive help for common picture and connection problems
• Menu - shows the projector's menu system
• , , *, * - navigate menu items and adjust settings (also can be used for controlling presentations**)
• Select - confirm menu choices
• Volume - adjusts sound level
• Custom - can be assigned a special function (older projectors may call this Effect instead)
• Source - switches between sources
• Blank - shows a blank screen instead of the source
• Presets - selects stored settings
• Mute - mutes sound
• Auto Image - resynchronizes the projector to the source
• Resize - changes the aspect ratio
Warranty
90 day limited warranty from date of purchase.
Troubleshooting
• Make sure batteries are installed in the correct orientation and are not dead.
• Make sure you're pointing the remote at the projector or screen (not at the video source or computer), and make sure you're
within the remote range of 30 feet (9.14m).
• If presentation or mouse functions aren't working, make sure there is a USB or DisplayLink connection between the projector
and computer. See projector reference guide for more information about USB connection.
< >
• If Help or or buttons aren't working, make sure your projector supports these functions (the projector must have the same
buttons on its keypad and original remote).
• For online support, go to www.infocus.com/support
Trademarks
DisplayLink is a trademark of DisplayLink Corporation.
InFocus Corporation
13190 SW 68th Parkway
Portland, Oregon 97223-8368 USA
www.infocus.com
Navigator 3 Remote Control
Model: HW-NAVIGATOR-3
*Help, , and keys only function on
supported projectors.
**Presentation functions require a
USB or DisplayLink connection
between the projector and computer.
009-1374-00 *009-1374-00*
power button
