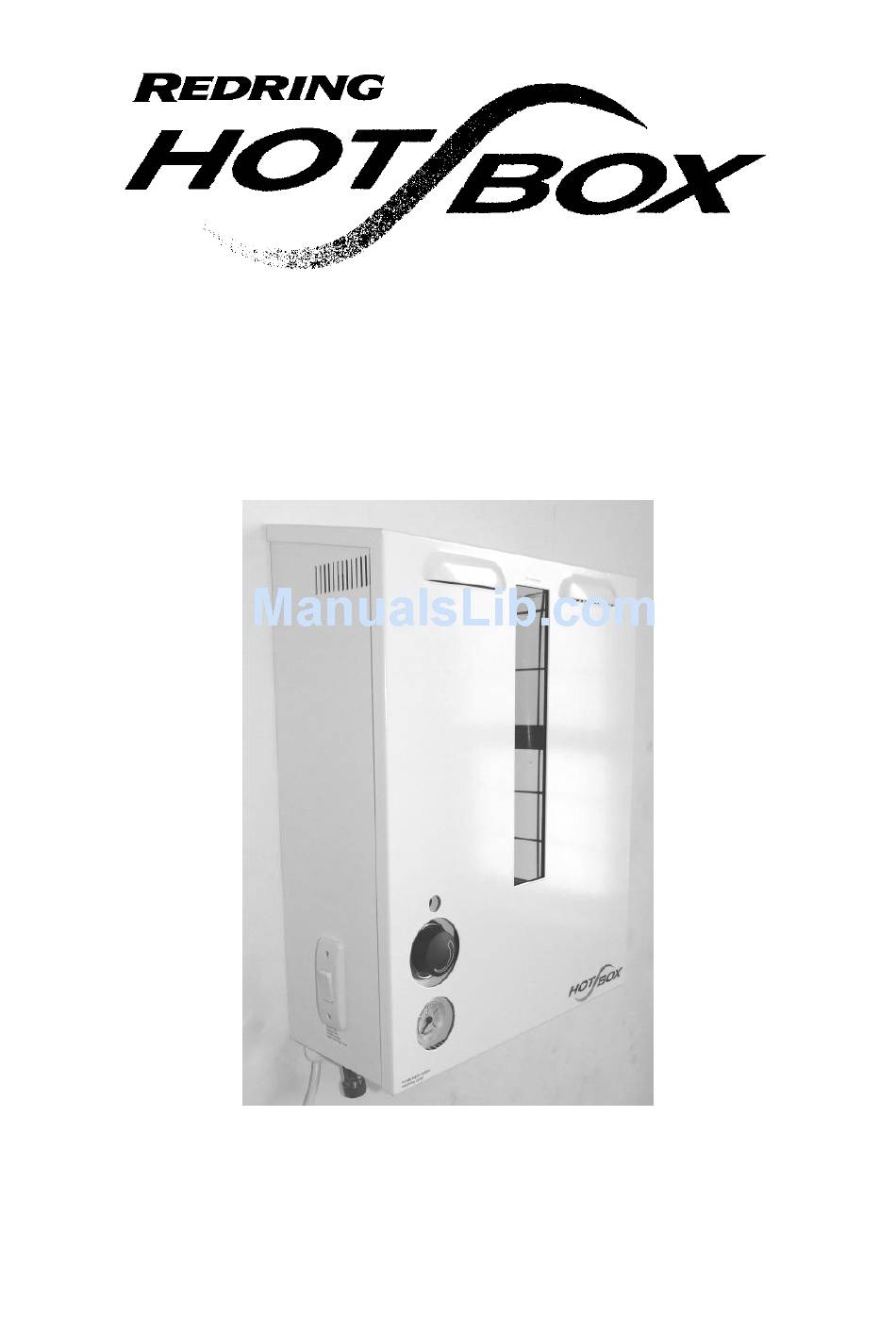

- Page 1 Redring Hotbox Boiler Models L318 and LP330 User and Installer Instructions Please keep these instructions safe, should you move house, please hand them over to the next occupier. COMPLIANT TO : BS EN 60335-2, BS EN 55014-2 and BS EN 50081-1...
-
Page 2: Technical Specification
Redring Hotbox Boiler THE HALOGEN BOILER, L318, LP330 HALOGEN POWERED WALLMOUNTED BOILER USER&INSTALLERS INSTRUCTIONS PLEASE KEEP THESE INSTRUCTIONS SAFE. SHOULD YOU MOVE HOUSE, PLEASE HAND THEM OVER TO THE NEXT OCCUPIER. Introduction The Halogen Boiler is a wall-mounted appliance, suitable for installation onto small sealed heating systems. - Page 3 Overall Dimensions & Minimum Clearances Clearances Operational Maintenance Side Bottom Front Installation Requirements Statutory Requirements The installation should also be in accordance with the relevant recommendations in the current editions of the following British Standards: BS 7074: Pt 1 Expansion vessels and ancillary equipment for sealed water systems BS 5449 Forced circulation hot water systems for domestic premises BS 7671...
- Page 4 If the boiler is to be placed in a cupboard this cupboard should not be used as a storage cupboard. Ventilation should be provided as detailed below. Ventilation This boiler does not require a purpose provided air ventilation in the room, however it does require room air to circulate through the boiler to ensure the convection heat output performance is maintained.
-
Page 5: Installing The Appliance
Example: 30L system total capacity requires an expansion vessel capacity of 30 x 0.0833 = 2.5 litres with a 0.5 bar vessel charge and system cold fill pressure. Filling Point The heating system must be provided with a suitable filling mechanism to both complete the initia l fill and top up the system if necessary. -
Page 6: Commissioning And Testing
Location Before installing the boiler check that the chosen location is suitable, ensuring a dequate clearance is available for both installation and servicing. The appliance must be mounted on a flat vertical wall. Prepare the Appliance Remove the front panel by unscrewing the two screws at the bottom of the case. Rotating the case forwards at the bottom 10 mm and lifting it off in an upward direction. - Page 7 Allow the heating system to reach operating temperature and then examine for water leaks. Turn off the boiler and drain whilst still hot. Refill and vent the heating system ensuring all air is cleared from the system and the cold fill pressure is set at the design pressure.
- Page 8 Replacing a bulb Remove the lid from the bulb box, remove the faulty bulb and replace with a new bulb. Do not touch the bulb with bare fingers, as this will reduce the life of the bulb. Use clean tissue paper or similar to hold the bulb.
-
Page 9: Fault Diagnosis
Replacing the expansion vessel Isolate the boiler using the appliance isolation valves on the flow and return connections to the boiler. Remove the expansion vessel from the pipe work. Refit a replacement expansion vessel in reverse order using a recognised method of sealing the threaded joint. - Page 10 Fault Finding Chart If the radiators do not get hot or do not reach the boiler flow operating temperature follow the guide below to establish the possible cause. Page 10 of 13...
-
Page 11: Wiring Diagram
Wiring Diagram Page 11 of 13... - Page 12 Spare Parts Information Item Part Number Description Quantity 300 W linear halogen bulb Model dependant 97392070 Hot box replacement head 97392071 Pressure relief valve 97392072 Pressure gauge 97392073 Control thermostat 97392074 Limit Thermostat Model dependant 97392075 Overheat thermostat 97392076 Water Pump 97392077 2lt Expansion Vessel 97392078...
- Page 13 GUARANTEE Terms and Conditions for UK & ROI (outside UK & ROI contact your local distributor) We, Applied Energy Products Limited, guarantee this product for domestic use only, for the period of 12 months from the date of purchase. Within the guarantee period we will resolve, free of charge, any manufacturing defects in the product resulting from faulty workmanship or material on condition that:- The appliance has been correctly installed in accordance with our instructions and is being used on the supply circuit or voltage printed on the rating plate,...
