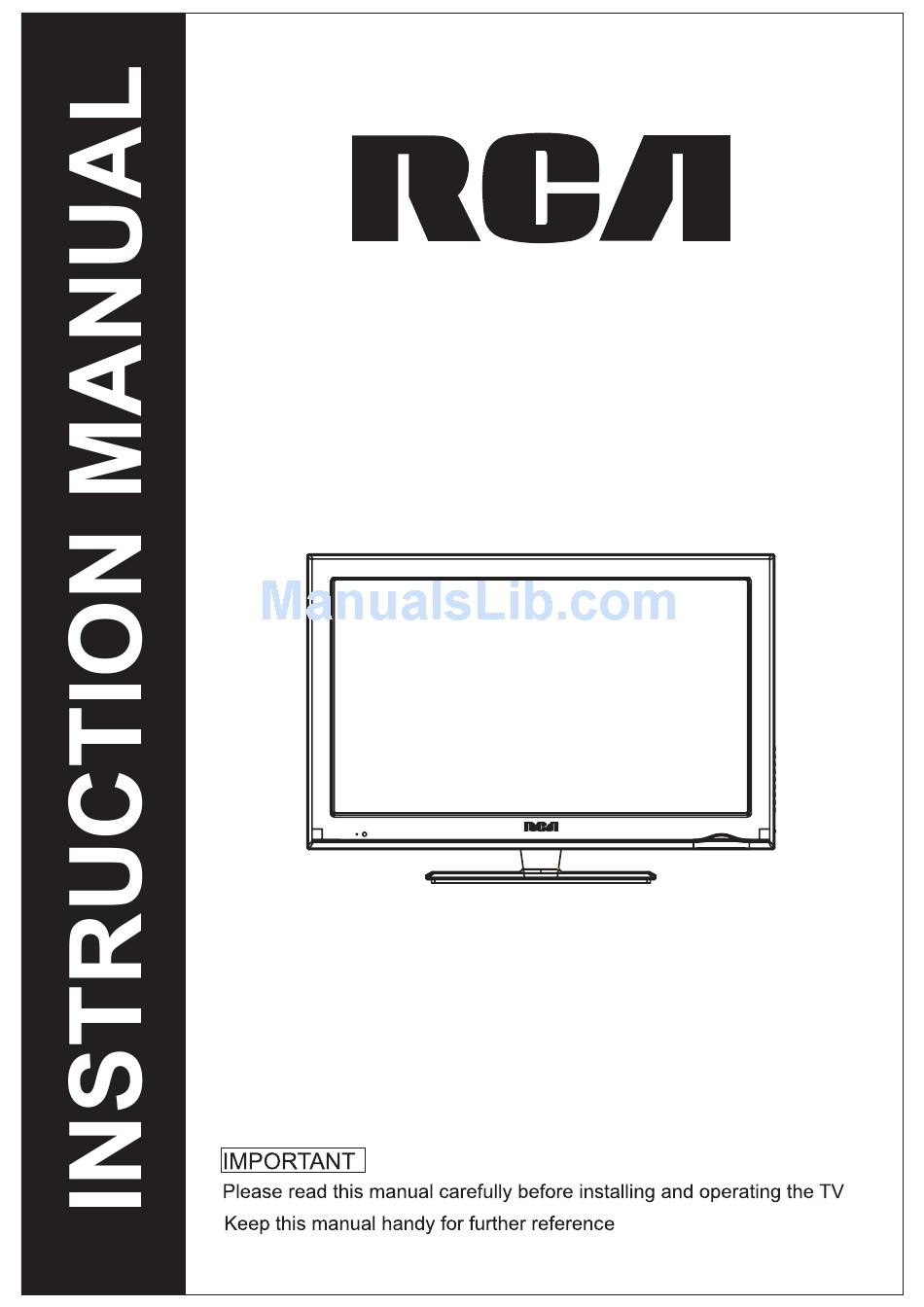

- Page 1 LED TV RLED3218...
-
Page 2: Table Of Contents
Table of Contents Caution ADVANCE 12-13 Sleep Timer Important Safety Precautions TTX Language Auto Format Desktop TV Bracket Installation & Assembly CHANNEL Auto Scan Front/Back panel diagram Fine Tuning Remote Controller Add/Erase Battery Installation Source Using the Remote Control Install TV Multi Window Set your TV Sub Source... -
Page 3: Caution
Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Precautions
Caution: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2 19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). 20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. -
Page 5: Desktop Tv Bracket Installation & Assembly
Desktop TV Bracket Installation & Assembly cloth not include This products can be mounted on the plasterboard wall or other wall . -
Page 6: Front/Back Panel Diagram
16. HDMI2 Input S-VIDEO: Color and brightness 17.USB: For upgrade use only difference components input. AV Output There are two digital RCA transfer cable in the accessory box used for transfer AV IN and AV OUT professionally... -
Page 7: Remote Controller
Remote Controller POWER : Sets your TV to power on or standby mode. MUTE : Press to mute the sound. Press again or press POWER MUTE VOL+ to unmute. 0--9 Press 0~9 to select a TV channel directly while watching TV. -
Page 8: Install Tv
side indicator The Light is red... -
Page 9: Systems Connection
Systems Connection 1.AV INPUT/OUTPUT Video / Audio input, use the SOURCE button select on the remote control . HDMI2 HDMI1 AV-OUT 2.S-VIDEO INPUT S-VIDEO input, use the SOURCE button select S-VIDEO on the remote control . HDMI2 HDMI1 AV-OUT... -
Page 10: Pc Input
Systems Connection 3.PC INPUT PC (VGA) input, use the SOURCE button select on the remote control . PC AUDIO OUTPUT VGA OUTPUT DVD VGA VGA OUTPUT OUTPUT HDMI2 HDMI1 AV-OUT 4.HDMI INPUT HDMI input, use the SOURCE button select HDMI on the remote control . -
Page 11: Y Pb Pr Input
Systems Connection 5.Y Pb Pr Input Y Pb Pr input, use the SOURCE button select Y Pb Pr on the remote control. HDMI2 HDMI1 AV-OUT (3.5mm) -
Page 12: Picture
PICTURE Picture Mode: Select the picture mode. you can choose “STANDARD,DYNAMIC, SOFT,USER” Contrast: Adjust picture contrast. Brightness: Adjust picture brightness. Tint: Adjust NTSC colour signal. Saturation: Adjust picture color. Sharpness: Adjust picture sharpness. Colour Temp: Adjust picture colour temp: cool, normal, warm mode. Scale Mode: Select picture scale. -
Page 13: Advance
Sleep Timer: Select the sleep time to put automatically the TV in standby mode. Timer can be selected as 5min/10min/ 15min/30min/45min/60min/Off. Also you can select the sleep time by pressing SLEEP button repeatedly on the remote control CLOSE CAPTION:Select the caption and TEXT modes(CC1,CC2,CC3,CC4,TT1,TT2,TT3, TT4,OFF). -
Page 14: Channel
AND + AND + AND + AND + CHANNEL Auto Scan: press " "button to select this item then press Enter button to enter the Auto Channel Search Program. Fine Tuning: if there are something wrong with the quality of picture and sound of TV, press " "... -
Page 15: Geometry
you can choose “STANDARD,DYNAMIC, SOFT,USER” GEOMETRY H Position: Adjust the H Position of the PC signal. V Position: Adjust the V Position of the PC signal. Clock: Adjust the clock of the PC signal. Phase: Adjust the phase of the PC signal. -
Page 16: Source
SOURCE SOURCE Press "SOURCE" button to display the source list; S-Video ▼ ▲ Y Pb Pr Press " / " button to select the "source" you want to watch; HDMI Press "ENTER" button to enter the Input source ; HDMI 2 RESOLUTION Resolution 640x480... -
Page 17: Help
Ripping line in Please use good quality connecting cable. RCA connecting Unplug the power cable and wait for 30 seconds, then connect.If there is Problem still some problem with our TV, do not repair it by yourself, please contact with exist the customer service center. -
Page 18: Specifications
SPECIFICATIONS Screen Size 32” Viewing angle 175° (Horizontal) / 175° (Vertical) NTSC TV system Video system PAL/NTSC 1-200 Preset Channels Input/Output TV, AV, S-Video, YPbPr, PC, USB,HDMI Speaker Output 2X7W Power requirement AC 100--240V~, 50/60Hz Power consumption User's manual Remote controller Accessories 2 x AAA Batteries 2 x AV cable...
