Genie Wireless Keypad Operating Instructions

This Wireless Keypad is compatible with all INTELLICODE® radio equipped GENIE® products.

OPERATING INSTRUCTIONS

A Moving Door can cause serious injury or death.
1 Keep people clear of opening while Door is moving.
2 Do Not allow children to play with Wireless Keypad.
3 During programming, the Door Opener could begin to run, so stay away from
the moving Door and its parts. To keep the Door from moving, close the Door
and disconnect it from the Opener by pulling the Emergency Release Cord.
SECTION
B P
ASIC ROGRAMMING FOR
1
O D O
NE OOR
FOR CONVENIENCE
Program Keypad BEFORE mounting.
S 1:
S Y W
TEP
ETTING OUR IRELESS
(P I N
ERSONAL DENTIFICATION
A Activate programming mode.
• Press (in order)
– Red LED blinks - once per second.
• Enter your PIN (3 to 8 characters).
• Press
.
– Red LED blinks - twice per second and turns off.
S 2:
P O
TEP
ROGRAMMING NE
A Find the Learn Code Button and Learn Code
Indicator LED on your door opener.
– If your Door Opener has a
black Antenna Wire,
the Learn Code Button
and Indicator LED
are located near the Antenna.
(The Light Lens may need
to be opened.)
– If your Door Opener does not
have an Antenna,
you have an External Receiver.
The External Receiver cover
must be removed to access
the Learn Code Button
and Indicator LED.
• Press the Learn Code Button.
– Learn Code Indicator LED (on Opener) will blink.
• Enter your PIN and press
– Learn Code Indicator LED stays on.
• Press again.
– Learn Code Indicator LED turns off.
• Press again.
– Door moves.
Wait until Keypad Backlight turns off (approximately 30 seconds).
S 3:
O O D
TEP
PERATING NE OOR
A To move the Garage Door.
• Enter your PIN.
• Press .
NOTE
If the Door does not move,check the red LED on
•
Keypad. If the LED is blinking rapidly,the PIN was
entered incorrectly. After the LED stops blinking,
re-enter your PIN and try again.
Any Keypad Button will control the Door for 30 seconds
•
after the Door starts moving.
Rapid blinking of the red LED indicates an error. After a
•
few seconds the LED will turn off. Start over.
Proceed to Section 3 - Mounting Instructions.
For answers to questions, call 1-800-35 GENIE, or visit
www.geniecompany.com
Additional Genie® products can be ordered using the Accessories
page in your Owner's Manual or through the 800 number above.
©2005 The Genie Company, D.B.A. GMI Holdings, Inc.
(KEEP FOR FUTURE REFERENCE)
SECTION
2
PENER
Program Keypad BEFORE mounting.
S 1:
K PIN
TEP
EYPAD
)
UMBER
A Activate programming mode.
• Press (in order)
.
– Red LED blinks - once per second.
• Enter your PIN (3 to 8 characters).
• Press
– Red LED blinks - twice per second and turns off.
D O
OOR PENER
S 2:
TEP
A All Door Openers will use the same PIN.
Red Indicator
• Enter your PIN and press
LED
– Red LED blinks - once per second.
• Press
– Red LED blinks - twice per second.
Located
on Opener
• Press the number of Doors (total) you wish
Housing
to control (
• Press
Learn
Code
– Red LED blinks several times and turns off.
Button
S 3:
TEP
on Keypad.
A Decide which Door will be Door #1,#2 and #3.
• Press the Learn Code Button (see Section 1 Step 2).
– Learn Code Indicator LED (on Opener) blinks.
• Enter your PIN and press
– Learn Code Indicator LED stays on.
• Press the number you have picked for this
Door Opener (
O
PENER
– Learn Code Indicator LED stays on.
• Press
– Learn Code Indicator LED turns off.
B Repeat step A above for each Door Opener.
Each Door Opener must be programmed to receive the
signal from the Wireless Keypad.
Wait until Keypad Backlight turns off (approximately 30 seconds).
S 4:
TEP
A
To move one of the Doors.
• Enter your PIN.
• Press
• Press Door Opener number (
SEE NOTE AT BOTTOM OF SECTION 1
Proceed to Section 3 - Mounting Instructions.
F :
EATURES
•
Ability to Control up to three
Genie® INTELLICODE® Openers
•
Simple to Program and Install
•
PIN Codes can be up to 8 Characters
•
Low Battery Power Indicator
OF U.S. & IMPORTED PART S
•
Stays Programmed During
Battery Change
•
Temporary PIN for Special Purpose Access
T N
OOLS EEDED
•
Drill with 1/16" Drill Bit
•
Phillips Screwdriver
•
Pencil
•
Mounting Screws INCLUDED inside
Battery Compartment
WARNING
If Safety Reverse does not work properly:
1 Close Door and disconnect the Opener using Emergency Release Cord.
2 Do not use Door Opener, Remote Controls, or Wireless Keypad.
3 Refer to Door and Door Opener Owner's Manuals before attempting any repairs.
P
ROGRAMMING FOR
2 3 D O
OR OOR PENERS
FOR CONVENIENCE
S Y W K
ETTING OUR IRELESS EYPAD
(P I N )
ERSONAL DENTIFICATION UMBER
.
P K
ROGRAMMING THE EYPAD FOR
M D O
ULTIPLE OOR PENERS
.
again.
or ).
.
P D O
ROGRAMMING OOR PENERS
on Keypad.
or or ).
.
O 2 3 D O
PERATING OR OOR PENERS
.
or
Interchangeable
Flip-up Cover
available in 3
optional Classic
Colors to match
your home' s
exterior decor
:
Red LED
indicates
Battery Power
and Status
during Use
and Programming
SECTION
3
M
OUNTING
The Keypad must be mounted in sight of the Door(s), at
least 5 feet above the ground and clear of any moving
Door parts.
A Mount Keypad.(Mounting screws located inside
Battery Compartment.)
• Remove Battery Cover (See Section 4 Figure 2).
PIN
• Drill a 1/16"pilot hole for the top mounting screw.
• Install a screw into the drilled
hole,leaving a 1/8" gap
.
between the screw head
and the wall. See Figure 1.
• Hook the Keypad over
the screw.
• Mark,drill pilot hole and
fasten bottom screw.
• Reinstall Battery Cover.
SECTION
4
A
DDITIONAL
F Y PIN
ORGOT OUR
OR
C Y PIN
HANGING OUR
A
Erase old PIN.
• Press and hold in order -
– Red LED will blink once and turn off.
• Release all buttons.
B Programming Door Opener(s).
• Return to"Programming" (Section 1 or Section 2).
U T
SING A EMPORARY
A temporary PIN allows temporary access to your home by
repair persons, meter readers, etc.if you so desire.
A
Enter your PIN.
• Press
B Enter the Temporary PIN (from 3 to 8 characters).
• Press
• DO NOT reprogram the Door Opener(s).
• Temporary PIN remains active until the next time your
normal PIN is entered.
C B
HANGING ATTERY
If the red LED does
not blink during use,
the battery needs to
be changed.
Covers available in:
• Brown - P/N 35365R
• Almond - P/N 35365S
• Sandstone - P/N 35365T
FCC and IC CERTIFIED
This device complies with FCC Part 15 and RSS 210 of Industry Canada.This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are
or ).
designed to provide reasonable protection against harmful interference in a residential installation.This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures: 1. Re-orient or
relocate the receiver antenna. 2. Increase the separation between the opener and receiver. 3. Connect the
opener into an outlet on a circuit different from that to which the appliance is connected. 4. Consult the dealer.
Changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate the equipment.
3528135717
Program
Button

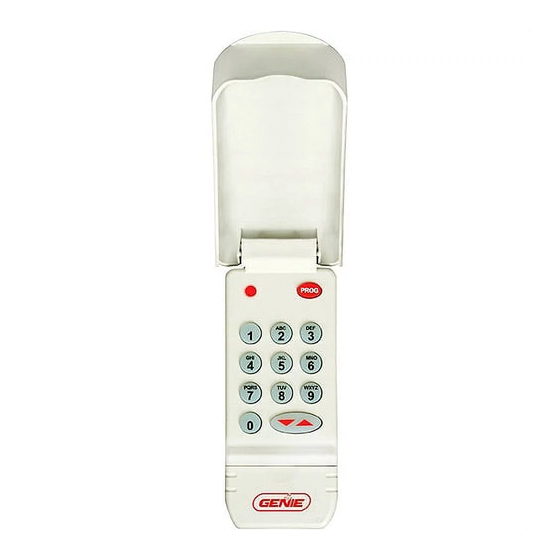

Backlit Keypad
DEF
for Ease of Use
1 2 3
GHI JKL MNO
4 5 6
at Night
PQRS TUV WXYZ
7 8 9
Battery
0
Compartment
9 Volt Battery
(included)
9V
I
NSTRUCTIONS
Figure 1
1"
8
Wall
screw head gap
O
PERATIONS
.
PIN
.
.
NOTE
PROG
Figure 2
DEF
1 2 3
GHI JKL MNO
4 5 6
Red LED
PQRS TUV WXYZ
7 8 9
0
Bottom
Mounting
Screw
Battery
Press here
Printed in the U.S.A.
