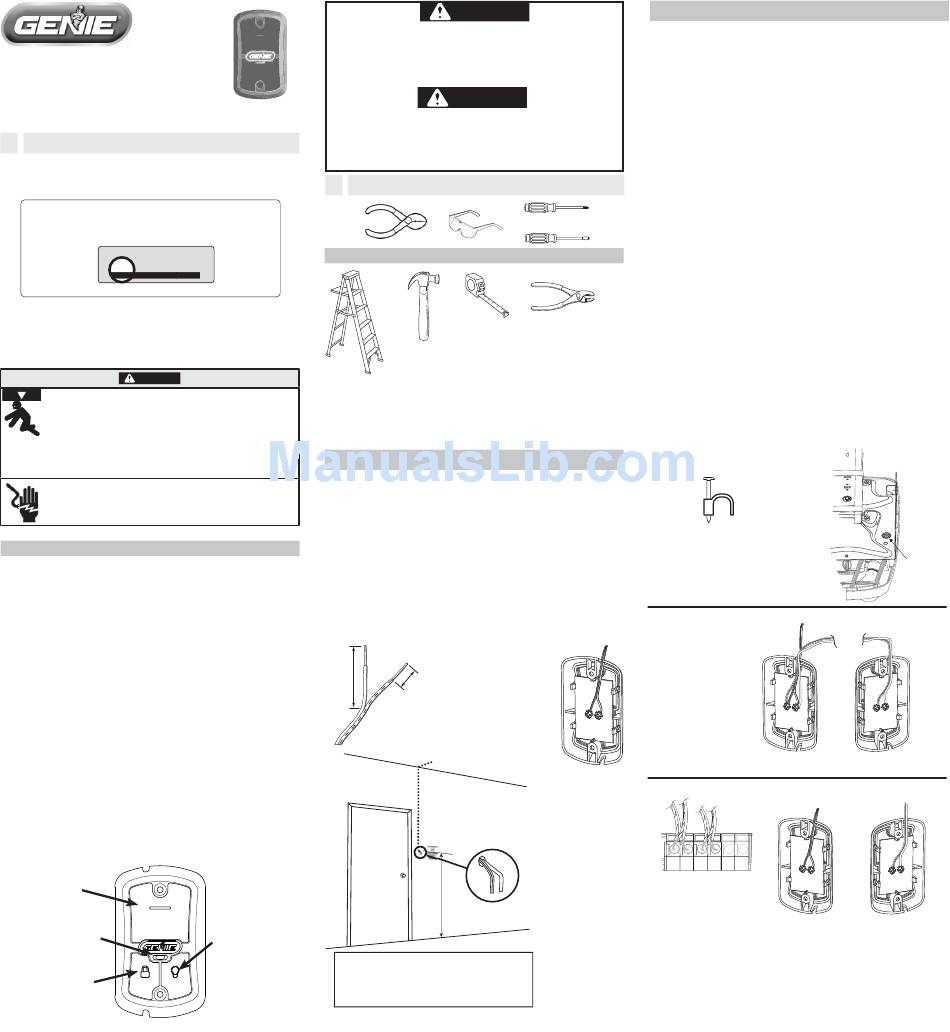

Genie Series III Installation Instructions

Series III Wall Console

INSTALLATION INSTRUCTIONS

1 IMPORTANT INFORMATION

Use only the Series III wall console with Genie® garage door
openers models 2562, 2564, 3022, 3024, 3042, 3062, 3064, 4022,
4024, 4042, 4062, and 4064.
ATTENTION
If your garage door opener has a Serial Number sticker which
looks like this, in which the first two numbers are 10 or higher,
your opener will operate using this Series III wall control.
MODEL AC SR3 THE GENIE COMPANY
FCC ID: B8Q AC SR3 Residential Door Operator
IC: 2133A-CSD1D
S/N:10XXXXXXXXXXXX
FOR HELP CALL 1-800-35GENIE OR WWW.GENIECOMPANY.COM
Follow the instructions on this page.
Wall consoles from other manufacturers may not work with
openers of this serial number group. Genie® Series I wall
buttons and Series II wall consoles will not work with openers
of this serial number group.
WARNING
Moving Door can cause serious injury or death.
• Wall Console must be mounted in sight of door, at least 5 feet
above fl oor and clear of moving door parts.
• Keep people clear of opening while door is moving.
• Do NOT allow children to play with the Remote or door opener.
If safety reverse does not work properly:
• Close door then disconnect opener using the manual release handle.
• Do NOT use Remote or door opener.
• Refer to Door and Door Opener Owner's Manuals before attempting any
repairs.
Electrical Shock can cause serious injury or death.
• Power cord must be unplugged before attaching any wires.
• Be sure wire ends do not touch each other or other terminals.
If you have questions or if you need a manual, contact the distributor
or manufacturer of the opener.
SERIES III WALL CONSOLE -
OPERATION AND FEATURES
Wall console has three buttons and one indicator light.
Indicator Light
Indicator light will display red when wall console is properly
wired and Sure-Lock™ is OFF. When
Sure-Lock™ is ON indicator light fl ashes.
Open/Close Button
Use this button to open or close garage door. When Sure-
Lock™ is ON the Open/Close button will CLOSE door only.
Note: Constant button pressure in the CLOSE mode will
override error responses in the powerhead and close door.
Independent Light Console Button
Use this button to turn powerhead lights ON. Powerhead
lighting will remain ON until this button is pressed again or a
door action has been completed. Note: If opener has a Motion
Detector, the sensor will keep powerhead lights ON as long as
motion is detected.
Sure-Lock™ Button
When Sure-Lock™ is ON the powerhead cannot be activated
by the wall console or a remote.
• Press and hold for 5 seconds (or until Indicator Light
fl ashes) to activate Sure-Lock™.
• Press and release to turn Sure-Lock™ OFF.
Open/Close Button
Indicator Light
Sure-Lock™
Button
• Verify there is NO power to the opener before
installing wall console and/or wall console wires.
• Use of any other wall console can cause the door to
operate unexpectedly and the light not to work. Use
only the included wall console.
• Staples which are too tight can cut or pinch wires. Cut
or pinched wires can cause the wall console to stop
working. When using the insulated staples, make sure
you fasten them only as tightly as needed to hold the
wire snugly.

2 TOOLS REQUIRED

OPTIONAL TOOLS REQUIRED
120V. 60HZ. 5A
Need to install new wire? Wire, #37267R, can
be purchased through Customer Service at
1-800-35-GENIE or from your local Genie® Professional
Dealer.
Series III Wall Console - Replacement
Use these instructions when replacing a Series III wall console.
1. Install Replacement Wall Console
• Disconnect power to powerhead.
• Remove wires from existing wall console.
• Split and strip ends of wire if required (Fig. 2).
• Fasten wire to control board screws on back of wall console
(Fig. 3).
– Striped wire to the + (plus) terminal
– White wire to the - (minus) terminal
• Mount wall console to wall using screws provided.
• Reconnect power to powerhead.
• Check operation of each wall console button and feature.
2"
Separate
entry door
Independent Light
Console Button
FIG. 1
This is an example of wall control
Wall Console
location. Your location may
be different.
©2010 GMI Holdings, Inc. DBA The Genie Company
WARNING
CAUTION
FIG. 3
Connect
1/2"
Wires
FIG. 2
Splitting and stripping
Wall Console
surface wire
Wall Console
pre-wire
FIG. 4
5'
Wall Console
location
EXAMPLE ONLY!
Part Number 37254500131
Series III Wall Console - Expansion
Use these instructions when you are expanding or adding to
an existing Series III wall console.
1. Wall Console Wiring (in series or in parallel)
• Disconnect power to powerhead.
• Pick a convenient location for mounting new wall console
NOTE: Securely anchor wires to ceiling and wall using
insulated staples using insulated staples (Fig. 5). Staples
should be snug only.
• (in series) Run wire from new wall console to existing wall
console (Fig. 7).
– Split and strip ends of wire (Fig. 2)
– Fasten wire to control board screws on back of existing
wall console.
Striped wire to the + (plus) terminal
White wire to the - (minus) terminal
• (in parallel) Run wire from new wall console to powerhead
(Fig. 8).
– Route wire through wire guide on powerhead (Fig. 6)
– Split and strip ends of wire (Fig. 2)
– Insert wire into terminal holes and lightly press in the
locking clips above each terminal hole (Fig. 8)
– Confirm wire lock by lightly tugging on the wire. Wire
should remain in the terminal hole.
2. Fasten wire to control board screws on back of new
wall console (Fig. 3).
Striped wire to the + (plus) terminal
White wire to the - (minus) terminal
3. Reconnect power to powerhead.
• Check operation of each button and feature of both wall
consoles.
FIG. 5
Insulated Staple
(not provided)
FIG. 6 Route wire
into powerhead
TO
POWERHEAD
B/ W
W
FIG. 7
Connect in
series
FROM STBs
FROM WALL
CONSOLE #1
FROM WALL
CONSOLE #2
NOT NOT
USED USED
STB BWC IWC
FIG. 8
Connect in parallel
For additional information or help contact Customer Service: Call 800-35GENIE
or write: GMI Holdings Inc. d/b/a
The Genie Company
22790 Lake Park Blvd.
Alliance, Ohio
44601 U.S.A.
05/2010
TOP OF
OPERATOR
WIRE
GUIDE
TO WALL CONSOLE #1
B/W
W W
B/ W
WALL
WALL
CONSOLE #2
CONSOLE #1
BOTH TO POWERHEAD
B/W
W
B/ W W
WALL
WALL
CONSOLE #2
CONSOLE #1
1 1
