BACnet Protocol Gateway for TempTrac

When a BAS interface with Temptrac or the XR10CX requires a protocol other than the standard
Modbus RTU for Temptrac and XR10CX, PVI Industries offers a premapped gateway from FieldServer
Technologies. The ProtoCessor ProtoNode RER currently supports BACnet IP or MSTP. Consult factory
for other protocols.

This manual is meant to be a general overview of the application of this gateway, for additional
information please visit: www.protocessor.com or contact FieldServer Technologies at 800‐317‐8319
Email: sales@protocessor.com for technical assistance. The ProtoCessor ProtoNode can be user
configured with the following specifics: IP address, serial address, baud rate and one of three register
profiles.

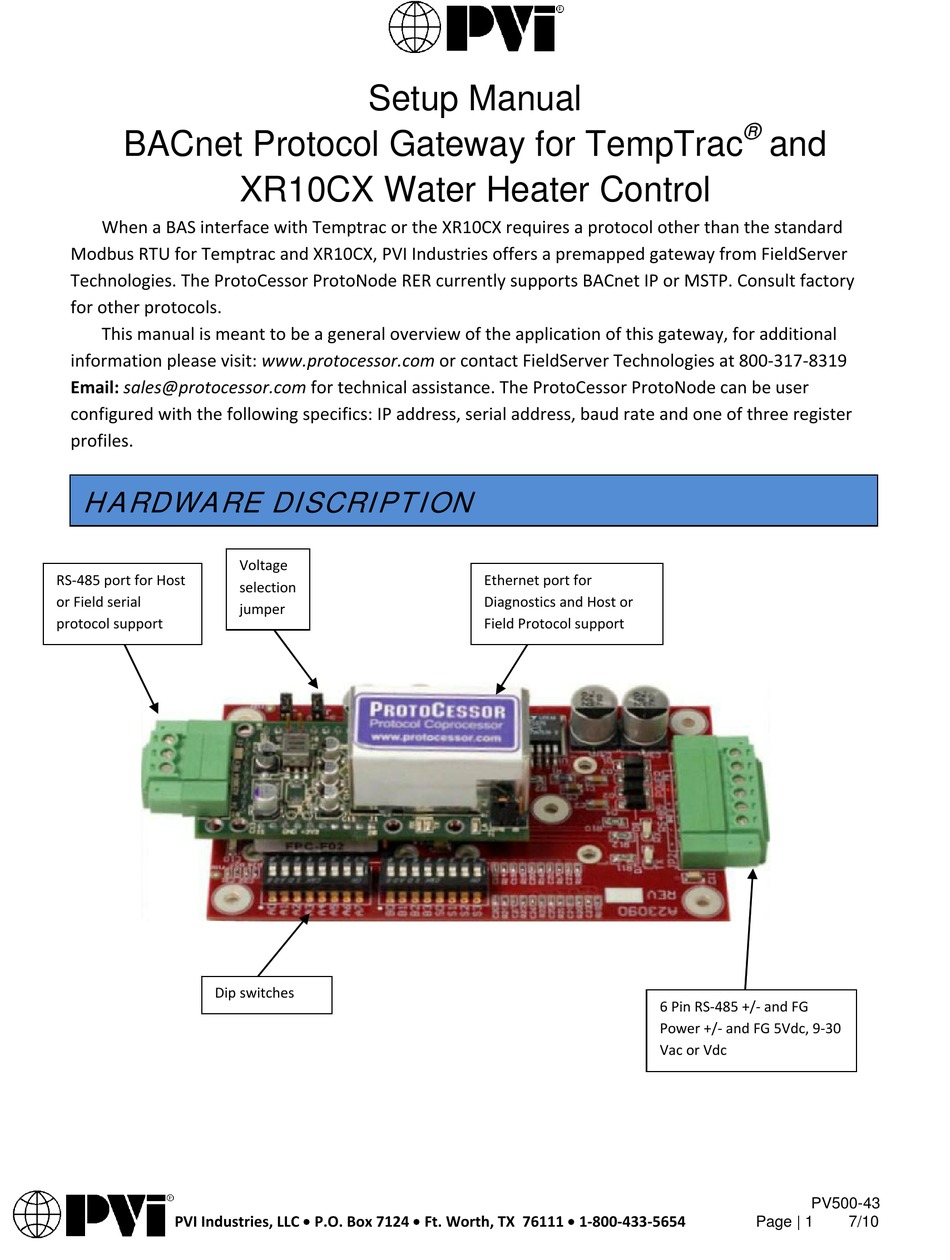

HARDWARE DISCRIPTION



RS‐485 port for Host
or Field serial


protocol support








Dip switches




       PVI Industries, LLC  P.O. Box 7124  Ft. Worth, TX  76111  1‐800‐433‐5654
Setup Manual
XR10CX Water Heater Control
Voltage
selection

jumper


Ethernet port for
Diagnostics and Host or

Field Protocol support
®
and
6 Pin RS‐485 +/‐ and FG
Power +/‐ and FG 5Vdc, 9‐30

Vac or Vdc
PV500-43

Page | 1

7/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR10CX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PVI Industries XR10CX

  • Page 1 Setup Manual ® BACnet Protocol Gateway for TempTrac XR10CX Water Heater Control   When a BAS interface with Temptrac or the XR10CX requires a protocol other than the standard  Modbus RTU for Temptrac and XR10CX, PVI Industries offers a premapped gateway from FieldServer  Technologies. The ProtoCessor ProtoNode RER currently supports BACnet IP or MSTP. Consult factory  for other protocols.    This manual is meant to be a general overview of the application of this gateway, for additional  information please visit: www.protocessor.com or contact FieldServer Technologies at 800‐317‐8319  Email: sales@protocessor.com for technical assistance. The ProtoCessor ProtoNode can be user  configured with the following specifics: IP address, serial address, baud rate and one of three register  profiles.    HARDWARE DISCRIPTION   Voltage    RS‐485 port for Host  Ethernet port for  selection  or Field serial  Diagnostics and Host or    jumper        protocol support Field Protocol support...
  • Page 2   SYSTEM OVERVIEW TEMPTRAC & XR10CX   BACnet IP/MSTP      BUILDING  AUTOMATION SYSTEM   BACnet GATEWAY      Modbus RTU        XR10CX          OPERATING CONTROL        TEMPTRAC         OPERATING CONTROL   Protonode       +        ‐      GND                R      C    GND  OPTIONAL FIELD INSTALLED  Power 5Vdc, 9‐30  TERMINATION RESISTOR Vac or Vdc  COMMON/SHIELD  RS‐485 +/‐  PREINSTALLED TERMINATION  TempTrac  ‐ ‐...
  • Page 3   CONFIGURATION SETTINGS TEMPTRAC & XR10CX     Dip switches A0 to A7 configure the serial address. The table below lists the settings up to 10. The full  257 address settings can be found in the ProtoCessor Getting Started (T17007) manual at  www.protocessor.com    A7   A6   A5   A4   A3   A2   A1  Address  Off   Off   Off   Off   Off   Off   Off  Off  0    Off   Off   Off   Off   Off   Off   Off  On  1  Off  ...
  • Page 4     POWERING UP THE PROTOCESSOR/PROTONODE      Power LED comes on and remains solid    LA starts flashing about once per second. This tells us that PIC (Peripheral Interface Controller)  number 1 in the ProtoCessor has powered up successfully.    LB starts flashing about once per second. This tells us that PIC number 2 in the ProtoCessor has  powered up successfully.    GP105 will go on solid within 45 – 60 seconds after power up, signifying normal operation.  ProtoCessor will be able to come up in RUINET shortly after this LED comes on. During the first  45‐60 seconds the LED should be dark.    Upon successful operation of GP105 the ProtoCessor will go through diagnostics of the field port  communications.    The FFP‐ETH module is operational after this point.    RX Field Port LED: On normal operation, the RX LED will flash when a message is received on the  field port of the ProtoCessor.    TX Field Port LED: On normal operation, the TX LED will flash when a message is sent on the field  port of the ProtoCessor.                 RX    TX ...
  • Page 5     CONNECTION TO PROTOCESSOR USING UTILITIES     Make sure that the FST Utilities is downloaded on the computer.  (http://fieldserver.com/techsupport/utility/utility.php)   Connect an Ethernet cross‐over cable between the PC and ProtoCessor or connect the  ProtoCessor and the PC to the Hub/switch using a straight cat5 cable.    The Default IP Address of the ProtoCessor is 192.168.1.24, Subnet Mask is 255.255.255.0.    If the PC and the ProtoCessor are on different IP Networks, assign a Static IP Address to the PC  on the 192.168.1.0 network.    Double click on the “RUIPING” Utility. If the IP Address of the ProtoCessor module appears on  the screen, the ProtoCessor is running.                     PV500-43            PVI Industries, LLC  P.O. Box 7124  Ft. Worth, TX  76111  1‐800‐433‐5654      Page | 5 7/10...
  • Page 6      Double click on the debugging utility, “RUINET4” (Remote User Interface). The following screen   will appear:      See the “ProtoCessor Mapping” document to ensure that the device is set up correctly with  respect to Baud rate, Node Address, and Points which are configured in the device.    Select “O” for Connect Overview to see the number of messages on each protocol. If the  ProtoCessor is communicating correctly with the device then the display will show Tx and Rx  messages without any errors.    If there are errors on the ProtoCessor socket communications, then the points list in the CSV file  will require editing until there are no errors. Each time the points are edited, the CSV will need  to be re‐downloaded using Ruinet.    When communication between the device and the ProtoCessor is established the Field Side of  the ProtoCessor may be connected to the appropriate device/software. Ensure that the Field  Side parameters on the device/software are set up as per the “ProtoCessor Mapping”  document.    Read and Write data from each side and make sure the ProtoCessor works as expected.             PV500-43            PVI Industries, LLC  P.O. Box 7124  Ft. Worth, TX  76111  1‐800‐433‐5654      Page | 6 7/10...
  • Page 7: Troubleshooting Tips

      TROUBLESHOOTING TIPS      If PWR LED does not come on and LA and LB don’t flash, call or email ProtoCessor support  support@ProtoCessor.com.    If PWR LED does not come on but the LA and LB flash, then the PWR LED is broken.    If LA and LB don’t start to flash there could be a problem with the ProtoCessor and you need to  contact support@ProtoCessor.com.    If GP105 never comes on then you need to contact ProtoCessor support.    If TX and or RX don’t flash, it may represent a problem with the field wiring or Configuration  problems in the ProtoCessor on field side or incorrect polling parameters (such as COMM  properties like baud, parity, and etc).      The Gateway is unable to find one or more controls in the RS485 network. The individual  controls may not be programmed with the correct and unique node address. See the respective  control manual for details.   The Gateway has no communication with the controls in the RS485 network. Check the RS485  wiring for correct wiring method. See page 2 of this manual for details.      More information for the ProtoCessor/ ProtoNode can be found at: Web: www.protocessor.com   FieldServer Technologies, 1991 Tarob Court, Milpitas, California 95035 USA                                         Tel: 408‐964‐4433, FAX: 408‐262‐9042, Toll‐Free: 800‐317‐8319 Email: sales@protocessor.com                 PV500-43  ...
