Owner's Manual
Please read before using this unit.

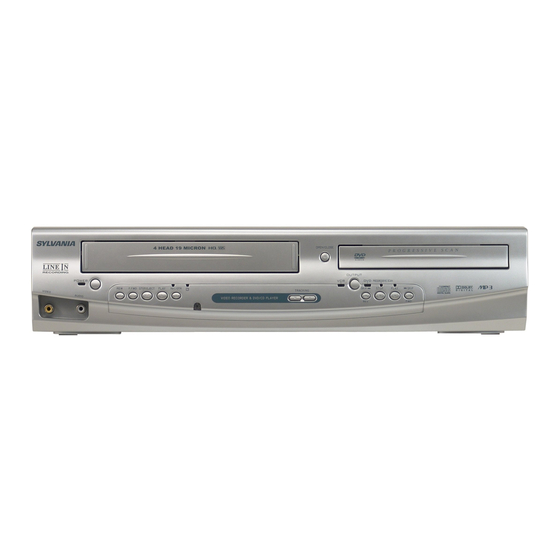

DVD / CD Player with Video Cassette Recorder
DV220SL8 A
If you need additional operating assistance after
reading this owner's manual, please call
1-800-968-3429
TOLL FREE :
or visit our web site at
http://www.sylvaniaconsumerelectronics.com
Contents
Safety Instructions ...................................................................................2
Symbols Used in This Manual .............................................................................. 4
Maintenance .............................................................................................................. 4
About Cassette Tapes and Discs .............................................................5
Playable Media .......................................................................................................... 5
Unplayable Discs ...................................................................................................... 5
Connections .............................................................................................6
Connection to a TV .................................................................................................. 6
Connection to an Audio System ......................................................................... 7
Connection to a Cable/Satellite Box ................................................................. 7
Preparation for Use .................................................................................8
Turning on Unit for the First Time ..................................................................... 8
Clock Setting .............................................................................................................. 8
Function Overview ..................................................................................9
Front Panel Indicator Lights ................................................................................. 9
Selecting DVD or VCR Operation ........................................................................ 9
Front & Rear Terminals ........................................................................................... 9
Remote Control ........................................................................................................10
Installing the Batteries for the Remote Control ...........................................10
Playback .................................................................................................11
Other Operations ....................................................................................11
Index Search ..............................................................................................................11
Time Search ...............................................................................................................11
Auto Repeat ...............................................................................................................12
Recording ................................................................................................12
Recording & One-touch Timer Recording (OTR)..........................................12
Timer Recording ......................................................................................................12
Satellite Link ..............................................................................................................14
Copying a Cassette Tape ......................................................................................14

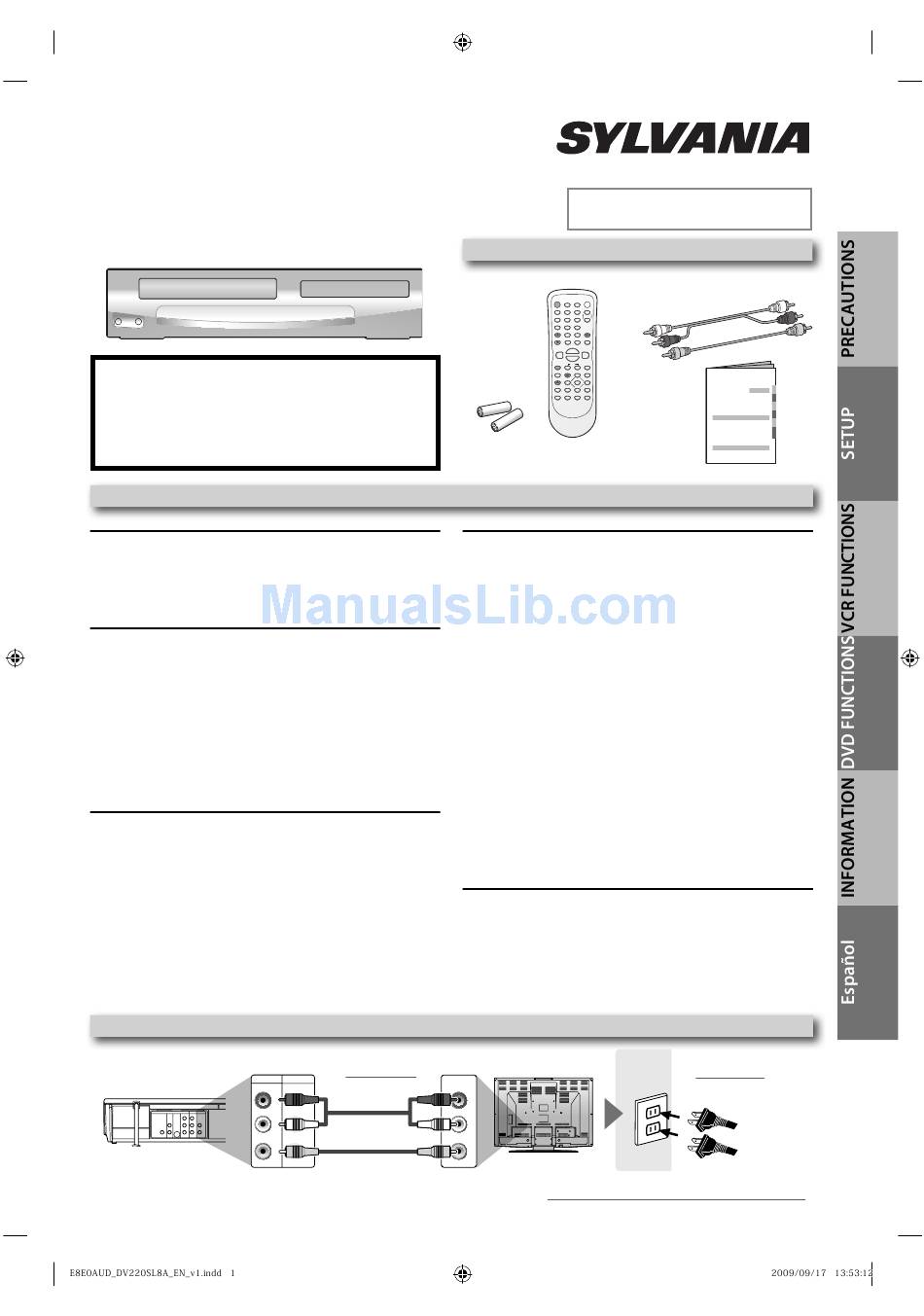

Basic TV Connection
DVD/VCR
rear of the unit
AUDIO OUT
DVD
DVD/VCR
VCR
DIGITAL
AUDIO
S-VIDEO
COMPONENT
AUDIO OUT
AUDIO OUT
OUT
OUT
Y
L
L
AUDIO IN
C
B
/
R
P
B
COAXIAL
R
VIDEO OUT
VIDEO IN
C
/
R
P
R
VIDEO OUT
© 2009 Funai Electric Co., Ltd.
1
connect
VCR
L
AUDIO OUT
R
VIDEO OUT
INSTRUCCIONES EN
ESPAÑOL INCLUIDAS.
Supplied Accessories
remote control unit
RCA audio/video cables
(NB606UD /
(WPZ0102TM018 /
NB656UD)
batteries
owner' manual
(AA × 2)
(1VMN28434)
Playback .................................................................................................15
MP3 Playback .........................................................................................16
On-Screen Display ..................................................................................16
Search Functions ....................................................................................17
Using Track Search ..................................................................................................17
Using Title / Chapter Search ................................................................................17
Using Time Search ..................................................................................................17
Marker Setting ..........................................................................................................17
Repeat / Random / Programmed Playback ...........................................18
Repeat Playback .......................................................................................................18
Repeat A-B Playback ..............................................................................................18
Random Playback ....................................................................................................18
Programmed Playback ..........................................................................................18
Special Settings ......................................................................................19
Subtitle Language ...................................................................................................19
Audio Language ......................................................................................................19
Camera Angles .........................................................................................................19
Black Level Setting ..................................................................................................19
Stereo Sound Mode ................................................................................................19
Virtual Surround.......................................................................................................19
DVD Setting ............................................................................................20
LANGUAGE Setting .................................................................................................20
DISPLAY Setting .......................................................................................................21
AUDIO Setting ..........................................................................................................21
PARENTAL Setting ...................................................................................................22
OTHERS Setting ........................................................................................................22
Reset to the Default Setting (Except for PARENTAL Setting) ..................23
Troubleshooting Guide ..........................................................................23
Specifications .........................................................................................24
Language Code List ................................................................................24
LIMITED WARRANTY ...............................................................................24
Español ...................................................................................................25
Quick Use Guide......................................................................................27
rear of TV
AUDIO IN
L
R
VIDEO IN
3
Please refer to "Connections" on page 6.
WPZ0102LTE01)
Owner's Manual
2
AC
plug in
outlets
from the unit
from TV
