Poulan Pro Pro PRRT900 Repair Parts Manual

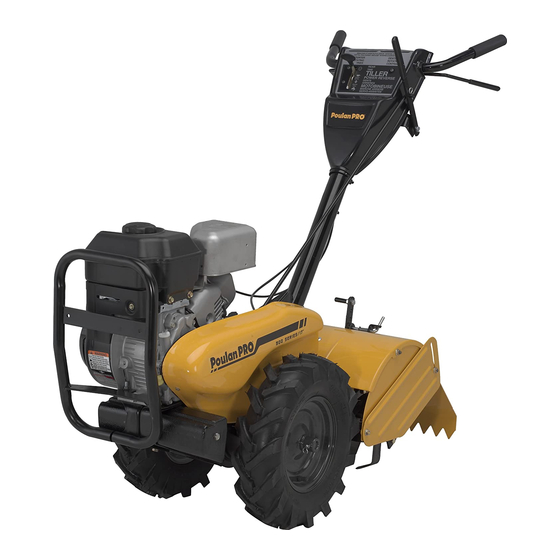

Rear tine tiller
Hide thumbs Also See for Pro PRRT900:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

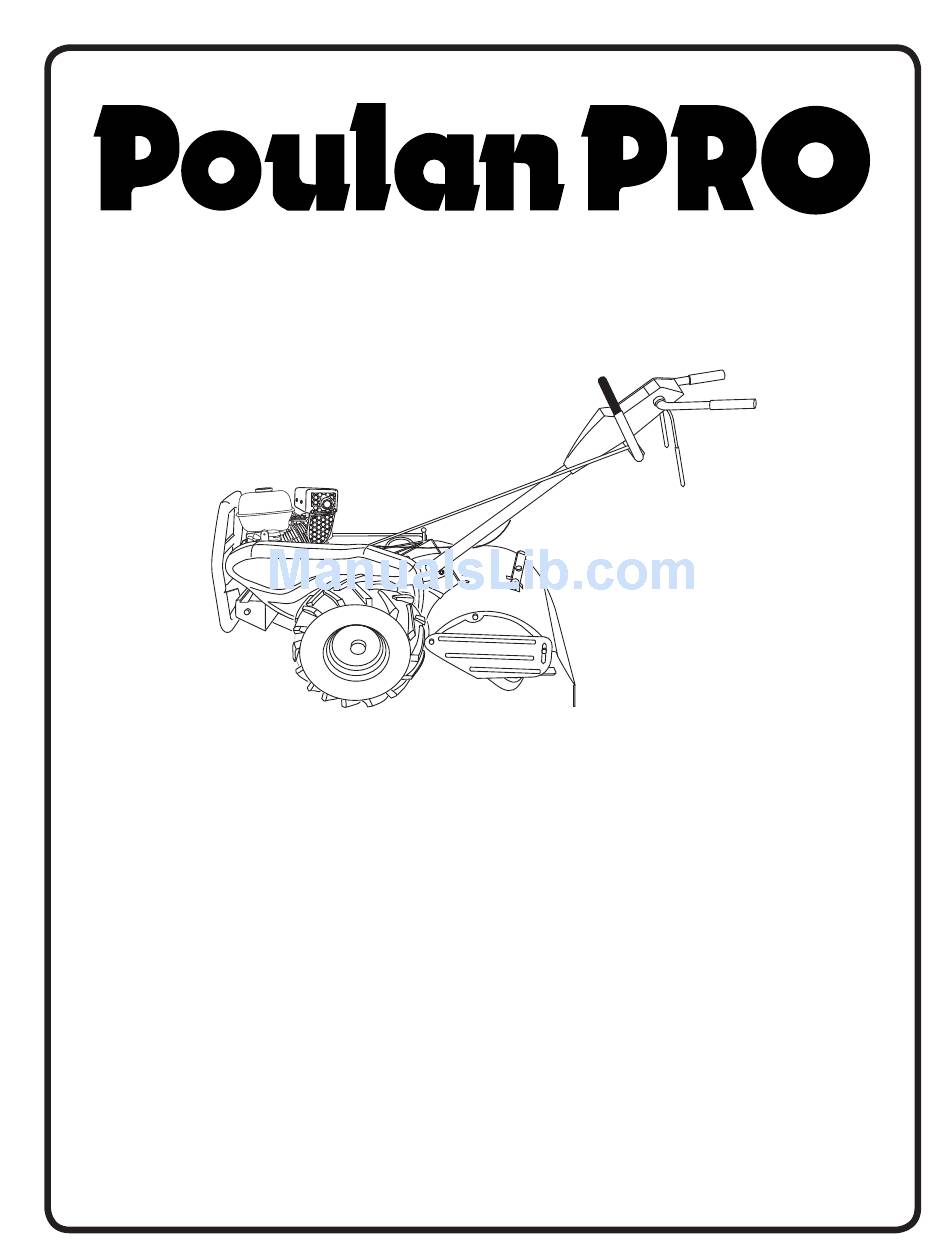

IMPORTANT MANUAL
Do Not Throw Away
REPAIR PARTS MANUAL
MODEL:
PRRT900
REAR TINE TILLER
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
532 44 00-15 Rev 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro PRRT900 and is the answer not in the manual?

Questions and answers

Brian Navarro
June 13, 2025

Parts number for on/off fuel valve

0

Subscribe to Our Youtube Channel

Related Manuals for Poulan Pro Pro PRRT900

Summary of Contents for Poulan Pro Pro PRRT900

  • Page 1 IMPORTANT MANUAL Do Not Throw Away REPAIR PARTS MANUAL MODEL: PRRT900 REAR TINE TILLER ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 532 44 00-15 Rev 1...
  • Page 2 FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) HANDLE ASSEMBLY 12 13 Handle_assy_99_23 PART PART DESCRIPTION DESCRIPTION 532 42 76-43 Grip, Handle 532 43 53-32 Handle 532 15 92-28 Bar Assembly, Control 532 08 67-77 Screw, Hex Washer Hd. Slotted 532 18 06-87 Panel, Control #10-24 x 1/2 871 19 10-08 Screw, Phd.
  • Page 3 FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) MAINFRAME, LEFT SIDE mainframe_left_25 PART PART DESCRIPTION DESCRIPTION 873 22 06-00 Nut, Hex 3/8-16 532 13 28-01 Belt, V 532 43 24-20 Shield, Inner Belt Guard RT 532 10 46-79 Pulley, Idler 532 16 43-29 Screw, Shift Lever 812 00 00-32 Ring, Klip 532 11 01-11 Lever, Shift...
  • Page 4 FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) MAINFRAME, LEFT SIDE PART DESCRIPTION 532 18 51-90 Bumper 873 97 05-00 Nut, Lock Hex Flange 819 11 11-16 Washer 11/32 X11/16 x 16 Ga. 874 76 05-12 Bolt, Hex 5/16-18 x 3/4 532 10 23-32 Bracket Reinforcement RH 532 10 21-73 Counter Weight, 874 76 05-24 Bolt, 5/16-18 x 1-1/2...
  • Page 5 FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) TRANSMISSION 13 15 18 32 transmission_19.5b_r1 PART PART DESCRIPTION DESCRIPTION 532 18 85-54 Transmission Assembly 532 15 07-37 Ground Shaft Assembly (In cludes Key Nos. 2-53) 532 14 30-08 Bearing, Shaft, Ground Drive R.H. 532 18 84-82 Gearcase, L.H.
  • Page 6 FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) TINE SHIELD PART PART DESCRIPTION DESCRIPTION 873 90 05-00 Nut, Lock Hex Flange 5/16-18 532 00 44-40 Hinge 532 18 67-02 Shield, Side, Outer L. H. 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5 532 00 83-93 Pin, Stake, Depth 532 12 47-17 Cap, Vinyl 812 00 00-35 Ring, Klip...

  • Page 7: Tine Assembly

    FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) TINE ASSEMBLY tine_ipb_1 PART PART DESCRIPTION DESCRIPTION 532 00 44-59 Tine, Outer, L.H. 532 13 27-28 Hub, Asm. R.H. 532 13 26-73 Pin, Shear 1.765 x .3125 Gr. 5 532 00 65-55 Tine, Inner, R.H.
  • Page 8 FRONT TINE TILLER - - MODEL NUMBER PRRT900 (MFG. ID. NO. 96092002700) DECALS PART DESCRIPTION 532 17 31-96 Decal, CNTRL PNL 532 44 00-69 Decal, Belt Guard 532 40 15-57 Decal, Instruction, Tilling 532 11 06-14 Decal, Hand Placement 532 10 21-80 Decal, Shift Indicator 532 42 29-72 Decal, Warning, Shield 532 12 00-76 Decal, Warning, Rotating Tines 532 42 03-32 Decal, Engine AC...
  • Page 9 SERVICE NOTES...
  • Page 10 SERVICE NOTES...
  • Page 11 SERVICE NOTES...

  • Page 12: Parts And Service

    Model Number/Manufacturer's I.D. Number b. Description of part. For Technical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan-pro.com/support.asp NOTE: HOP provides parts and service through its au thor ized dis tribu tors and dealers; there fore, all requests for parts and service should be directed to your local dealer(s).
