Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2002 Porter-Cable Corporation
ESPAÑOL: PÁGINA 13
FRANÇAISE : PAGE 27

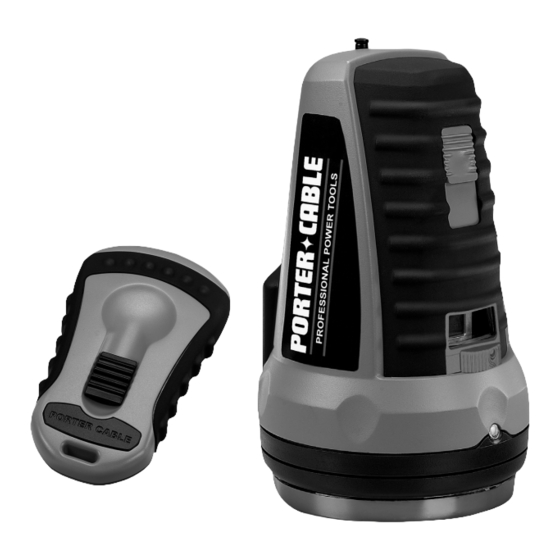

Rotary Level
Self-Leveling, Remote-Controlled
Laser Level
U. S. Patents 5680208, 5903345. Engineered
in USA. Manufactured in China.
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
Model LR1100
Part No. 905069 - 04-15-02
Advertisement
Table of Contents
Related Manuals for Porter-Cable LR1100
Summary of Contents for Porter-Cable LR1100
- Page 1 Model LR1100 U. S. Patents 5680208, 5903345. Engineered in USA. Manufactured in China. IMPORTANT To learn more about Porter-Cable Please make certain that the person who is visit our website at: to use this equipment carefully reads and understands these instructions before http://www.porter-cable.com...
-
Page 2: General Safety Rules
NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the rotary level until you have written Porter-Cable and we have advised you. Technical Service Manager... -
Page 3: Functional Description
FUNCTIONAL DESCRIPTION FOREWORD Porter-Cable Model LR 1100 Rotary Level is a self-leveling, remote-controlled, precision laser level of superior quality that is time-saving and easy to use. Place it on any surface and the perfectly balanced, self-leveling pendulum inside the device takes care of the rest. -
Page 4: Operation
OPERATION Quick Guide to Using Rotary Level The One Minute Set-Up 1. Set the Base Unit up on a tripod or any surface that is within 10° of level. There are two tripod mounts built into the bottom of the Adjusting Base - a 5/8" x 11 (standard transit level tripod) and 1/4"... -
Page 5: Using The Remote Control
Using the Remote Control The Remote Control is one of the features that makes Rotary Level unique in the field of laser leveling systems. Using the Remote Control, you can control the rotation of the Base Unit from up to 100 feet away! You don't even have to be "in sight"... -
Page 6: Battery Replacement
Battery replacement Base Unit - 4 "AA" Alkaline Batteries 1. Unscrew the battery housing cover using either your fingers or a coin. Lift the cover off. 2. Insert the new batteries according to the illustrations on the battery slots. 3. Replace the battery housing cover and tighten the screw securely. Remote Control - 1 9-Volt Battery 1. - Page 7 Recalibration Rotary Level can be recalibrated by you, in the field. If Rotary Level is dropped, you should recalibrate. 1. Choose your recalibration site. To get the most accurate calibration possible, it is best to use two vertical (plumb) surfaces directly opposite each other, 100' apart (50' minimum).
- Page 8 8. Move the base unit to about 5' from Surface B (the location you just marked). Raise or lower the Base Unit so that the laser dot hits the spot you have already marked. 9. Using the Remote Control, rotate the Base Unit until the laser dot is exactly on, directly above, or directly below the point marked on Surface A.
-
Page 9: Specifications
Specifications Accuracy: +/- 1/8" @ 100' (radius) Self-leveling: Level range +/- 10°; flashing out-of-level indicator Remote Control: 3 speeds (low, medium & high); range – 100' radius and 200' diameter Range: Laser visibility up to 100' (indoor & outdoor – no detector required);... -
Page 10: User Safety
Line Generating Feature You have just purchased your Self-Leveling, Remote Controlled Laser, Rotary Level with the new line-generating feature. The following outlines the operation of the feature with your Rotary Level. The line-generating feature converts Rotary Level’s single laser dot into a line of bright dots, designed specifically for interior leveling applications. -
Page 11: General Maintenance
(2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT: Changes or modifications to this product not authorized by Porter-Cable Corporation, could void the FCC Certification and negate your right to operate the product. Porter-Cable Corporation... - Page 12 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
- Page 13 Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable •...
