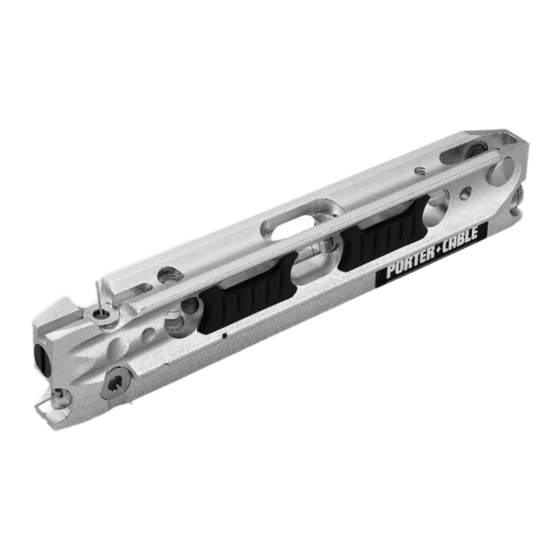

LASER LEVEL
3-BEAM, SQUARE & PLUMB LASER
Patents Pending. Engineered in USA.
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. __________________________________
Type_______________________________________
Serial No. ___________________________________
ESPAÑOL: PÁGINA 9
FRANÇAISE : PAGE 19
MODEL LL3100
Manufactured in PRC.
IMPORTANT
Part No. 905067 - 03-21-02
Advertisement
Table of Contents
Related Manuals for Porter-Cable LL3100
Summary of Contents for Porter-Cable LL3100
- Page 1 905067 - 03-21-02.qxd 4/3/02 Instruction manual To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2002 Porter-Cable Corporation 8:18 AM Page 1 ESPAÑOL: PÁGINA 9 FRANÇAISE : PAGE 19 LASER LEVEL 3-BEAM, SQUARE & PLUMB LASER MODEL LL3100 Patents Pending.
-
Page 2: General Safety Rules
TOOL USE AND CARE Do not use laser level if switch does not turn it on or off. A laser that cannot be controlled with the switch is dangerous and must be repaired. -
Page 3: Functional Description
FUNCTIONAL DESCRIPTION FOREWORD Porter-Cable Model LL3100 Laser Level is a level of superior quality and is easy to use. Turn on the laser level and you have three, perfectly square beams for level, plumb and square applications. 1. User Safety AVOID EXPOSURE: Laser radiation is emitted from this aperture. -
Page 4: Operation
To turn the laser level off, turn the knob counter clockwise to the original position. Leveling laser level: The laser level has three 90 ° beams that can be used to level, plumb and square. When the laser level is in the... -
Page 5: Product Applications
V-Groove: Use the v-groove to align the laser level on pipes up to 10" in diameter. 4. Product Applications The laser level has three 90 ° beams that can be used to level, plumb and square. Applications include: Flooring installations, leveling shelves and cabinets, squaring windows and door frames, aligning forms and posts, determining elevation differences and more. -
Page 6: Product Specifications
Do no store the laser level in cold areas. When the device warms up to its normal operating temperature, moisture can form inside, where it may damage circuit boards. -
Page 7: General Maintenance
We cannot guarantee repairs made or attempted by anyone other than these agencies. Should you have any questions about your laser level, feel free to write us at any time. In any communications, please give all information shown on the nameplate of your laser level (model number, type, serial number, etc.). - Page 8 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
