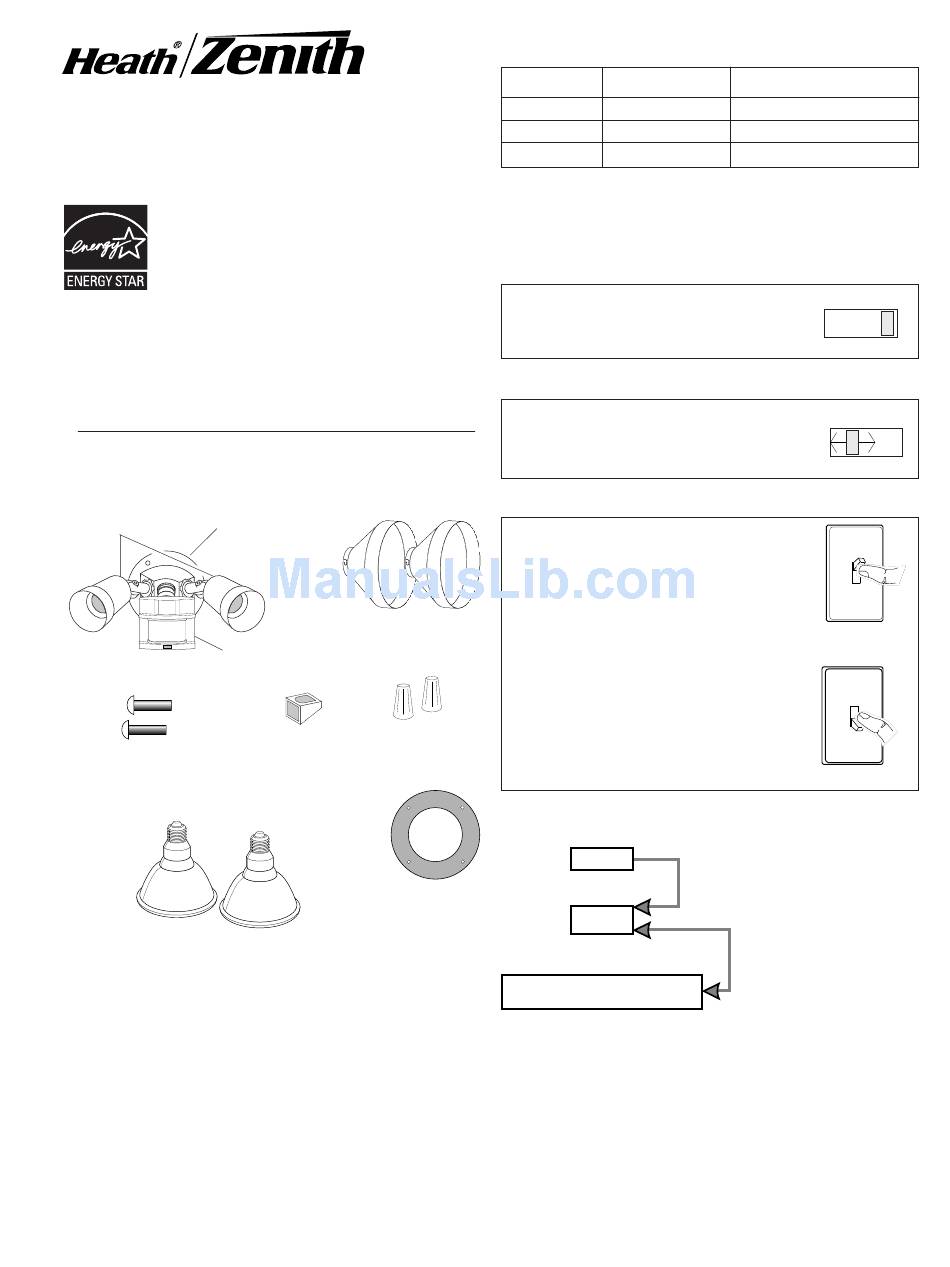

Heath Zenith SL-9525 User Manual

Motion Sensor Light
Control
As an ENERGY STAR
nith has determined that this product meets
the ENERGY STAR
efficiency. This product is ENERGY STAR
compliant when used with 120 Watt bulbs.
Model SL-9525
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
This package includes:
Lamp Holders
Cover
Plate
Sensor
Light Control
4 Screws
(2 sizes included)
2 Flood Lamps
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2003 DESA Specialty Products™
®
Partner, Heath
®
guidelines for energy
2 Shells
2 Wire
Light Shield
Connectors
Gasket
OPERATION
Mode: On-Time:
Test
Auto 1, 5, 10 min.
Manual Until Dawn*
* resets to Auto Mode at dawn.
®
/Ze-
Note: When first turned on wait about 1
the circuitry to calibrate.
®
Put the ON-TIME switch on the
bottom of the sensor in the TEST
position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
Manual mode only works at night
because daylight returns the sen-
sor to AUTO.
Flip the light switch off for one sec-
ond then back on to toggle between
AUTO and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
Works: Day
5 Sec
1
TEST
AUTO
MANUAL MODE
1 Second OFF
... back on.
Move ON-TIME Switch to
1, 5, or 10 minutes
Flip light switch off
for one second then
back on*
Night
x x
x
x
/ minutes for
2
ON-TIME
10 5 1 TEST
ON-TIME
10 5 1 TEST
then...
595-5612-08
