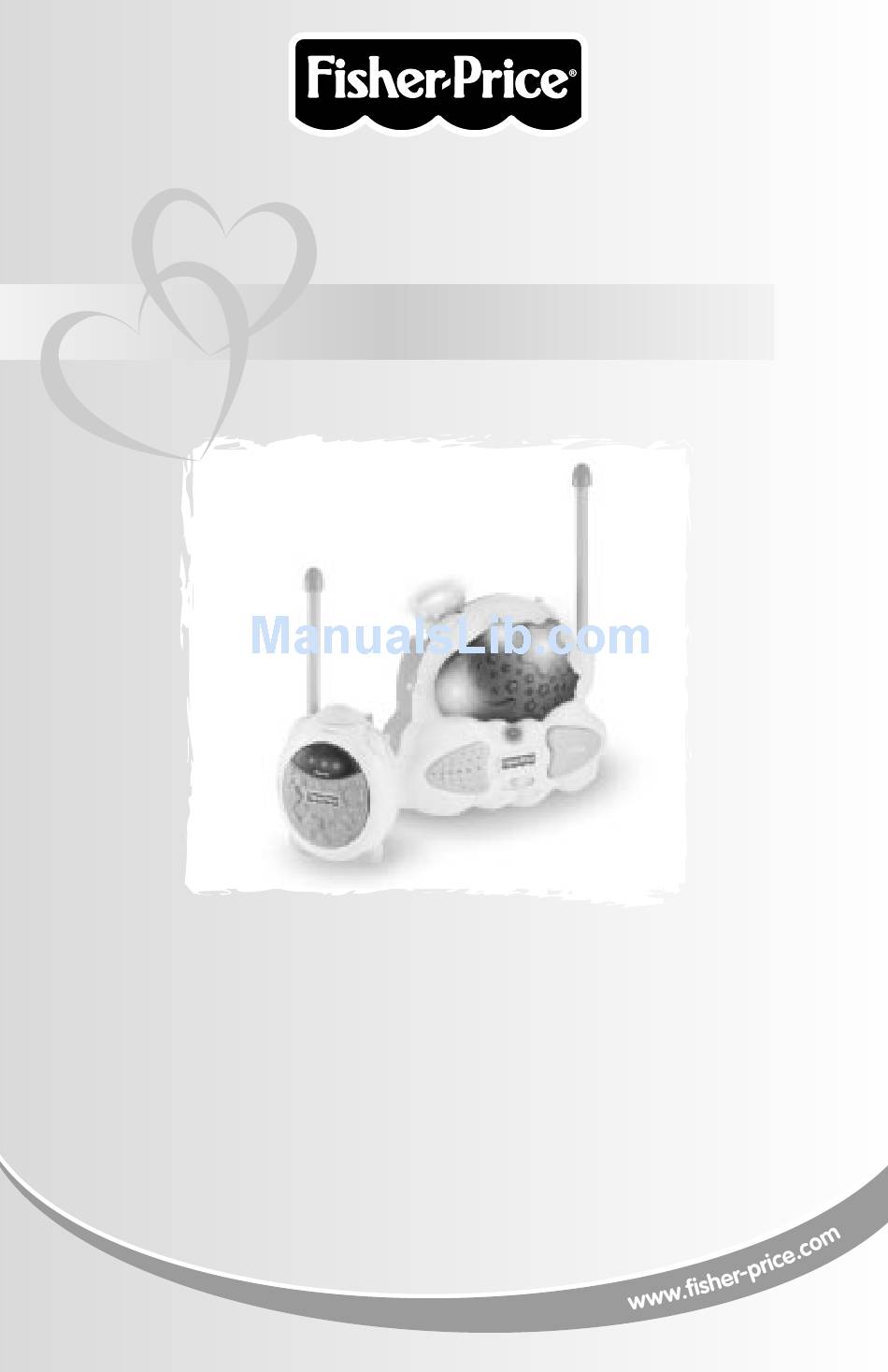

Soothing Dreams
TM
Monitor
with Remote Control
Model Number: 71597
For proper set-up and use, please read these instructions.
Please keep this instruction sheet for future reference,
as it contains important information.
Transmitter is electrically powered.
Remote control receiver is powered by the AC adaptor (included, plugs
into standard household outlets 120V AC). Remote control receiver
also runs on battery power (9V alkaline battery - not included).
Requires one PR12 light bulb (included).
An adult must install the battery (if used) and replace the light bulb.
Tool needed for battery installation and
light bulb replacement: Phillips screwdriver.
Advertisement
Related Manuals for Fisher-Price SOOTHING DREAMS 71597
Summary of Contents for Fisher-Price SOOTHING DREAMS 71597
- Page 1 Soothing Dreams Monitor with Remote Control Model Number: 71597 For proper set-up and use, please read these instructions. Please keep this instruction sheet for future reference, as it contains important information. Transmitter is electrically powered. Remote control receiver is powered by the AC adaptor (included, plugs into standard household outlets 120V AC).
-
Page 3: Consumer Information
Usually, we can solve the problem over the telephone or send you replacement parts. Please call Fisher-Price® Consumer Relations, toll-free at 1-800-432-KIDS, between 8 AM - 6 PM EST, Monday through Friday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. - Page 4 Remote Control Receiver Battery Installation (Optional) 9V (6LR61) SHOWN ACTUAL SIZE Compartment Door • Locate battery compartment door on back of remote control receiver. • Loosen screw in battery compartment door with a Phillips screwdriver. Lift to remove battery compartment door. •...
- Page 5 Testing Sound Reception Test transmitter transmission and remote control receiver reception. Power/Volume Dial Power Indicator Place transmitter in room in which you intend to use it. Rotate transmit- ter power/volume dial to turn power on. Turn on a radio. Adjust Channel Hint: All four dots in remote control receiver variable light display light: - If you turn remote control receiver power on before transmitter power.
-
Page 6: Setup And Use
Setup & Use Back View Transmitter Remote Control Transmitter Receiver... - Page 7 Setup & Use IMPORTANT! Test sound reception of this monitor before first time use and whenever you change location of transmitter (see page 5). Set transmitter channel switch to same channel as remote control receiver. Place transmitter in same room with child. Point microphone directly toward crib or play area.
- Page 8 Setup & Use...
- Page 9 Setup & Use Place remote control receiver where you will see or hear it. Unwrap and fully extend AC adaptor cord for best reception. Insert AC adaptor jack into remote control receiver socket and plug into wall outlet. Note: To use a 9V alkaline battery for power source, refer to “Remote Control Receiver Battery Installation”...
- Page 10 Setup & Use Ceiling Light Night Light Show • To soothe baby, press and hold soothing button (Soothe) on remote control receiver for about two seconds. Your baby enjoys what you have selected. • Light/music/nature sounds will turn off after approximately five minutes. To turn back on, simply press and hold soothing button (Soothe) on remote control receiver for about two seconds.
- Page 11 Setup & Use “Mommy is coming…” “Mommy is coming…” • To talk to baby, press talk button (Talk) and speak into microphone on remote control receiver. Release talk button (Talk) after you have finished talking. Hint: If light/music/nature sounds are playing when you press talk button (Talk), you will temporarily turn them off.
- Page 12 Replacing the Light Bulb (Glass Bulb) IMPORTANT! Should light bulb become non-functional, you are advised to remove and replace it. This should be carried out away from child’s sleep or play area. Light Bulb Compartment Door • Loosen screws in light bulb compartment door with a Phillips screwdriver.
- Page 13 Groove • At an angle, fit reflector over new light bulb. • Align notch in reflector with tab in light bulb receptacle. • Push reflector lens slightly and fit reflector edges into grooves in light bulb compartment cover. • Replace retainer and insert two screws.
-
Page 14: Problems And Solutions
Problems & Solutions Circuit Breaker “Ma, ma, ma. Da, da, da…” “That doesn’t sound right. Maybe we should check the transmitter.”... - Page 15 Hint: If, after checking all of these solutions, you believe that your transmitter power cord or AC adaptor is is damaged, please call Fisher-Price® at 1-800-432-KIDS. SOLUTIONS Turn transmitter power on.
- Page 16 Problems & Solutions “That’s gotta “Did you read be coming from about…” next door…” PROBLEM You can hear conversations or sounds from other homes.
- Page 17 “Wah, Wah, Wah…” “I better get off the phone, “Wah, Wah, she’s up…” Wah…” “Did you read about…” SOLUTION There is signal interference due to other nursery monitors on same channel or cordless telephone use. Change channel switches on both transmitter and remote control receiver to eliminate source of interference.
- Page 18 Problems & Solutions “Uh-oh, maybe I should move closer to the house.” PROBLEM You hear static or buzzing because remote control receiver is out of range of transmitter. Hint: If you cannot hear your child and all four dots do not light, your remote control receiver battery is weak.
- Page 19 Care Excess dirt in transmitter and remote control receiver microphone will hamper transmission of sound. Clean outer surface of transmitter and remote control receiver with a cloth lightly dampened with a mild cleaning solution. Never immerse transmitter, remote control receiver or AC adaptor. FCC Note (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
-
Page 20: One (1) Year Limited Warranty
Consumer Relations at the address indicated above and for all associated freight and insurance cost. Fisher-Price, Inc., will bear the cost of shipping the repaired or replaced item to you. This warranty is void if the owner repairs or modifies the product.
