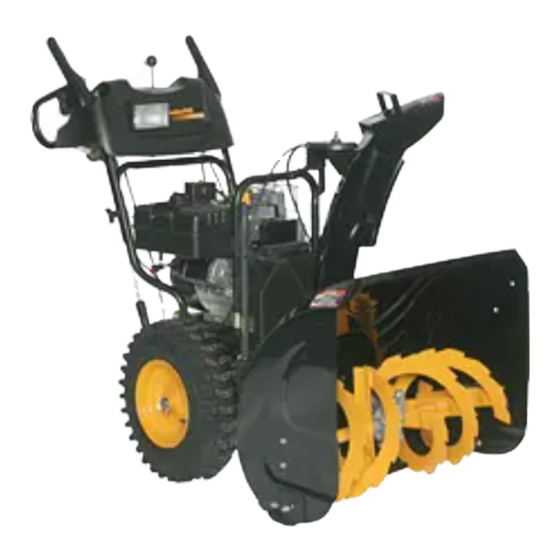

IMPORTANT MANUAL
OWNER'S MANUAL
MODEL NUMBER:
PP291E30
SNOW THROWER
Always Wear Eye Protection During Operation
Do Not Throw Away
WARNING:
Read the Owner's Manual and
fol low all Warnings and Safety
In struc tions. Fail ure to do so
can result in serious injury.
428548 Rev 1 07.13.09 TH
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP291E30 and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro PP291E30

Summary of Contents for Poulan Pro PP291E30

  • Page 1 IMPORTANT MANUAL OWNER'S MANUAL MODEL NUMBER: PP291E30 SNOW THROWER Always Wear Eye Protection During Operation Do Not Throw Away WARNING: Read the Owner's Manual and fol low all Warnings and Safety In struc tions. Fail ure to do so can result in serious injury.

  • Page 2: Safety Rules

    Safe Operation Practices for Walk-Behind Snow Throwers This snow thrower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. Look for this symbol to point out im- por tant safety precautions.

  • Page 3: Table Of Contents

    6. When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the collector/impel- ler and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the plug to prevent someone from accidentally starting the engine.
  • Page 4 PARTS PACKED SEPARATELY IN CARTON (1) POWER CORD (1) MULTI- (198563) WRENCH (180684) (3) RETAINER SPRINGS (169675) (2) LOCKNUTS (2) SHEAR BOLTS 1/4-20 x 1-3/4 1/4-20 (192090) (2) FLAT WASHERS (73800400) (2) CARRIAGE BOLTS 3/8-16 x 2.25 (2) SAFTEY IGNITION KEY (1) LOCKNUT 3/8 (1) WASHER 3/8 (422663)

  • Page 5: Assembly / Pre-Operation

    ASSEMBLY / PRE-OPERATION Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower. Reading the entire manual will familiar- ize you with the unit, which will assist you in assembly, operation and maintenance of the product.
  • Page 6 ASSEMBLY / PRE-OPERATION INSTALL TRACTION DRIVE CONTROL ROD (See Figs. 3 and 4) The traction drive control rod is installed on the snow thrower. 1. Remove plastic tie securring rod to lower handle. 2. With top end of rod positioned under left side of control panel, push rod down and insert top end of rod into hole in drive control bracket.

  • Page 7: Assembly / Pre-Operation

    ASSEMBLY / PRE-OPERATION INSTALL DISCHARGE CHUTE / CHUTE ROTATOR HEAD (See Fig. 7) NOTE: The multi-wrench provided in your parts bag may be used to install the chute rotator head. 1. Place discharge chute assembly on top of chute base with discharge opening toward front of snow thrower.

  • Page 8: Know Your Snow Thrower

    OPERATION KNOW YOUR SNOW THROWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product.
  • Page 9 MUF FLER GAS O LINE FILLER CAP CHOKE CON- TROL SAFETY IGNITION ON / OFF SWITCH PRIM ER FUEL SHUT-OFF VALVE RECOIL (AUXILIARY) STARTER HANDLE NOTE: ITEMS ABOVE ARE SHOWN IN THEIR TYPICAL LOCATION ON THE ENGINE. ACTUAL LOCATION MAY VARY WITH THE ENGINE ON YOUR UNIT.

  • Page 10: How To Use Your Snow Thrower

    The operation of any snow thrower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your snow thrower or performing any ad just - 00155 ments or repairs.

  • Page 11: To Move Forward And Backward

    TO THROW SNOW (See Fig. 14) The auger rotation is controlled by the auger control lever located on the right side handle. • Squeeze auger control lever to handle to engage the auger and throw snow. • Release the auger control lever to stop throwing snow. AUGER CONTROL LEVER...

  • Page 12: Before Starting The Engine

    • If snow thrower must be operated over gravel surface, use extra caution and be sure skid plates are adjusted to lowest (highest scraper clear ance) position. 1. Shut off engine and wait for all moving parts to stop. 2. Adjust skid plates by loosening the hex nuts, then mov- ing skid plate to desired position.

  • Page 13: Snow Throwing Tips

    TO START ENGINE • Be sure fuel shut-off valve is in the “OPEN” position. Your snow thrower engine is equipped with both a 120 Volt A.C. electric starter and a recoil starter. The electric starter is equipped with a three-wire power cord and plug and is designed to operate on 120 Volt A.C.

  • Page 14: Lubrication Chart

    GENERAL REC OM MEN DA TIONS The warranty on this snow thrower does not cover items that have been sub ject ed to operator abuse or negligence. To receive full value from the warranty, operator must maintain snow thrower as in struct ed in this manual. Some ad just ments will need to be made periodically to properly maintain your snow thrower.

  • Page 15: To Change Engine Oil

    AUGER GEAR CASE • The gear case was filled with lubricant to the proper level at the factory. The only time the lubricant needs attention is if service has been performed on the gear case. • If lubricant is required, use only Ronex ED #1 grease.

  • Page 16: To Remove Belt Cover

    SERVICE AND ADJUSTMENTS WARNING: To avoid serious injury, before performing any service or ad just ments: 1. Be sure the on/off switch is in the OFF position. 2. Remove safety ignition key. 3. Make sure the augers and all mov ing parts have completely stopped.

  • Page 17: To Replace Belts

    SERVICE AND ADJUSTMENTS TO REPLACE BELTS (See Fig. 22) The auger and traction drive belts are not adjustable. If the belts are damaged or begin to slip from wear, they should be replaced. It is recommended that the belt(s) be replaced by a service center/department.

  • Page 18: Engine Speed

    SERVICE AND ADJUSTMENTS TO REMOVE WHEELS (See Fig. 23) • Remove the klik pin and remove wheel from axle. IMPORTANT: When installing wheel, be sure to use the in- nermost hole in axle and the wheel hub hole. To dis en gage drive system from the wheels (for pushing or trans port ing the snow thrower), remove klik pin from wheel hub and insert pin into the outermost hole in axle only.

  • Page 19: Storage

    Immediately prepare your unit for storage at the end of the season or if the unit will not be used for 30 days or more. WARNING: Never store the snow thrower with gaso line in the tank in side a build ing where fumes may reach an open flame, spark or pilot light as on a fur nace, water heater, clothes dryer or gas ap pli ance.

  • Page 20: Troubleshooting

    TROUBLESHOOTING See appropriate section in manual unless directed to an authorized service center/department. PROBLEM CAUSE Does not start 1. Fuel shut-off valve (if so equipped) in OFF position. 2. Safety ignition key is not inserted. 3. Out of fuel. 4. Throttle in STOP position (or ON/OFF switch is OFF).

  • Page 21: Repair Parts

    NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 3 (5x) 4 (5x) 01.07.003-A...
  • Page 22 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 2 (EXPLODED) 01.07.026-B...
  • Page 23 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) PART DESCRIPTION...
  • Page 24 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.07.019-A PART...
  • Page 25 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.16.001-A PART...
  • Page 26 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.09.012-A 1 inch = 25.4 mm...
  • Page 27 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.09.010-A 1 inch = 25.4 mm...
  • Page 28 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.08.007-B PART...
  • Page 29 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) PART DESCRIPTION...
  • Page 30 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) PART DESCRIPTION...
  • Page 31 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.12.001-E PART...
  • Page 32 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 42 EXPLODED 01.02.013-A...
  • Page 33 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) PART DESCRIPTION...
  • Page 34 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.03.005-B PART...
  • Page 35 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.00.034-A PART...
  • Page 36 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.21.005-A PART...
  • Page 37 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) PART DESCRIPTION...
  • Page 38 NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) 01.14.003-B 2.56 01.14.012-A...

  • Page 39: Repair Parts

    NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. SNOW THROWER - MODEL PP291E30 (96198003000) PART DESCRIPTION...

  • Page 40: Warranty

    This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975. LIMITED WARRANTY In Canada contact: Poulan Pro, Customer Service Department 5855 Terry Fox Way Mississauga, Ontario L5V 3E4...
