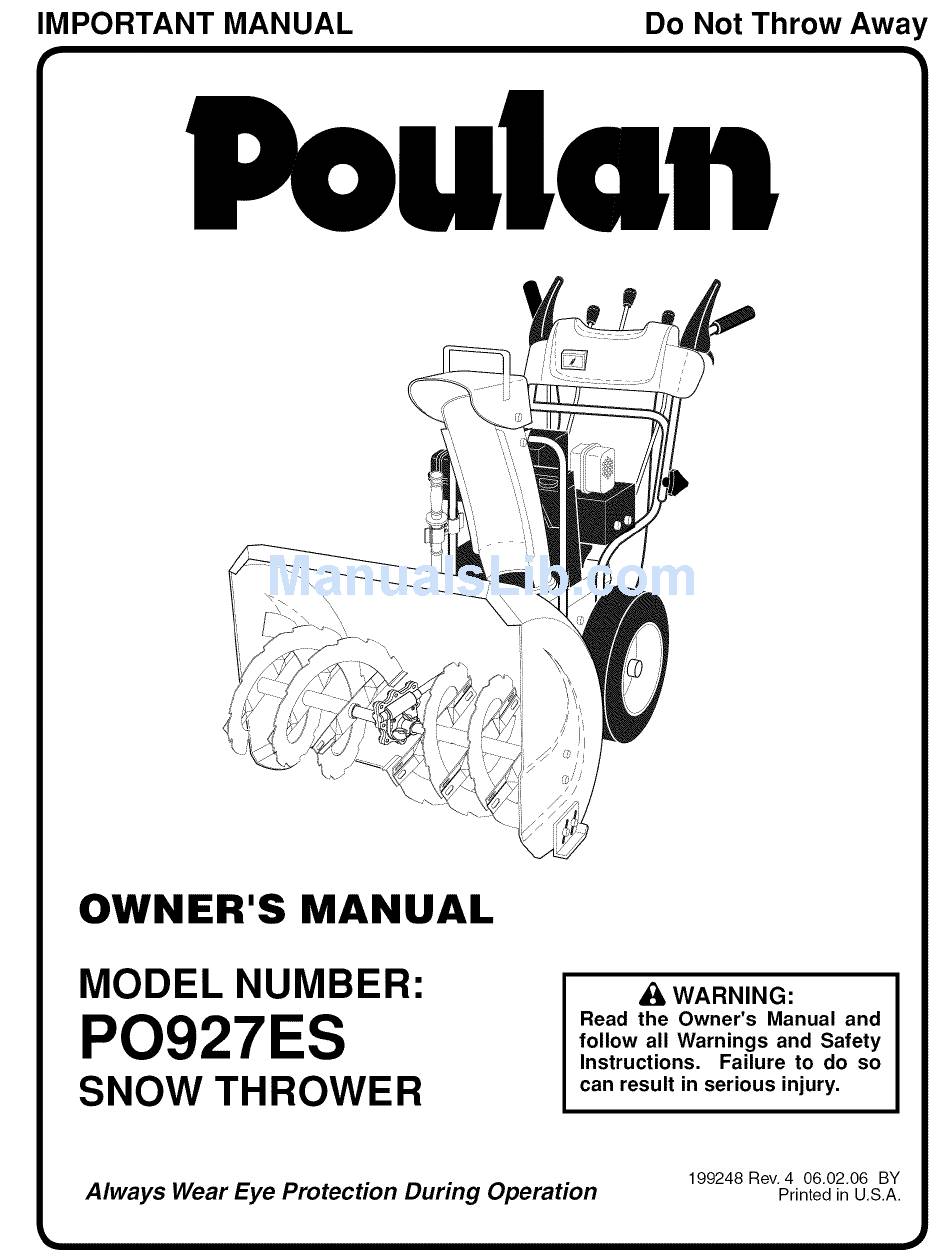

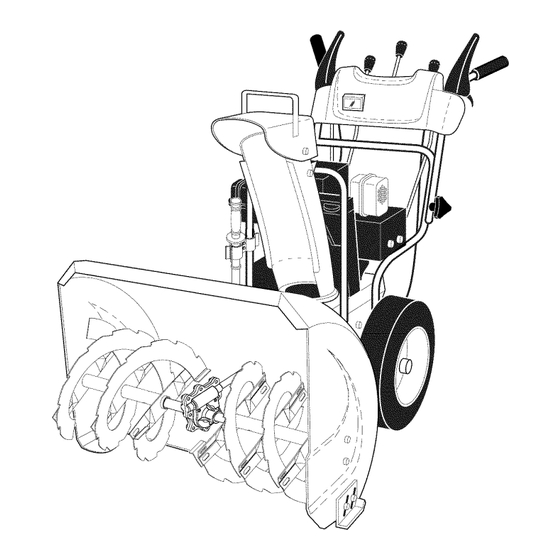

- Page 1 IMPORTANT MANUAL Do Not Throw Away OWNER'S MANUAL MODEL NUMBER: WARNING: PO927ES Read the Owner's Manual follow all Warnings and Safety Instructions. Failure to do so SNOW THROWER can result in serious injury. 199248 Rev. 4 06.02,06 BY Always Wear Eye Protection...
-
Page 2: Safety Rules
IMPORTANT Safe Operation Practices for Walk-Behind Snow Throwers This snow thrower is capable of amputating hands and feet and throwing objects, Failure to observe the following safety instructions could result in serious injury. WARNING: Snow throwers have ex- Look for this symbol to point out im- &... -
Page 3: Table Of Contents
6, When cleaning, repairing orinspecting thesnowthrower, 16,Never t ouch a hotengine ormuffler, stop theengine andmake certain thecollector/impeller andall moving partshavestopped, D isconnect the Clearing a Clogged Discharge Chute spark plugwireandkeep thewireaway fromtheplug Hand contact with the rotating impeller inside the discharge toprevent someone f romaccidentally starting theen- chute is the most common cause of injury associated with gine. - Page 4 PARTS PACKED SEPARATELY IN CARTON (1) POWER CORD SPRINGS (3) RETAINER (1) AUGER CONTROL ROD (1) TRACTION DRIVE CONTROL ROD (1) DISCHARGE CHUTE ÷ (4) SHOULDER BOLTS (8) LOCKNUTS (4) CAPSCREWS 1/4=20 1/4=20 x 2 (AUGER SHAFT) 1/4=20 x 1=5/8 (iMPELLER) ROTATER HEAD MOUNTING...
-
Page 5: Assembly / Pre-Operation
ASSEMBLY / PRE-OPERATION Read these instructions and this manual in its entirety SPEED before you attempt to assemble or operate your new CONTROL snow thrower, Reading the entire manual will familiar- ize you with the unit, which will assist you in assembly, operation and maintenance of the product, PLASTIC TIE Your new snow thrower has been assembled at the factory... - Page 6 ASSEMBLY / PRE-OPERATION INSTALL TRACTION DRIVE CONTROL ROD INSTALL AUGER CONTROL ROD (See Figs. 5 and 6) (See Figs. 3 and 4) The auger control rod has the short loop on the end of the The traction drive control rod has the long loop on the end spring as shown, of the spring as shown.
-
Page 7: Assembly / Pre-Operation
ASSEMBLY / PRE-OPERATION INSTALL DISCHARGE CHUTE / CHUTE ROTATER CHUTE SPRING 1/4-20 HEAD (See Fig. 7) NOTE: The multi-wrench provided in your parts bag may BOLT NYLON be used to install the chute rotater head, WASHER HOOK BETWEEN Place discharge chute assembly on top of chute base CABLE HEX NUTS with discharge opening toward front of snow thrower,... -
Page 8: Operation
OPERATION KNOW YOUR SNOW THROWER READ TI-IIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATINGYOUR SNOW TI-IROWER, Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product. - Page 9 OPERATION SPARK ENGINE OIL CAP AUGER DRIVE DISCHARGE TRACTION _WITH DIPSTICK CONTROL SPEED CHUTE DRIVE SAFETY CONTROL CONTROL CONTROL IGNITION LEVER LEVER -GASOLINE FILLER CHUTE CHOKE DEFLECTOR CON- LH TURN TRIGGER .DRAIN PLUG THROTTLE DEFLECTOR / ENGINE REMOTE CONTROL CONTROL DISCHARGE LEVER CHUTE...
- Page 10 OPERATION The operation of any snow thrower can result TO USE CHOKE CONTROL (See Fig. 13) in foreign objects thrown into the eyes, which The choke control is located on the engine, Use the choke can result in severe eye damage, Always wear control whenever you are starting a cold engine, Do not safety glasses or eye shields while operating use to start a warm engine,...
- Page 11 OPERATION TO THROW SNOW (See Fig. 15) TO MOVE FORWARD AND BACKWARD (See Fig. 17) The auger rotation is controlled by the auger control lever SELF-PROPELLING, forward and reverse movement of located on the right side handle, the snow thrower, is controlled by the traction drive control lever located on the left side handle, •...
- Page 12 OPERATION TO ADJUST SKID PLATES (See Fig. 19) NOTE: The wrench provided in your parts bag may be used fuel. Do not store, spill or use gasoline WARNING: Wipe off any spilled oil or to adjust the skid plates, near an open flame. Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the CAUTION:...
-
Page 13: Operation
OPERATION COLD START - ELECTRIC STARTER ELECTRIC STARTER Insert safety ignition key into the ignition slot until it Connect the power cord to the engine. clicks. DO NOT turn the key. Keep the extra safety Plug the other end of the power cord into a three-hole ignition key in a safe place. -
Page 14: Maintenance
MAINTENANCE MAINTENANCE SCHEDULE F, ,,O TeS REGULAR SERVICE Check for Loose Fasteners Clean/Inspect Snow Thrower Check / Replace V-Belts Lubrication Chart Check Engine Oil Level Change Engine Oil Inspect Muffler Check / Replace Spark Plug Empty Fuel Tank GENERAL RECOMMENDATIONS LUBRICATION CHART The warranty on this snow th rowe r does not cover items that... -
Page 15: Maintenance
MAINTENANCE AUGER GEAR CASE • Oil will drain more freely when warm. • Catch oil in a suitable container. • The gear case was filled with lubricant to the proper level at the factory. The only time the lubricant needs NOTE: The left side wheel may be removed from snow attention is if service has been performed on the gear thrower for easier access to the oil drain plug and place-... -
Page 16: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: To avoid serious injury, before performing any service or adjustments: Remove safety ignition key. Be sure throttle is in STOP position• • Make sure the augers and all moving parts have completely stopped• Disconnect spark plug wire from spark plug and place wire where it cannot contact plug. CAUTION: Do not substitute•... - Page 17 SERVICE AND ADJUSTMENTS 12. Install the two (2) hex bolts and lock washers and WARNING: Belt replacement requires tighten securely. separation of the snow thrower. While separating the auger housing from the 13, INSTALL ENGINE PULLEY - Place belt in pulley groove &...
-
Page 18: Storage
SERVICE AND ADJUSTMENTS ENGINE ENGINE SPEED Never tamper with the engine governor, which is factory set See engine manual. for proper engine speed, Overspeeding the engine above CARBURETOR the factory high speed setting can be dangerous and will Your carburetor is not adjustable, Engine performance void the warranty. -
Page 19: Troubleshooting
TROUBLESHOOTING See appropriate section in manual unless directed to a qualified service centre. PROBLEM CAUSE CORRECTION Does not start Fuel shut-off valve (if so Turn fuel shut-off valve to OPEN position. equipped) in OFF position, Safety ignition key Insert safety ignition key. is not inserted, Out of fuel, Fill fuel tank,... - Page 20 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) AUGER HOUSING/IMPELLER ASSEMBLY /,4'_ "_\ 20 23 24...
-
Page 21: Repair Parts
REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) AUGER HOUSING / IMPELLER ASSEMBLY PART DESCRIPTION 191079 Pulley, Impeller 188909 Bearing Assembly, Flange 155377 Nut, Hex Flange 5/16-18 180355 Bolt, Flat Head, Carriage 5/16-18 x 5/8 72270505 Bolt, Carriage 5/16-18 178820... - Page 22 '_V& ..
- Page 23 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) CONTROL PANEL / DISCHARGE CHUTE PART DESCRIPTION 183334 Knob, Lever 17501010 Screw #10-24 x 5/8 178674 Control Assembly, Deflector 73800600 Nut, Lock 3/8-16 19131316 Washer, Flat 3/8 178659 Control Assembly, Chute Rotater...
- Page 24 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) 28 3 ..32 .." -..3...
- Page 25 REPAIR PARTS SNOW THROWER- MODEL PO927ES (96197000200) HANDLES PART DESCRIPTION 178875X479 Lever, Auger Control, RH 178648X479 Lever, Traction Drive Control, LH 179439 Nut, Cage 1/4-20 178888 Bushing, Flange 169675 Retainer, Hairpin 180402 Screw, Hex Head 1/4-20 x 3/4 178652 Rod, Interlock...
- Page 26 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) DRIVE...
- Page 27 REPAIR PARTS SNOW THROWER- MODEL PO927ES (96197000200) DRIVE PART DESCRIPTION 146315 Screw, Hex Head 5/16-18 x 3/4 73800500 Nut, Lock 5/16-18 155415 Washer, Flat 17490508 Screw, Hex Head 5/16-18 x 1/2 180017 Bearing, Flange 180134 Shaft, Auxiliary 179270 Spacer, Plate...
- Page 28 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) CHASSIS / ENGINE / PULLEYS 47 -...
- Page 29 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) CHASSIS / ENGINE / PULLEYS PART PART DESCRIPTION DESCRIPTION 181044 155452 Spring, Traction Idler Guide, Belt 180522 192213 Pulley, Idler (2-1/4) Belt Cover Assembly - - - Engine, Tecumseh, Model Number (Includes Toolbox Cover)
- Page 30 REPAIR PARTS SNOW THROWER - MODEL PO927ES (96197000200) WHEELS / DECALS " --" ..26...
- Page 31 Clip, Retainer 12000045 Ring, Retaining 146315 Screw, Hex Head, Tapping 5/16-18 x 5/8 PART DESCRIPTION 181037 Decal, Danger 199221 Decal, Poulan, 9 HP / 27" 181035 Decal, Danger, Deflector 181042 Decal, Danger 183879 Decal, Poulan 181033 Decal, Instruction 155798 Decal, Traction Lever...
-
Page 32: Warranty
LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship, For a period of two (2) years from date of purchase by the original consumer pur- chaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
