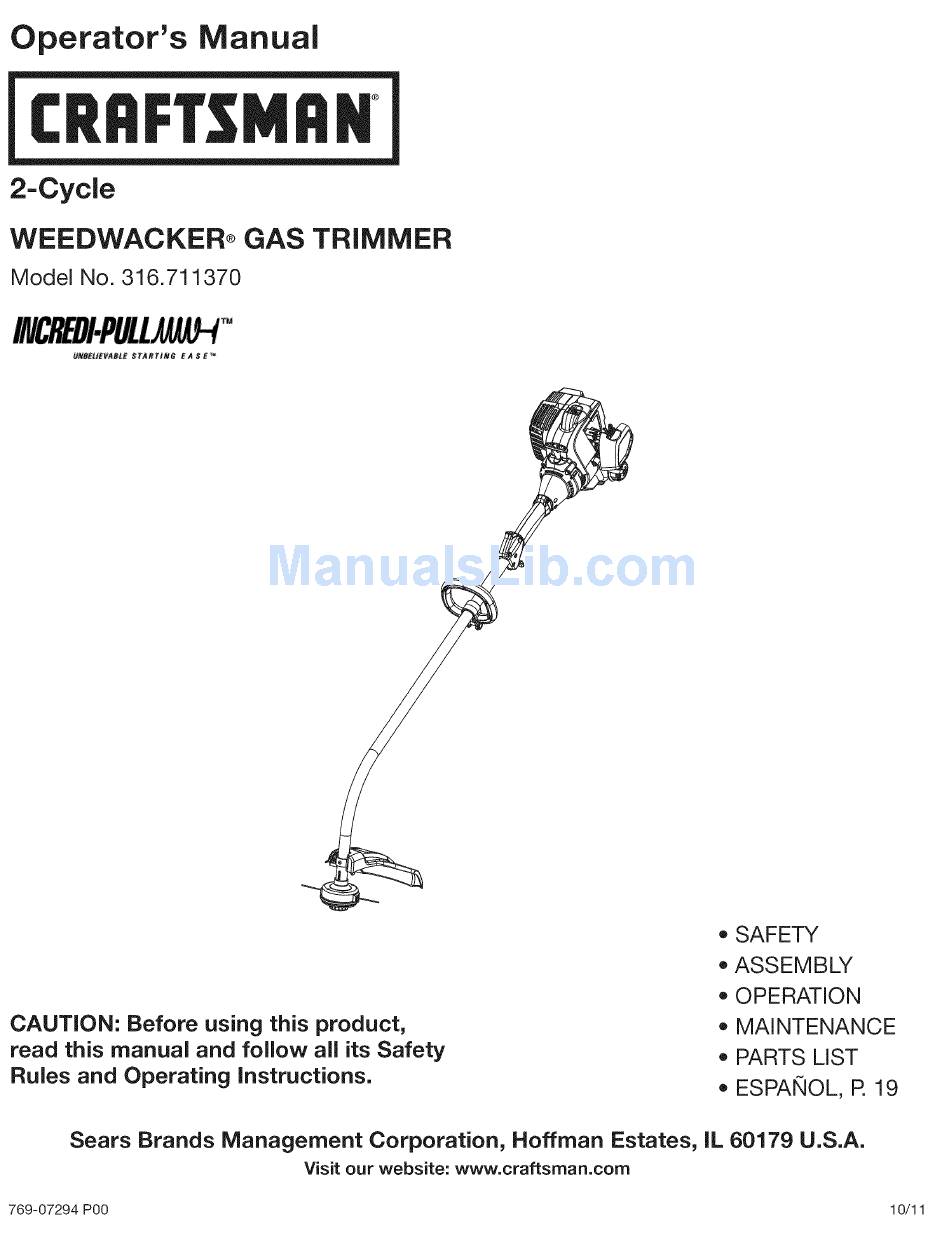

Operator's
Manual
M
2-Cycle
WEEDWACKER® GAS TRIMMER
Model No. 316.711370
UNBELIEVABLE
STARTING
E A S E _=
k._
CAUTION:
Before
using this product,
read this manual and follow
all its Safety
Rules and Operating
instructions.
,, SAFETY
* ASSEMBLY
* OPERATION
* MAINTENANCE
* PARTS LIST
* ESPANOL, R 19
Sears Brands Management
Corporation,
Hoffman Estates, IL 60179 U.S.A.
Visit our website:
www.craftsrnan.corn
769-07294 P00
10/11

Advertisement

Table of Contents
loading

Summary of Contents for Craftsman WEEDWACKER INCREDI.PULL 316.711370

  • Page 1 Operator's Manual 2-Cycle WEEDWACKER® GAS TRIMMER Model No. 316.711370 UNBELIEVABLE STARTING E A S E _= ,, SAFETY * ASSEMBLY * OPERATION CAUTION: Before using this product, * MAINTENANCE read this manual and follow all its Safety * PARTS LIST Rules and Operating instructions.
  • Page 2 TABLE OFCONTENTS Safety..........Warranty ..........Know Your U nit........Specifications ......... Assembly ..........OilandFuel ........... Starting a nd Stopping ........Operation ..........Maintenance ......... Cleaning andStorage ........Troubleshooting ........Repair Protection Agreements ......Parts L ist..........Service N umbers ......Back Cover Allinformation, illustrations...
  • Page 3 • iMPORTANT SAFETY iNSTRUCTiONS READ ALL iNSTRUCTiONS BEFORE OPERATING The trimmer attachment shield must always be in place while operating the unit. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the WARNING: When using the unit, all safety rules must be trimming line beyond the length of the shield.
  • Page 4 SAFETY & iNTERNATiONAL SYMBOLS This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING SYMBOL MEANING '_,SAFETY ALERT SYMBOL Indicates danger, warning or Caution.
  • Page 5 With proof of purchase, a new housing will be supplied free of charge. You are responsible for the labor cost of installation. This additional coverage does not apply to inner trimmer shaft components. For warranty coverage details to obtain free repair or replacement, visit the web site: www.craftsman.com This warranty covers ONLY defects in material and workmanship.
  • Page 6: Product View

    APPLiCATiONS Muffler Asatrimmer: Spark Plug • Cutting g rass andlight w eeds. Starter Edging Rope Decorative trimming around t rees, fences, etc. Choke Lever Other o ptional accessories may beused withthisunit. NO ASSEMBLY TOOLS REQUIRED Fuel Cap Throttle Control Shaft Housing Primer Bulb Cutting...
  • Page 7 iNSTALLiNG THE CUTTING HEAD SHIELD Slot Mount Bracket Cutting Head Shield operate the unit without the cutting head shield in place. WARNING: To prevent serious personal injury, never Use the following instructions if the cutting head shield is not installed. Use only the instructions that apply to the type of shaft and shield equipped with this unit.
  • Page 8: Oil And Fuel Mixing

    FUELING THE UNiT OiL AND FUEL MiXiNG iNSTRUCTiONS The use of old and/or improperly mixed fuel is the most common cause WARNING: Gasoline is extremely flammable, ignited of performance problems. Use only fresh, clean unleaded gasoline. vapors may explode. Always stop the engine and allow it Follow the instructions carefully for the proper gasoline/oil mixture.
  • Page 9 Off (O) / Stop outdoor area. Carbon monoxide exhaust fumes can be I WARNING: lethal in a confined area. Operate this unit only in a well-ventilated serious injury, the operator and the unit must be in a stable _L_____J ARNING: Avoid accidentally starting the unit.
  • Page 10 HOLDING THE TRIMMER body protection to reduce the risk of injury when operating this unit. • Stand in the operating position (Fig. 7). • Hold the shaft grip with the right hand. Keep the right arm slightly bent. • Hold the handle with the left hand. Keep the left arm straight. •...
  • Page 11: Maintenance Schedule

    WARNING: To prevent serious injury, never perform Outer Bolt Bump Knob maintenance or repairs while the unit is running. Always allow the unit to cool before servicing or repairing the unit. Disconnect the spark plug wire to prevent the unit from starting accidentally.
  • Page 12 Part 2 - Winding New Trimming Line onto the inner Reel If using single line, refer to Winding Single Line. • If using split line, refer to Winding Split Line. If using a prewound inner reel, proceed to Part 3 - Installing the Inner Reel.
  • Page 13: Cleaning Air Filter

    MAiNTAiNiNG THE AiR FILTER Air Filter the engine and allow it to cool before cleaning or maintaining WARNING: avoid serious personal injury, always stop | the unit. Failure to maintain the air filter can result in poor performance or can cause permanent damage to the engine.
  • Page 14 MAiNTAiNiNG THE SPARK PLUG 1. Stop the engine and allow it to cool. Grasp the spark plug boot firmly and pull it from the spark plug. 2. Clean around the spark plug. Remove the spark plug from the cylinder head with a 5/8-inch socket, turning counterclockwise. electrodes.
  • Page 15 CLEANING STO RAG E • Never store a fueled unit where fumes may reach an open flame or spark. the engine and allow it to cool before cleaning or maintaining Allow the engine to cool before storing. WARNING" the unit. avoid serious personal injury, always stop Lock up the unit to prevent unauthorized use or damage.
  • Page 16 PROBLEM SOLUTION The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly mixed fuel The fuel is old (over 30 days) and/or improperly mixed...
  • Page 18 Congratulations on making a smart purchase. Your new Craftsman@ product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That's when having a Repair Protection Agreement can save you money and aggravation.
  • Page 19 * OPERACION producto lea este manual y siga todas * MANTENIMIENTO las reglas de seguridad e instrucciones * LISTA DE PIEZAS de operaci6n. Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. Visite nuestro sitio web: www.craftsman.com 769-07294 P00 10/11...
  • Page 20 TABLA DE CONTENIDO Seguridad ........... Garantia ..........Conozca su unidad ........Especificaciones ........Ensamblaje .......... Aceite y combustible ........Arranque y parada ........Operaci6n ........... Mantenimiento ........Limpieza y almacenamiento ......Localizaci6n y soluci6n de problemas ..... Convenio de protecci6n de reparaci6n ..... Lista de piezas ........
  • Page 21 • INSTRUCCIONES DE SEGURIDAD IMPORTANTES • LEA TODAS LAS INSTRUCCIONES ANTES DE OPERAR AL OPERAR LA UNIDAD LA UNIDAD Lleve puestas gafas o lentes de seguridad que cumplan las normas ANSI Z87.1 y esten marcados como tales. Use siempre protecci6n para los oidos al operar esta unidad.
  • Page 22 • Espere aqueelmotor s eenfrie para guardar otransportar la unidad. Cerci6rese deasegurar bien launidad a ltransportarla. Guarde l aunidad e nunlugar s eco, b ajo Ilave o enalto, a finde evitar suusonoautorizado oda_o. M antengala fuera del alcance delosni_os. Nomoje nirocie launidad c onagua niconningQn otroliquido. Mantenga losmangos secos, limpios y sinsuciedades.
  • Page 23 Para conocer los detalles de la cobertura de garantia para la reparaci6n o reempJazo gratuitos, visite el sitio web: www.craftsman.com Esta garantia cubre SOLAMENTE defectos de materiales o mano de obra. La cobertura de garantia NO incluye: •...
  • Page 24 usos Silenciador Como recortadora: Bujia de encendido Cortar cesped y malas hierbas escasas. Agarre de la cuerda Orillar (bordear) Palanca Hacer recortes decorativos alrededor de arboles, cercas, etc. de arranque obturador Con esta unidad se pueden utilizar otros accesorios opcionales. Empufiadu ra del eje NO SE REQUIERE DE HERRAMIENTAS...
  • Page 25 INSTALACI()N DEL PROTECTOR DEL CABEZAL DE CORTE Ra FtlLIra Protector del Soporte de cabezal de corte montaje graves, no opere nunca la unidad sin el protector del ADVERTENClA: Para evitar lesiones personales cabezal de corte colocado. Si el protector del cabezal de corte no esta instalado, siga las instrucciones a continuaci6n.
  • Page 26 Mezclar el combustible INSTRUCCIONES PARA MEZCLAR EL ACEITE Y EL COMBUSTIBLE NOTA: Esta unidad trae un frasco de 3.2 onzas de aceite para motor de 2 tiempos. Para que la mezcla de combustible descrita El uso de un combustible viejo y/o mal mezclado es la causa mas anteriormente sea la correcta, echele la botella completa a un comQn de problemas de funcionamiento.
  • Page 27 Apagado(O)/Parada a.rea exterior bien ventilada. El mon6xido de carbono de ADVERTENClA: Opere esta unidad solamente en un los gases de escape puede ser letal en un Area confinada. accidente. A fin de evitar lesiones graves, el operador y la unidad deben estar en una posici6n estable al tirar de la ADVERTENOIA: Evite arrancar la unidad por cuerda de arranque (Fig.
  • Page 28 SOSTENER L A RECORTADORA i ! ov o °c,,; ,o e a e taun,dad puesta protecci6n para los ojos, oidos, pies y cuerpo a fin de reducir el riesgo de lesiones. • Parese en la posici6n de operaci6n (Fig. 7). Sostenga la empu_adura del eje con la mano derecha.
  • Page 29 ADVERTENClA: Para evitar lesiones graves, no haga Bobina exterior .. Perno PeriUa nunca ningQn mantenimiento ni reparaci6n con la unidad percusiva funcionando. Siempre deje que la unidad se enfrie antes de darle mantenimiento o repararla. Desconecte el cable de la bujia para evitar que la unidad arranque por accidente.
  • Page 30 Parte 2 - Enrollar la nueva linea de corte en el carrete interior Si usa una sola linea, consulte Enrollar una Ifnea sola. • Si usa una linea dividida, consulte Enrollar una Ifnea dividida. Pared separadora Siesta usando un carrete interior prebobinado, pase a la Parte 3 - Instalar el carrete interior.
  • Page 31 MANTENIMIENTO DEL FILTRO DE AIRE Filtro apague siempre el motor y deje que se enfrie antes de ADVERTENClA: Para evitar lesiones personales graves, mp ar o dar manten m ento a a un dad. No dar mantenimiento al filtro de aire correctamente puede hacer que el motor funcione mal o dafiarlo para siempre.
  • Page 32 MANTENIMIENTO DE LA BUJiA 1. Detenga el motor y dejelo enfriar. Agarre firmemente la pipa (capucha) y saquela de la bujia. 2. Limpie alrededor de la bujia. Saque la bujia de la culata girandola en sentido contrario a la agujas del reloj con una Ilave de bujia de 5/8 de pulgada.
  • Page 33 LIMPIEZA ALMACENAiVllENTO • No guarde nunca la unidad con combustible en el tanque en un lugar en el que los gases puedan ponerse en contacto con una graves, apague siempre el motor y deje que se enfrie antes llama expuesta o chispas. ADVERTENClA: Para evitar lesiones personales de limpiar o dar mantenimiento...
  • Page 34 PROBLEMA SOLUCION La pera del cebador no se oprimi6 Io suficiente Oprima la pera del cebador 10 veces o hasta que se vea el combustible El combustible esta viejo (tiene mas de 30 dias) y/o mal mezclado Vacie el tanque de combustible y eche combustible nuevo bien mezclado El combustible esta viejo (tiene mas de 30 dias) y/o mal mezclado Vacie el tanque de combustible y eche combustible nuevo bien mezclado...
  • Page 36 Felicitaciones por haber hecho una compra inteligente. Su nuevo producto Craftsman@ fue dise_ado y fabricado con vistas a una operaci6n confiable por a_os. Pero como todos los productos, es posible que sea necesario repararlo alguna vez. Ahi es cuando tener un Convenio de Protecci6n de Reparacidn puede ahorrarle dinero y problemas.
  • Page 38: Replacement Parts 2-Cycle Gas Trimmer

    REPLACEMENT PARTS - MODEL 316.711370 2-CYCLE GAS TRIMMER item Part No. Description item Part No. Description Crankcase Bolt 753-06194 Rear Cover Assembly (includes 2 & 3) 791-182723 791-181345 Cover Screw 753-06275 Crankcase O-Ring 791-181862 Housing Screw 753-06189 Insulator Assembly (includes 22 & 23) 753-06174 O-Ring 753-06184...
  • Page 39 REPLACEMENT PARTS - MODEL 316.711370 2-CYCLE GAS TRIMMER item Part No. Description 753-06790 Throttle Housing Assembly (includes 2-4) 791-182405 Switch 753-06791 Throttle Trigger 791-182690 Throttle Trigger Spring 753-06065 Flexible Drive Shaft 753-05748 Drive Shaft Housing Assembly (includes 5) 753-06198 D-Handle (includes 8) 753-06199 D-Handle Hardware Assembly 753-04282...
  • Page 40 Your Home For troubleshooting, product manuals and expert advice: managemylife www.managernylife.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's...
