MTD Series 610 Operator's Manual

Hydrostatic lawn tractor
Hide thumbs Also See for Series 610:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Safe Operation
Practices • Set-Up • Operation
• Maintenance
• Service • Troubleshooting
• Warranty

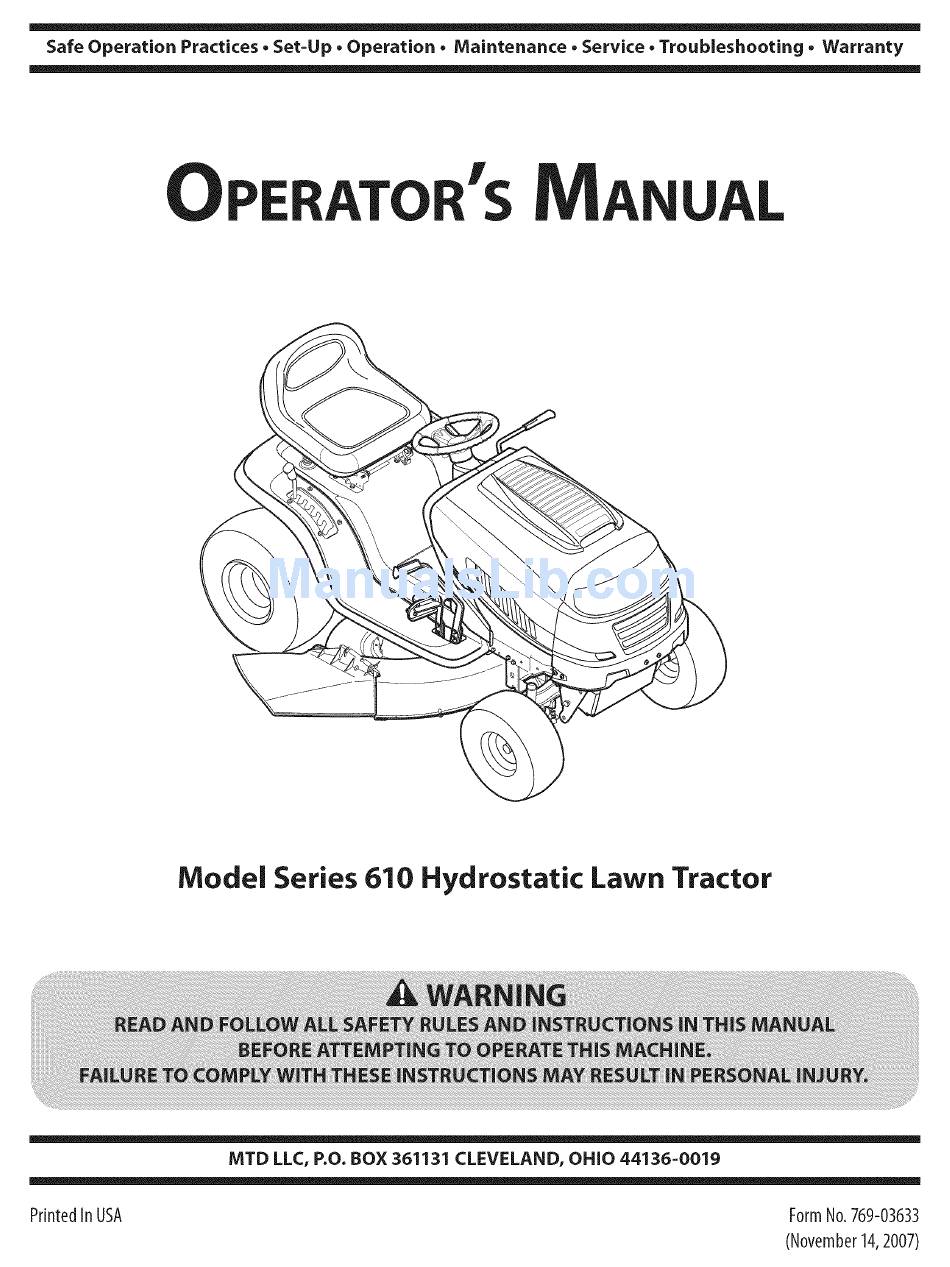

OPER roR's
L
Model Series 610 Hydrostatic
Lawn Tractor
MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019
PrintedIn USA
FormNo.769-03633
(November 1 4,2007)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Series 610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTD Series 610

Summary of Contents for MTD Series 610

  • Page 1 Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty OPER roR's Model Series 610 Hydrostatic Lawn Tractor MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019 PrintedIn USA FormNo.769-03633 (November 1 4,2007)

  • Page 2: Customer Support

    Choose from the options below: Visit us on the web at www.mtdproducts.com Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683 Write us at MTD LLC • RO. Box 361131 • Cleveland, OH • 44136-0019...

  • Page 3: Important Safe Operation Practices

    importantSafeOperation Practices WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
  • Page 4 12. Amissing ordamaged discharge cover can cause blade Slope Operation contact orthrown o bject injuries. Slopes are a major factor related to loss of control and tip-over 13. Stop t heblade(s) when crossing gravel drives, walks, or accidents which can result in severe injury or death. All slopes roads a nd while notcutting g rass.

  • Page 5: General Service

    Children Use only an approved gasoline container. Never fill containers inside a vehicle or on a truck Tragic accidents can occur if the operator is not alert to the or trailer bed with a plastic linen Always place presence of children. Children are often attracted to the...

  • Page 6: Spark Arrestor

    Check the blade(s) and engine mounting bolts at frequent Notice Regarding Emissions intervals for proper tightness. Also, visually inspect blade(s) Engines which are certified to comply with California and federal for damage (e.g., excessive wear, bent, cracked). Replace EPA emission regulations for SORE (Small Off Road Equipment) the blade(s) with the original...
  • Page 7 Sight and hold this level with a vertical tree... or a corner of a building... ¢N 15 ° Usethis page as a guide to determine slopeswhere you may not operate safely. WARNING: Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet).

  • Page 8: Tractor Set-Up

    MTD LLC reserves the right to change product Locate the shipping brace, if present, and accompanying specifications, designs and equipment without...
  • Page 9 Attaching The Seat Seat styles vary by tractor model and there are three different styles available: Standard Adjustment Quick Adjustment Knob Adjustment If the seat for your tractor was not attached at the factory, refer to Fig. 3-5, Fig. 3-6, and Fig. 3-7 to identify your tractor's seat style and follow the applicable instructions below to attach it.

  • Page 10: Quick Adjustmentseat

    To adjust the position of the seat on models equipped with Select desired position for the seat, and secure with the a seat adjustment lever, move the seat adjustment lever two knobs removed earlier. See Fig. 3-6. (located under the seat) to the left and slide the seat forward To adjust the position of the seat on models so equipped, or rearward.
  • Page 11 TirePressure Pull the hydrostatic bypass rod outward, then down and to the left, to lock it in place. NOTE:The transmission will NOT engage when the hydrostatic circumstances is 30 psi. Equal tire pressure should bypass rod is pulled out. Return the rod to its normal position WARNING: maintained at all times.

  • Page 12: Controls And Features

    Controls a ndFeatures Parking Brake PTO (Blade Engage) Lever Ammeter Peda I ignition Switch throttle/Choke Lever Cruise Control Module Seat Adjustment Lever (if equipped) Cup Holder Deck Lift Lever Figure 4=1 Lawn Tractor controls and features are illustrated in Fig 4-1 and described on the following pages.

  • Page 13: Throttlecontrol Lever

    ThrottleControl Lever Ignition Switch The throttle control lever is located on the right side of the The ignition switch is activated to start the engine. Insert key tractor's dash panel. This lever controls the speed of the engine into the ignition switch and turn clockwise to the START position.
  • Page 14 DeckLift Lever DrivePedal Found on your tractor's right fender, the deck lift lever is used to The drive pedal is located on the right side of change the height of the cutting deck. To use, move the lever to the tractor, along the running board.
  • Page 15 PTO (Blade Engage) PTO(BladeEngage)Lever If the PTO light illuminates when attempting to start the tractor's The PTO (Blade Engage) lever is located on the left side of the engine, move PTO lever into the disengaged (OFF) position. dashboard next to the steering wheel.

  • Page 16: Operation

    If the interlock system should ever key switch module. See Fig. 4-5. malfunction, do not operate the tractor. Contact an authorized MTD service dealer. The safety interlock system prevents the engine from cranking or starting unless the parking brake is engaged, Reverse...
  • Page 17 Depress the REVERSE PUSHBUTTON (Orange, Triangular Starting the Engine Button) at the top, right corner of the key switch module. The red indicator light at the top, left corner of the key switch module will be ON while activated. See Fig. 4-5. interlock system is malfunctioning.

  • Page 18: Driving On Slopes

    Depress the brake pedal to release the parking brake and Depress the brake pedal to disengage the cruise control let the pedal up. and stop the tractor. Move the throttle lever into the FAST (rabbit) position. Lightly depress the drive pedal. To change the direction of travel to reverse when operating with...
  • Page 19 first two laps, reverse the direction to throw the discharge Mulching(If so equipped) to the outside for the balance of cutting. This will give a Select models come equipped with a mulch kit which better appearance to the lawn. incorporates special blades, already standard on the tractor, in a...

  • Page 20: Maintenance And Adjustments

    Maintenance& Adjustments Maintenance Push the oil drain hose (packed with this manual) onto the oil drain port. Route the opposite end of the hose into an WARNING: Before performing any maintenance appropriate oil collection container with at least a 2.5 quart repairs, disengage PTO, move shift lever into neutral capacity,...

  • Page 21: Cleaning The Engineanddeck

    Cleaning the EngineAndDeck Any fuel or oil spilled on the machine should be wiped promptly. Do NOT allow debris to accumulate around the cooling fins of the engine or on any other part of the machine. IMPORTANT: The use of a pressure washer to clean your tractor is NOT recommended.

  • Page 22: Levelingthe Deck

    While sitting in the operator's position on the tractor, start the engine and place the throttle lever in the FAST (rabbit) position. Move the tractor's PTO (Blade Engage) into the ON position. Remain in the operator's position with the cutting deck engaged for a minimum...

  • Page 23: Parking Brake Adjustment

    Characteristics and features discussed and/ or illustrated in this manual may not be applicable to all models. MTD LLC reserves the right to change product specifications, designs and equipment without notice and without incurring obligation. IMPORTANT:...
  • Page 24 Service CuttingDeckRemoval NOTE:Models equipped with a 38-inch deck have one deck idler pulley. Models equipped with a 42- and 46-inch deck have two deck idler pulleys. To remove the cutting deck, proceed as follows: Place the PTO (Blade Engage) lever in the disengaged (OFF) position and engage the parking...
  • Page 25 Tires Charging WARNING! Batteries give off an explosive while charging. Charge the battery in a well pressure shown on the sidewall of tire. WARNING! Never exceed the maximum inflation ventilated area and keep away from an open flame or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.

  • Page 26: Cutting Blades

    Cutting Blades WARNING! Shut the engine off and remove ignition key before removing the cutting blade(s) for sharpening or replacement. Protect your hands by using heavy gloves when grasping the blade. WARNING! Periodically inspect the blade and/or spindle for cracks or damage, especially after you've struck a foreign object.

  • Page 27: Drive Belts

    NOTE: Several components must be removed in order to change the tractor's lower deck belt. See an authorized MTD Service follows: Dealer to have your lower drive belt replaced or phone Customer Remove the belt keeper rod(s) from around the engine...
  • Page 28 46qnch Deck © © Idler Pulleys Belt Cover Figure 7-7 46-inch Deck (ElectricPTO) Electric PTO Clutch © Belt Guard Figure7-8 SECTION 7-- SERVICE...

  • Page 29: Troubleshooting

    Troubleshooting Problem Cause Remedy Engine fails to start PTO/Blade engaged. 1. Place knob (or lever) in disengaged (OFF) position. 2. Spark plug wire disconnected. 2. Connect wire to spark plug. 3. Fuel tank empty, or stale fuel. 3. Fill tank with clean, fresh (less than 30 day- old) gas.

  • Page 30: Replacement Parts

    Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. MTD LLC reserves the right to change product specifications, designs and equipment without notice and without incurring obligation. NOTE: Download a complete Parts Manual free of charge at www.mtdprod...

  • Page 31: Attachments & Accessories

    (800) 800-7310 for informationregardingpriceand availability. (e.g. tiller or plow). Use of this type of equipment WILL void the tractor's warranty. CAUTION: Model Series 610 Lawn Tractors are NOT designed for use with any type of ground-engaging attachments Model Number Description...
  • Page 32 Notes...
  • Page 33 SECTION 11 = NOTES...
  • Page 34 SECTION 11-- NOTES...
  • Page 35 MTD. OWNER'S WARRANTY RESPONSIBILITIES: As the smalloff-roadengineowner,youare responsible for the performance of the requiredmaintenancelistedin yourOwner'sManual.MTD recommends that you retainall your receiptscoveringmaintenances on yoursmall off-roadengine,but MTDcan notdenywarrantysolely for the lack of receiptsor for yourfailureto ensurethe performanceto all scheduledmaintenance. As the smalloff-roadengineowner,youshouldhoweverbe awarethat MTDmaydenyyour warrantycoverageif yoursmall off-roadengineor part hasfaileddue to abuse,neglect,impropermaintenance or unapprovedmodifications.
  • Page 36 (8)Throughout the engine's warranty period defined inSubsection (a)(2), MTD will m aintain asupply ofwarranted parts s ufficient tomeet the expected demand forsuch parts. (9)Any replacement part m ay b eused i nthe performance...

  • Page 37: Limited Warranty

    MANUFACTURER'S LiMiTED WARRANTY The limited warranty set forth below is given by MTD LLC with c. Routine maintenance items such as lubricants, filters, blade respect to new merchandise purchased and used in the United States sharpening, tune-ups, brake adjustments, clutch adjustments,...
