Hydrostar Drain Monster 68285 Owner's Manual & Safety Instructions

50 foot drain cleaner
Hide thumbs Also See for Drain Monster 68285:

Advertisement

Table of Contents

Owner's Manual & Safety Instructions
Save This Manual
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
50 FOOT
DRAIN CLEANER
ITEM 68285
REV 12b
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
©
Copyright
2011 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly, operating,
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
®
. All rights reserved.
ITEM 68284
WITH POWER FEED
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Advertisement

Table of Contents
loading

Related Manuals for Hydrostar Drain Monster 68285

Summary of Contents for Hydrostar Drain Monster 68285

  • Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SAVE THIS MANUAL.

  • Page 2: Table Of Contents

    2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Page 2 For technical questions, please call 1-800-444-3353. Item 68284 68285...

  • Page 3: Electrical Safety

    Power tools are dangerous in the hands of untrained users. Item 68284 68285 For technical questions, please call 1-800-444-3353. Page 3...
  • Page 4 If unreadable or missing, contact of supporting the weight of the Drain Cleaner. Harbor Freight Tools for a replacement. 13. Do not operate the Drain Cleaner with 2. Wear ANSI-approved safety impact eye the belt guard removed.
  • Page 5 If any abnormal seek medical advice as soon as possible. vibration occurs, stop use immediately. SAVE THESE INSTRUCTIONS. Item 68284 68285 For technical questions, please call 1-800-444-3353. Page 5...
  • Page 6 Note: The Power Cord is not GFCI protected from the GFCI unit to the 3-prong plug in the electrical outlet. Page 6 For technical questions, please call 1-800-444-3353. Item 68284 68285...

  • Page 7: Specifications

    Drum Capacity up to 100′ of 3/8″ Cable Cable Type 1/2″ Dia. x 50′ Long (Not Included) Drain Pipe Capacity 2″ to 4″ I.D. ITEM 68284 includes Power Feed Item 68284 68285 For technical questions, please call 1-800-444-3353. Page 7...

  • Page 8: Setup

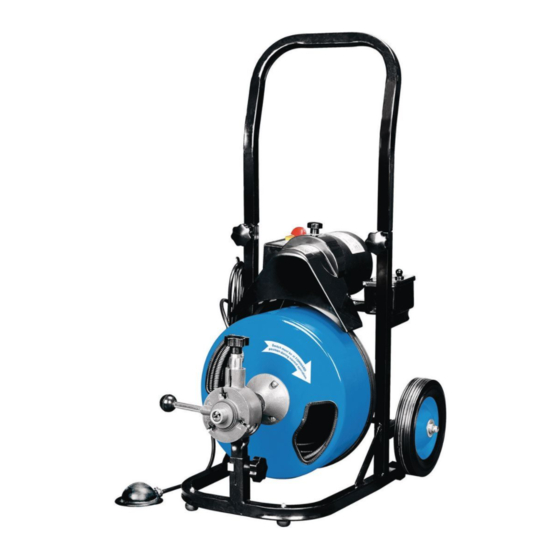

    Power-Feed Lever Wheel Sealed Air Activated Foot Switch Model 68284 Belt Guard Belt Guard Knob Frame Tool Tray Quick-Change Enclosed Drum Cable Sealed Air Activated Foot Switch Model 68285 Page 8 For technical questions, please call 1-800-444-3353. Item 68284 68285...
