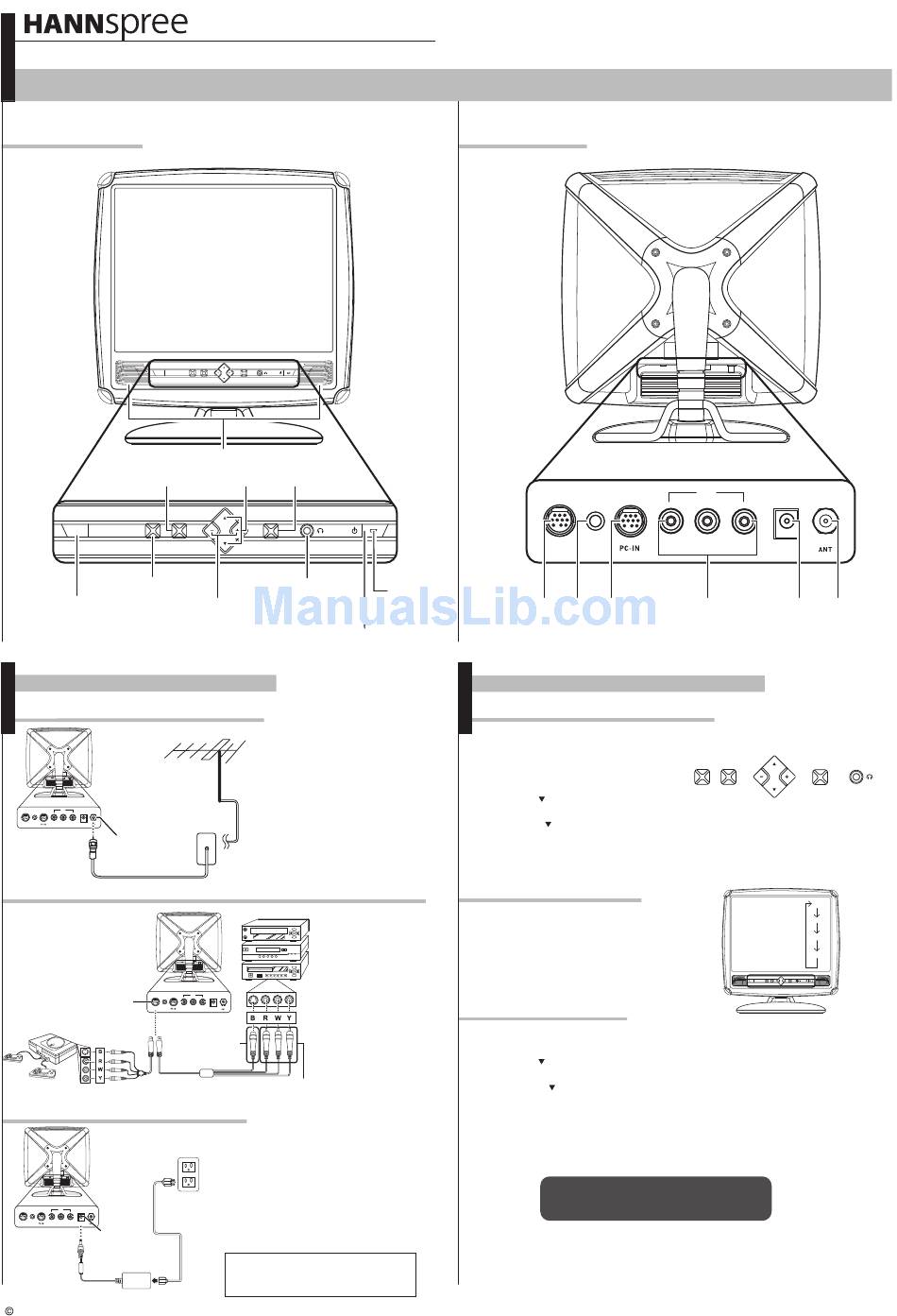

ST34-15U1 15" Liquid Crystal Display TV
This Guide is designed as a reference to help you start using your LCD TV quickly. Please Refer to the User's Manual for more detailed installation and safety instructions.
Front View
Menu
SOURCE
MENU
Source
Remote
IR sensor
Making Connections
Connecting to Antenna/Cable TV
Antenna
AV1
AV2
LINE OUT
R
L
VIDEO
DC-IN
ANT jack
(VHF/UHF IN Jack)
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD, DVD Player, or Video Game Console
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.
4-IN-1
A/V jack
AV2
LINE OUT
Video Game Console
4-IN-1 A/V cable
Connecting the Power Adapter
Power outlet
Power cord
AV1
AV2
LINE OUT
R
L
VIDEO
DC-IN
DC-IN
Power adapter
Copyright 2005, Hannspree California, Inc. All rights reserved.
Quick Start Guide
SOURCE
MENU
MUTE
Speakers
Channel select
Mute
MUTE
Earphone jack
Volume adjust
Power
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
2. The cables are
VCR
color-coded (black,
red, white, and yellow).
VCD
Connect each color-
DVD
coded cable to
the appropriate
connector on your
AV1
device.
R
L
VIDEO
DC-IN
S-Video
connector
AV connectors
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
Note : For information on connecting your
TV to a computer, refer to the user's
manual.
Rear
View
Power
indicator LED
AV2
A/V and Channel Setup
Watching Broadcast or Cable TV
1. After you have made the appropriate power and
source connections, press the POWER button to turn
on your television.
2. Press the SOURCE button to select TV mode.
3. Press the MENU button to enter the OSD menu.
4. Use the CH
5. Press the VOL + button to enter TV setting.
6. Press the CH
7. Press the VOL + button to select "TV" (broadcast
TV) or "CATV" (cable TV).
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the control
panel to select different source signals.
TV/CATV, "AV1", "AV2" or "PC" appears
on the screen.
Auto Channel Setup
Please follow the instructions by using the control panel.
1. Press the MENU button to enter the OSD menu.
2. Use the CH
3. Press the VOL + button to enter the TV setting.
4. Press the CH
5. Press the VOL + button to begin "Auto Program".
6. Your television will begin automatically memorizing the available channels.
AV1
AV2
LINE OUT
R
L
Line out PC-IN
AV1
SOURCE
button to select "TV".
button to select "TV/CATV".
button to select "TV".
button until the "Auto Program" feature is selected.
Auto Program
Channel Search
CATV
25
VIDEO
DC-IN
DC-IN
ANT
MENU
MUTE
TV
AV1
AV2
PC
SOURCE
MENU
MUTE
MAD-001129
