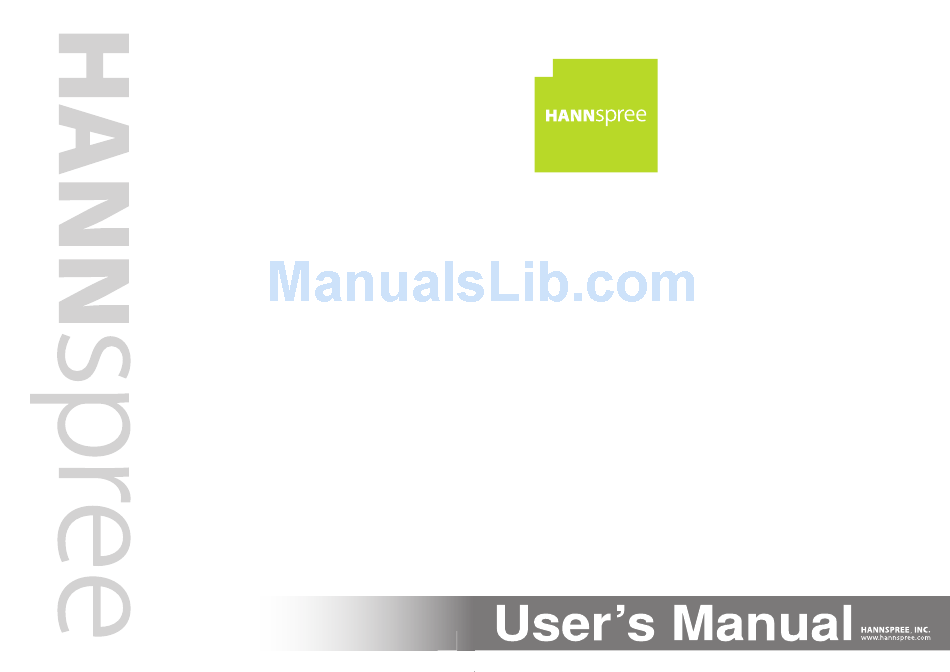

- Page 1 32” Liquid Crystal Display Television Flüssigkristallbildschirm Téléviseur à Écran à Cristaux Liquides TV de Pantalla de Cristal Líquido TV LCD TV Ecrã de Cristais Líquidos ЖКД ТВ LCD-tv Telewizor ciekłokrystaliczny LCD TV LCD TV LCD TV LCD TV Folyadékkristályos TV РК-телевізор...
-
Page 2: Table Of Contents
Table of Contents Regulatory Information ..............3 Description of Warning Symbols ..........3 Safety Notices ................4 Preface ..................6 Warranty and Service ..............6 1. Getting Started ................ 8 1.1 Package Contents ............. 8 1.2 Introducing the TV ............. 9 1.3 Features ................ - Page 3 Table of Contents 2.3.5 Adjusting the Volume ..........25 2.3.6 Editing the Favorite List .......... 26 2.3.7 Editing the Channel List .......... 26 3. Adjusting On-Screen Display (OSD) Settings ......27 3.1 OSD Setting Menus ............28 3.2 Adjusting Picture Settings ..........28 3.3 Adjusting Audio Settings ..........
-
Page 4: Regulatory Information
Directive 2006/95/EC on the harmonization of the laws of Member States relating to electrical equipment for use within certain voltage limits. Hannspree cannot accept responsibility for any failure to satisfy the requirements resulting from a non-recommended modification of the device. -
Page 5: Safety Notices
Safety Notices Installation Safety Notes Location Avoid allowing the TV to get prolonged exposure to sunlight or other strong sources of heat. Leave sufficient distance between the TV and the wall to provide enough space for the emission of heat. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. - Page 6 Personal Safety 1. To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable. 2. Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the casing. 3.
-
Page 7: Preface
The information in this manual is subject to change without notice. To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission in this manual, even if advised of the possibility of such damages in advance. - Page 8 Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software.
-
Page 9: Getting Started
Getting Started Package Contents Make sure the following components are included in the box. Please contact Hannspree Customer Service immediately if anything is missing or damaged. • • User’s manual • Quick start guide • Warranty card • Power cord •... -
Page 10: Introducing The Tv
Introducing the TV You can watch SECAM/ PAL/ DVB-T broadcast, cable, or digital television channels, Component and easily connect a VCR, STB or DVD player to the SCART, HDTV ( AV(Composite), and HDMI input ports (locations of these ports depend on the model). -
Page 11: Control Panel
Control Panel Description Button Function Power Press to turn the TV on or off. Input source INPUT Press to select the proper input source. Menu MENU Press to open the OSD menu. Press to increase the program number or Program select move upward to the previous item on the OSD menu. - Page 12 Description Connector Function SERVICE Service Service only. Not available for users. Connect to an external device, such as a S-VIDEO S-Video Input VCR, STB, or a DVD player. Composite Input Connect to an external device, such as a VIDEO (Video) VCR, STB, or a DVD player.
-
Page 13: Remote Control
Description Connector Function Connect to an external device, such as a SCART 2 IN VCR, STB, or a DVD player with AV, S- Video, L/R IN. VGA (PC) Input Connect to a PC’s VGA port. AUDIO IN PC Audio Input Connect to a PC’s line/audio port. - Page 14 Description Icon Function Use to select a program directly. Press 0-9 to Keypad enter the program numbers (press 1 and 0 for program 10). Press to display the program list. Pro.List Pro.LIST LAST Last Press to return to the last channel selected. 1.
- Page 15 Description Icon Function Press to change the multi sound selection of Dual sound the TV channel. Select Press P to increase the program number. program Press P to decrease the program number. Red, Green, Press the colored buttons to perform specific Yellow, Blue tasks in the OSD menu or teletext mode.
- Page 16 Description Icon Function Press continuously to toggle through all the Picture Mode picture settings: Vivid, Standard, Movie, or User. Press to open favorite list menu and press Favorite FAV. to select channels. Press OK to go to channel the selected channel. Press to pause a video frame on-screen.
-
Page 17: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries 1 Open the battery compartment cover at the back of the remote control (A). 2 Insert the batteries paying attention to the polarity markings inside the battery compartment (B). 3 Replace the battery compartment cover (C). - Page 18 CAUTION • If the remote control is not used for a long period, remove the batteries and store them properly. • Handle damaged or leaking batteries carefully, and wash hands with soap if they come in contact with leaked chemical fluids. •...
-
Page 19: Setting Up Your Tv
Setting up your TV Basic Connections 2.1.1 Power Connection 1 Connect the power cord to the AC IN input jack on the rear of the TV. 2 Insert the plug at the other end of the power cord into a power outlet. 2.1.2 Connecting an Antenna or Cable TV Connect one end of the VHF/UHF (Antenna) or CATV cable to TV/DTV jack on the... -
Page 20: Connecting External Devices
Connecting External Devices Connect external devices such as VCRs, STBs, DVD players, video game consoles, earphones, or a PC to the TV using the appropriate ports on the rear of the TV. 2.2.1 Connecting External Earphones Headphones Speakers (Built-in Amplifiers) Note: •... -
Page 21: Connecting To Av Devices
2.2.2 Connecting to AV Devices The following diagram illustrates how to connect the AV devices to your TV via HDMI (A), YPbPr/AUDIO (B), SCART (C), AV/SV (D) ports. HDMI IN AUDIO VIDEO HDMI 4 R-AUDIO-L VIDEO S-VIDEO SCART Adapter (Optional) Video Cable SCART Cable... -
Page 22: Connecting A Vcr/ Stb/ Dvd Player
2.2.3 Connecting a VCR/ STB/ DVD Player Using Component Video/Audio, Composite Video/Audio, or S-Video/Audio Connect the TV to a VCR/ STB/ DVD player using three different types of video/audio inputs. Video Cable VIDEO (Optional) AUDIO Audio Cable (Optional) R-AUDIO-L VIDEO Audio Cable (Optional) Video Cable... -
Page 23: Connecting A Pc Using Vga
2.2.4 Connecting a PC using VGA Connect the TV to your PC to use it as the monitor using the VGA port as shown. 1 Connect the VGA port of the TV to the VGA output of the PC. 2 Connect the line out port of the PC to the PC Audio In port of your TV to listen to audio from the PC. -
Page 24: Connecting Hdmi
2.2.6 Connecting HDMI HDMI (High Definition Multimedia Interface) assures that the best video signal is always sent from source to the TV. Refer to the following illustration to connect a HDMI device to the TV. HDMI IN HDMI 4 DVD Player HDMI Cable (Optional) Note:... -
Page 25: Connecting A Vcr/ Stb/ Dvd Player Using Scart
2.2.8 Connecting a VCR/ STB/ DVD Player using SCART Use the SCART ports to connect a TV, VCR, VCD, DVD player or video game console. You can choose to use a SCART cable or adapter for the connection depending on the ports available on your player. SCART 1 SCART 2 SCART Adapter... -
Page 26: Using The Tv
Using the TV 2.3.1 Turning the TV On and Off 1 Press on the control panel or remote control. The power LED indicator on the TV changes from red to green, indicating that the TV is on. 2 Press again. The power LED changes from green to red, indicating that the TV is off. -
Page 27: Editing The Favorite List
3 Press MUTE to eliminate sounds, and press MUTE again or press the volume buttons to restore the default volume. 2.3.6 Editing the Favorite List 1 Press MENU on the control panel or remote control, then select to enter the Channel menu. -
Page 28: Adjusting On-Screen Display (Osd) Settings
Adjusting On-Screen Display (OSD) Settings The On-Screen Display (OSD) menu system provides a quick and simple method to adjust the TV settings. The OSD menu can be accessed through the buttons either on the control panel or the remote control. Before going to details of each OSD item, you may get acquainted with the placement of the OSD system: ADJUSTABLE ITEMS:... -
Page 29: Osd Setting Menus
OSD Setting Menus Follow the instructions indicated on the bottom of the OSD Function Menu. Press on the control panel or on the remote control to scroll through the menus. press INPUT / VOL+ on the control panel or OK on the remote control to select an item and then press MENU/ VOL- to exit the OSD menu. -
Page 30: Adjusting Audio Settings
Adjusting Audio Settings Press MENU to enter the OSD Main Audio Mode Menu screen. Picture Equalizer Audio Balance Press on the remote control or Audio Effect Clock / Timer on the control panel to select Auto Volume Preferred Language Channel Audio menu. -
Page 31: Adjusting Clock And Timer Settings
Adjusting Clock and Timer Settings Press MENU to enter the OSD Main Sleep Timer Menu screen. Picture Time Mode Audio Date Press on the remote control or Local Offset Clock / Timer on the control panel to select Channel Clock and Timer menu. Setup Press / OK on the remote control or... -
Page 32: Adjusting Channel Settings
Adjusting Channel Settings Press MENU to enter the OSD Main Menu Country screen. Picture Subtitle Audio Teletext Language Press on the remote control or P Auto Scan Clock / Timer on the control panel to select Channel Manual Scan Channel Edit Channel menu. -
Page 33: Adjusting Pc Setting Options
Adjusting PC Setting Options Press MENU to enter the OSD Main H Position Menu screen. Picture V Position Audio Phase Press on the remote control or Clock Clock / Timer on the control panel to select Auto Adjust PC Setting PC Setting menu. -
Page 34: Adjusting Setup Settings
• The Mode Setting can be set to Home Mode or Store Mode. • The Hannspree Light can be set to Off, Low, Medium, or High. • The First Time Setup can be used to adjust the OSD Language, Mode Setting, and Country settings. -
Page 35: Troubleshooting
Troubleshooting Situation Solution • Connect the power cord properly. • Check if the power LED is on or not. • Press on the control panel or remote control. No picture and sound. • Press Input to cycle through connected video sources. •... -
Page 36: Support Timing
Support Timing PC Mode Support Timing Mode Resolution Horizontal Vertical Nominal Pixel PC (VGA) DVI to HDMI (active dot) Frequency Frequency (Hz) Clock (MHz) (KHz) 640x480@60Hz 31.469 59.941 25.175 SVGA 800x600@60Hz 37.879 60.317 1024x768@60Hz 48.363 60.004 VESA 1280x720@60Hz 44.955 59.94 74.25 VESA 1280x960@60Hz... -
Page 37: Specifications
Specifications Screen Size 80 cm / 31.5 ” LCD Panel 1920x1080 Input Function RF In x 1 SCART x 2 AV x 1 Component Video RCA In x 1 Component Audio In x 1 HDMI x 4 VGA x 1 VGA Audio In x 1 CI x 1 (supports 5V) S-Video x 1... -
Page 38: Setting The Tv On The Wall
*Installing the LCD TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hannspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask... -
Page 39: Using The Cable Organizer
Using the Cable Organizer Route the cables through the cable clamp as shown:...
