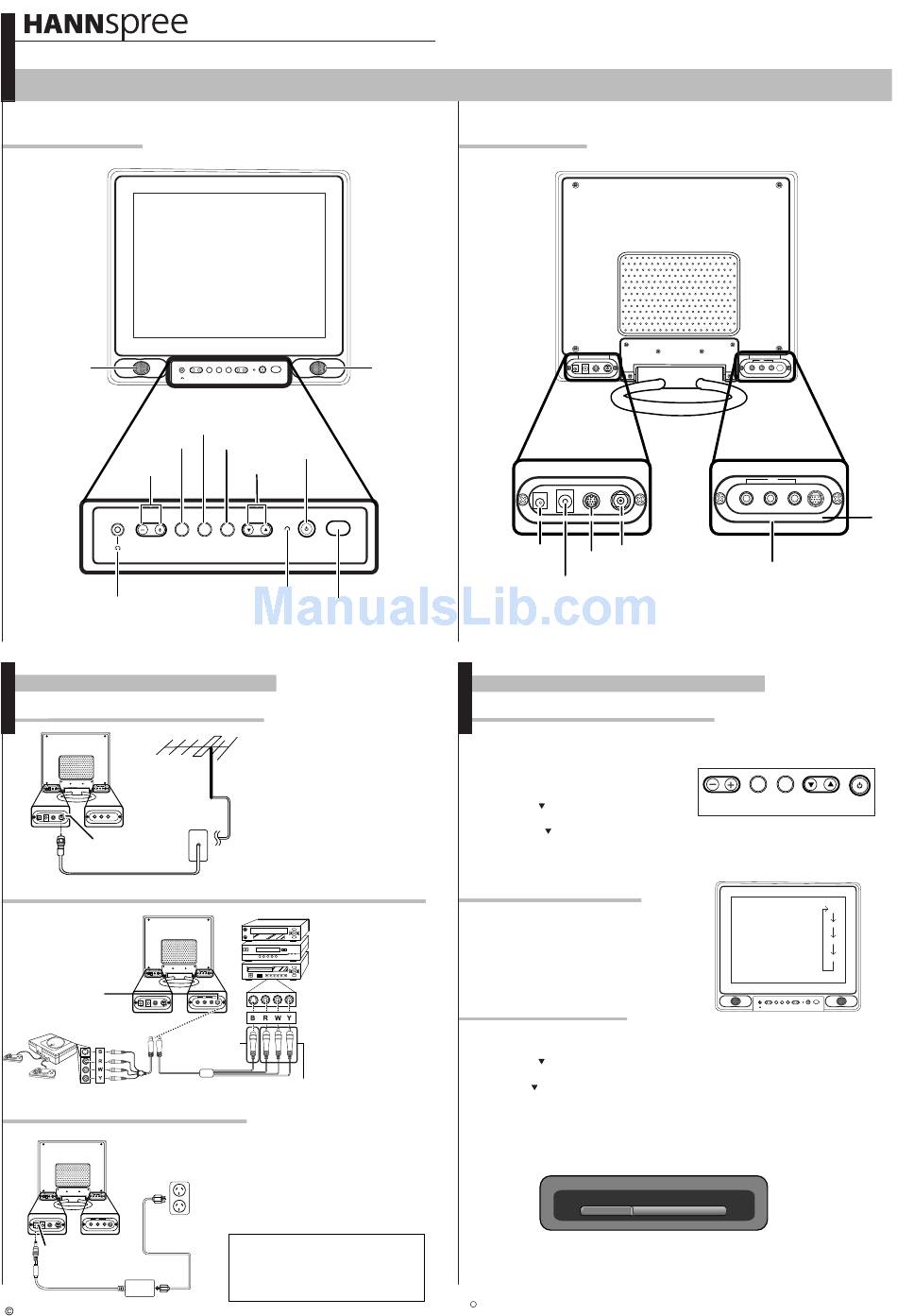

HANNspree ST03-15C1 Quick Start Manual

ST03-15C1 15" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.

Front View

Speaker
Mute
Volume
adjust
VOL MUTE
Earphone jack

Making Connections

Connecting to Antenna/Cable TV
Antenna
AV1
DC-IN LINE OUT PC-IN ANT R L VIDEO AV2
DC-IN LINE OUT PC-IN ANT R L VIDEO
ANT jack
(VHF/UHF IN Jack)
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD, DVD Player, or Video Game Console
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.
DC-IN LINE OUT PC-IN ANT
4-IN-1
A/V jack
DC-IN LINE OUT PC-IN ANT
Video Game Console
4-IN-1 A/V cable

Connecting the Power Adapter

Power outlet
AV1
DC-IN LINE OUT PC-IN ANT R L VIDEO AV2
AV1
Power cord
DC-IN LINE OUT ANT R L VIDEO AV2
PC-IN
DC-IN
Power adapter
Copyright 2005, Hannspree, Inc. All rights reserved.

Quick Start Guide

VOL MUTE MENU SOURCE CH
Menu
Source
Power
Channel
select
MENU SOURCE CH
Power Remote
indicator LED IR sensor
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
2. The cables are
VCR
color-coded (black,
red, white, and yellow).
VCD
Connect each color-
DVD coded cable to
AV1
R L VIDEO AV2
the appropriate
connector on your
AV1
device.
R L VIDEO AV2
S-Video
connector
AV connectors
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
Note :
1. For information on connecting your TV
to a computer, refer to the user's manual.
2. Images are for illustration only and may
vary by model or region.
Rear View
Speaker
DC-IN
DC-IN
A/V and Channel Setup
Watching Broadcast or Cable TV
For NTSC System Only
1. After you have made the appropriate power and
source connections, press the POWER button to turn
on your television.
2. Press the SOURCE button to select TV mode.
3. Press the MENU button to enter the OSD menu.
4. Use the CH
5. Press the VOL + button to enter TV setting.
6. Press the CH
7. Press the VOL + button to select "TV" (broadcast
TV) or "CATV" (cable TV).
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the control
panel to select different source signals.
TV/CATV, "AV1", "AV2" or "PC" appears
on the screen.
Auto Channel Setup
Please follow the instructions by using the control panel.
1. Press the MENU button to enter the OSD menu.
2. Use the CH
3. Press VOL + button into the TV setting.
4. Press CH button until the "Auto Program" feature is selected.
5. Press VOL + to begin "Auto Program".
6. Your television will begin automatically memorizing the available channels.
