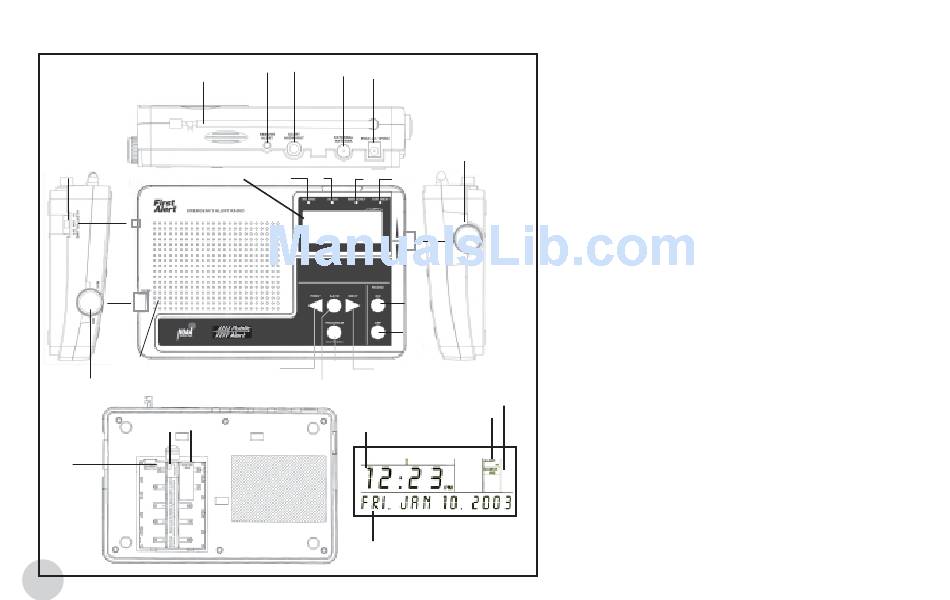

LOCATION OF CONTROLS AND FUNCTIONS
1
WX-167
12
14
13
22 23
21
8
2 3 5
4
6 7 8
9 10
20
19
18
15 17
16
LCD
1
Screen
4
1. IntegratedTelescopic Antenna
2. Remote Alert Jack (3.5 mm)
3. Alert Audio Out Jack (6.2 mm)
4. External Antenna Jack (F Connector)
5. DC Power Jack
6. Liquid Crystal Display (LCD)
11
7. Warning Indicator (red) LED
8. Watch Indicator (orange) LED
9. AdvisoryIndicator (yellow) LED
10. Power Indicator (green) LED
11. Function Knob
12. ALERT Volume/OFF Switch
13. Volume Knob
14. Speaker
15. PREV Button (Denoted as "<")
16. SAVE Button
17. PROGRAM Button
18. NEXT Button (Denoted as ">")
19. Radio OFF Button
20. Radio ON Button
3
21. Battery type switch
2
22. PC programming switch
23. PC connection jack
LCD Screen
1. Time of Day with AM/PM indicator
2. Alert siren setting
3. Number of stored alerts that are active
4. Scrolling text for messages and program
menus, date.
