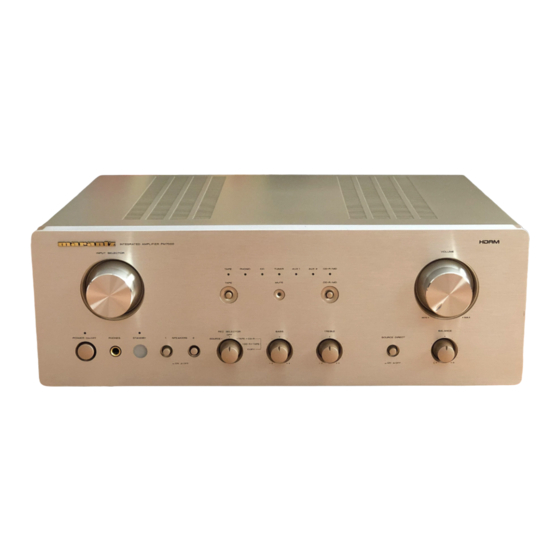

Model PM7000/PM8000
Integrated Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz PM7000

Summary of Contents for Marantz PM7000

  • Page 1 Model PM7000/PM8000 Integrated Amplifier...
  • Page 2 VIKTIGT GARANTIE Kunden ansvarar för att uppvisa inköpsbevis när service begärs som Neem contact op met de Marantz distributeurs in uw buurt voor in- täcks av garantin. Ditt kvitto eller faktura är ett giltigt inköpsbevis. formatie over de garantie. DANSK BEWAAR UW REçu ALS AANKOOPBEWIJS.
  • Page 3 English The PM7000/PM8000 conforms with the EMC directive and low-voltage directive. Français Le PM7000/PM8000 est conforme à la directive EMC et à la directive sur les basses tensions. Deutsch Der PM7000/PM8000 entspricht den Bestimmungen über elektromagnetische Störfreiheit (EMC) und denen über Niederspannungsgeräte.
  • Page 4 — Never place heavy objects on top of the amplifier. setting, consult your dealer your local Marantz service provider. — Should foreign matter or water get into the interior of the amplifier, immediately turn it off and contact your original dealer or Marantz IMPORTANT: (FOR U.K. MODEL) service provider.

  • Page 5: Controls, Connectors And Indicators

    ohms. Connecting a speaker with impedance less than 8 ohms POWER CORD can causes activation of the amplifier’s protection circuitry dur- Connect the power cord to a standard household power outlet. ing play, making normal stereo playback impossible. POWER SWITCH —...

  • Page 6: Operation

    OPERATION BASS AND TREBLE TONE CONTROLS Use these controls to control the levels of their corresponding fre- quency bands. TREBLE adjusts the high frequency band, while INTEGRATED AMPLIFIER PM8000 INPUT SELECTOR VOLUME BASS adjusts the low frequency band. Rotating a control towards TAPE PHONO TUNER...
  • Page 7 TAPE DECK CD-R(MD) OPERATION USING THE REC SELECTOR Use the REC SELECTOR E to specify the type of recording you want to perform. 1. The OFF setting cuts off all signal output from the REC OUT INTEGRATED AMPLIFIER PM8000 INPUT SELECTOR VOLUME jacks.
  • Page 8 The following are the functions assigned to control buttons after the The RC8000PM remote control unit can be used to control any CD amplifier source button is pressed. Marantz AV equipment that has a remote sensor, as well as other Marantz equipment connected to the main equipment’s remote BUTTON NAME FUNCTION control bus.
  • Page 9 CD-R BUTTON AUX 2 BUTTON The following are the functions assigned to control buttons after the The following are the functions assigned to control buttons after the CD-R amplifier source button is pressed. AUX 2 amplifier source button is pressed. BUTTON NAME FUNCTION BUTTON NAME...

  • Page 10: Using The Remote Control Unit

    Farst-forwad between the transmitter and sensor. Rewind Remote Control Operating Range Direction Switch Amplifier (PM7000/PM8000) Stop Pause OPEN/CLOSE Eject Next Approximately 5 meters –...

  • Page 11: Care And Maintenance

    This section describes care and maintenance that you must per- Whenever you have a problem with the amplifier, check the follow- form in order to make sure your Marantz amplifier performs at the ing points before requesting service. What may seem to be a serious level for which it is designed.
  • Page 12 MODEL PM7000/PM8000 TECHNICAL SPECIFICATIONS (DIN) Power output (class AB operation) RMS 8 ohms (20 Hz-20 kHz) ......................95 W DIN 8 ohms ............................ 105 W THD at 8 ohms RMS rated output ....................0.03% Damping factor ........................... 150 Power output (PM8000 classA operation) RMS 8 ohms (20 Hz-20 kHz) ......................
  • Page 13 FIGURES...
  • Page 14 Tape Deck Processor Output Input Output Input Tuner PROCESSOR SPEAKER SYSTEMS SYSTEM 1 8 - 16 OHMS SYSTEM 2 8 - 16 OHMS CD-R/MD SYSTEM 1+2 : 16 OHMS SYSTEM 2 AUX2 TAPE AUX1 TUNER SYSTEM 1 PHONO Output CD player Turntable NOTE: Turn the knobs on the speaker terminals by hand.
  • Page 15 SWITCHED TOTAL 100W MAX TUNER REMOTE CONTROL – – SYSTEM 1 PHONO 230V 50HZ AC OUTLETS PRODUCED UNDER SUPERVISION OF MARANTZ JAPAN IN SINGAPORE INTEGRATED AMPLIFIER PM8000 INPUT SELECTOR VOLUME TAPE PHONO TUNER AUX1 AUX2 CD-R/MD TAPE MUTE CD-R/MD REC SELECTOR...
  • Page 16 P.O. Box 685, Bell Village, Port Louis, Mauritius NETHERLANDS Marantz Trading A division of Marantz Europe B.V., Building SFF-2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands NEW ZEALAND Scan audio Pty. Ltd. 4 Station Street, Thornleigh NSW 2120, Australia...
