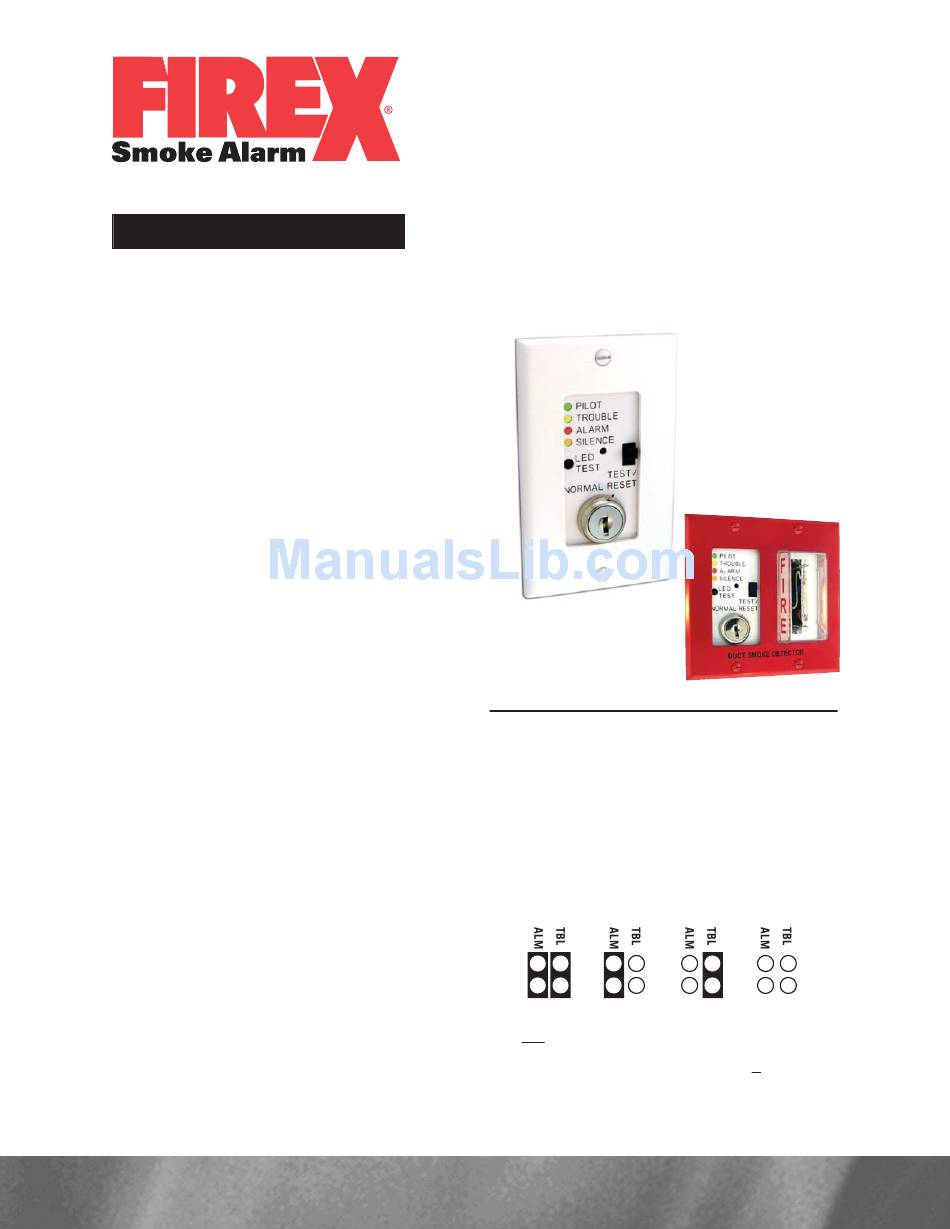

Firex 591S Specification Sheet

The professional choice in fire safety.
NEW ACCESSORIES
The NEW remote accessories are designed to be used with
Firex duct smoke detectors to provide the most complete
functionality ever available in such a device.
The remote accessory is available with either the single gang
remote indicator/control (591 models), or with the addition of
a single gang strobe assembly (592 models). Both versions
are compatible with standard Decora style cover plates
(choice of white, red or stainless steel). A strobe-only version
(593 models) is available for retrofit upgrade of "controller
only" installations.
The indicator/control assembly provides:
Visual indication of detector Pilot, Trouble and Alarm
●
Functions
Selectable audible indication of Alarm, Trouble or both
●
● Buzzer Silence function, with silenced indication and
"ringback" following condition correction
Lamp/Buzzer test function
●
● Key-Operated detector Test and Reset functions
● Lever-operated "No-Tools" terminal block
Port for plugging in the optional strobe assembly
●
● Black "DUCT SMOKE DETECTOR" decal included for
front plate
● Blue "SMOKE", red "FIRE" strobe lens decals included for
both horizontal and vertical mounting
Strobe Connection
The strobe assembly provides visual indication of alarm
conditions, and is connected to the indicator/control
assembly via the provided polarized connector.
To install the strobe module, simply plug the provided
connector onto the pins as indicated on the rear of the
indicator/control module. Snap the strobe lens into the cover
plate, and install cover plate following completion of remote
module wiring.
NOTE: The strobe and audible buzzer features are not ADA
compliant, and not intended for life safety notification or
evacuation purposes (public mode). These functions are for
duct smoke detector status indication only (private mode).
Duct Smoke Detector
Remote Accessories
Universal Voltage Models Compatible with
230 VAC, 115 VAC, 24 VAC or 24 VDC operation
2650-760 Ionization • 2650-761 Photoelectric
2650-660 Ionization • 2650-661 Photoelectric
2650-560 Ionization • 2650-561 Photoelectric
591S
Audible Buzzer Configuration
There are two jumpers located on the rear of the
indicator/control assembly. To enable audible buzzer
operation for Alarm or Trouble conditions, simply leave the
jumpers in place. To disable either or both functions,
remove the appropriate jumper(s).
Buzzer will Buzzer will
function on function on
both Alarm on Alarm
and Trouble Condition
Conditions only
592SC
Buzzer will Buzzer
function will not
on Trouble function
Condition on Alarm
only or Trouble
Conditions
