• Follow all instructions.
• Do not place this device near water and clean only with dry cloth.
• Do not block any ventilation openings.
• Install in accordance with Sans Digital's instructions.
• Do not place near any heat sources such as radiators, heat registers, stoves,
or the devices (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Hard Drive Installation

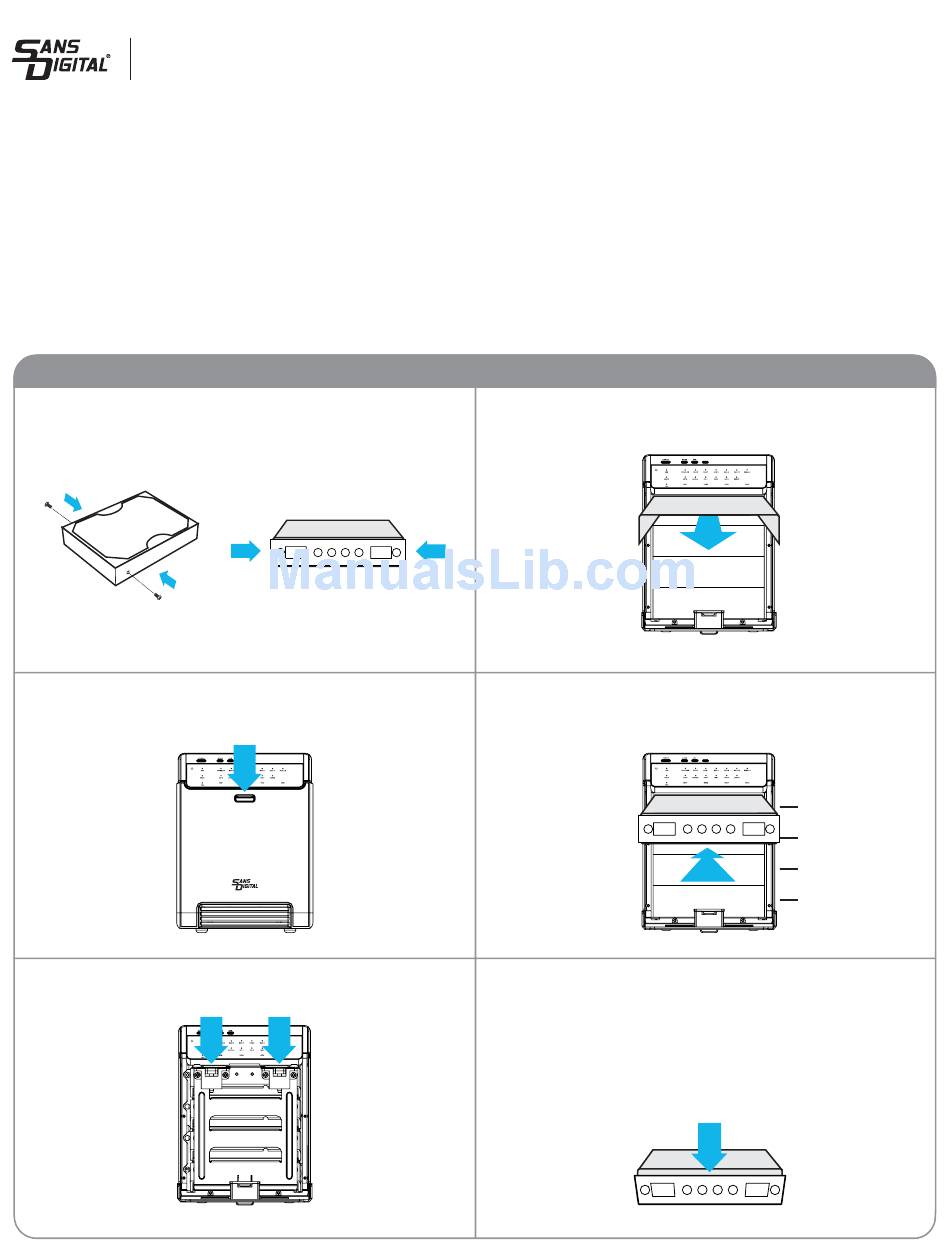

1) Use the enclosed handles to secure the 4 HDDs with screws in the
given direction indicators.
2) Push the tab on the front cover downward to open the cover.
3) Press down the tab located on the top of the metal frame to remove
the frame.
MS4UT+
• Only use attachments/accessories specified by Sans Digital.
• Unplug this during lightning storms or when unused for long periods of time.
• Refer all servicing to Sans Digital Technical Support. Servicing is required when the
devices has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the devices.
• Carefully read and follow the Quick Installation Guide and User Manual.
• Do not drop or shake the device.
• Do not move the device when it is powered on.
• Do not overload wall outlets.
4) Take the paper drive bay holder out of the device.
5) Slide 4 HDDs into the chassis and make sure they are securely installed
in the order from top to bottom. (Make sure the HDD1 is securely
installed first at all times. Otherwise the PC may not recognize the device.)
6) Reinstall the metal frame that was removed in Step 3. Make sure the
bottom of the frame is locked inside the track before closing the cover.
7) Connect the power supply to the device, plug in USB or eSATA cable in
the rear panel and power on the device.
8) Setup RAID settings by following RAID Setup instructions.
9) Please format the HDD via OS if the HDD is unformatted. Refer to OS
manual for detailed instructions on how to format HDD.
10) To take the HDD out from the device, slightly press down the handle
and pull it out.
