Summary of Contents for Kogan KGN1080PPRO32VD

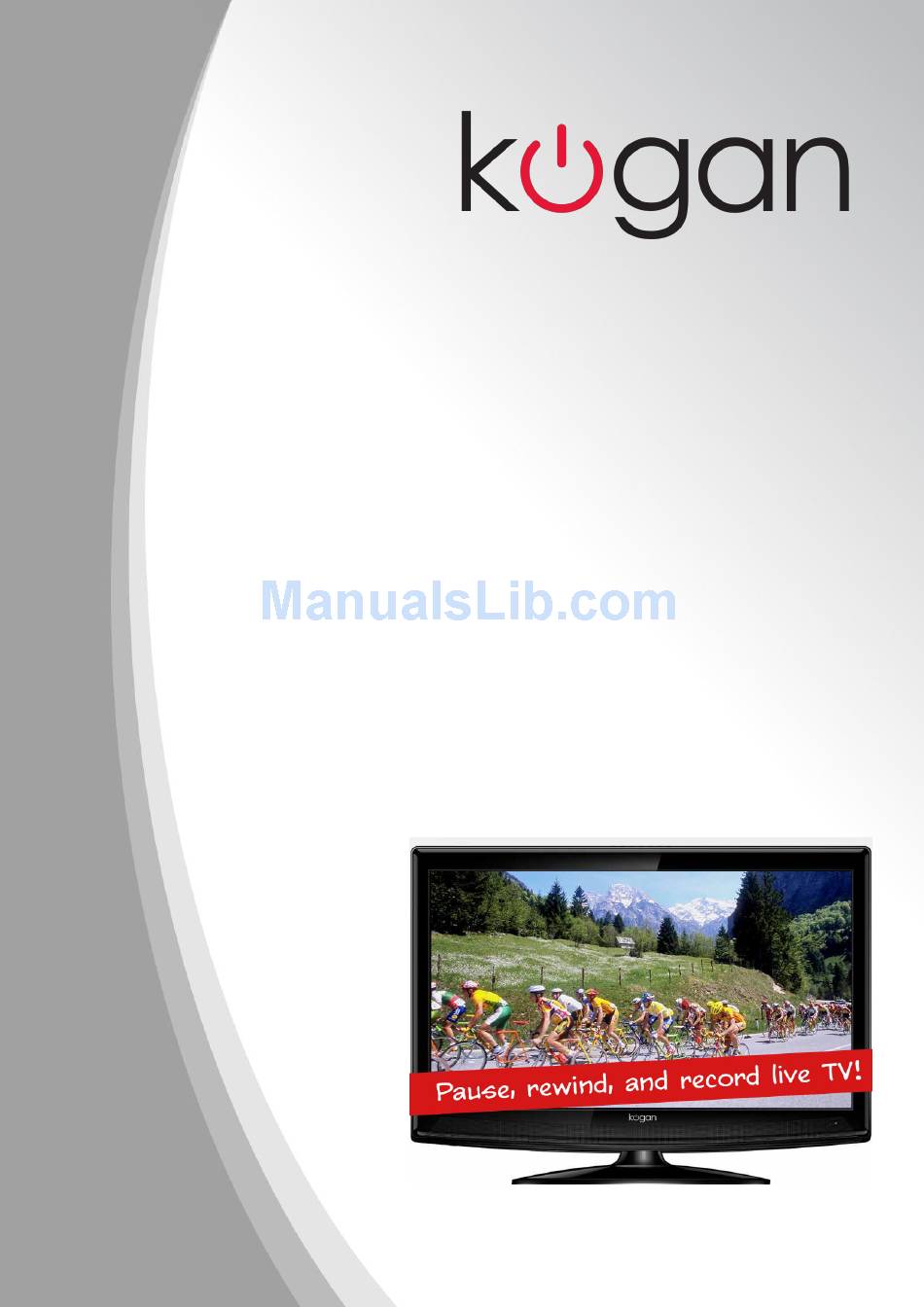

- Page 1 KGN1080PPRO32VD USER MANUAL...
- Page 2 USB..............
- Page 4 Remote control/batteries Power cord...
- Page 5 Remote control indicator Power/Standby button FREEZE P.MODE S.MODE SLEEP Sleep function button Picture mode button Picture frozen button Sound mode button Numeric buttons A/DTV -/-- Return channel button Multi-digits channel buttton Signal source select button Menu button SOURCE MENU Navigation buttons (Up, Down, Left, Right) Confirm button EXIT Menu exit button...
- Page 6 P.MODE: Picture mode button, setting the picture mode. S.MODE: Sound mode button, setting the sound mode. FREEZE: Press the FREEZE button to freeze the picture on the screen at current frame. SLEEP: Sleep button, setting TV power off time. 0,1-9: TV channel selection button.
- Page 7 TXT/MIX: Press it to enter teletext state and display teletext page; press this button again, display both image and teletext page at the same time. If you want to exit teletext state, press this button again. CANCEL: Do not display the content of the page, but only the channel image. Press it again to display the content of the page again. SIZE: Press it once to enlarge the content on the upper part of the page, and press it the second time to enlarge the content on the lower part of the page, and the third time to resume normal display of all the contents on the page.
- Page 8 Power indicator. Remote sensor. Power on/off button. 8. SD/MMC/MS card slot. 9. USB2 port (Only available in DVD mode). 10. STOP button. Insert DVD with Label to the Front 11. OPEN/CLOSE button. 12. PLAY/PAUSE button.
- Page 9 COMPONENT1 COMPONENT2 PC AUDIO ON/OFF AC IN VIDEO VIDEO USB1 HDMI1 HDMI2 COAXIAL RF(75 ) S-VIDEO Power on/off button. AC power input terminal. USB1 input (Only available in Media mode). HDMI input. S-VIDEO input. Component video & audio input terminals (COMPONENT1). Component video input terminals (COMPONENT2).
- Page 10 YPbPr COMPONENT1 COMPONENT2 PC AUDIO ON/OFF AC IN VIDEO VIDEO USB1 HDMI1 HDMI2 COAXIAL RF(75 ) S-VIDEO VGA use a common PC AUDIO in.
- Page 11 If this is the first time switch on, the First time installation menu will appear on the display. Please select an OSD Language Language English Español Italiano Press o/p/b/a button to select the desired language, Deutsch Français then press OK button to enter the “Channel Tuning” screen.
-
Page 12: Channel Menu
1 CHANNEL MENU The image on the left depicts the channel menu. The definition of each option: Auto Tuning: Press button to this position, then Auto Tuning DTV Manual Tuning press or OK button to enter auto tuning of both ATV ATV Manual Tuning Programme Edit CHANNEL... - Page 13 ATV Manual Tuning: Current CH: Press b/a button to select the channel ATV Manual Tuning number you want to store. Current CH Color System: Press b/a button to change the color Color System system as Auto, SECAM, PAL. Sound System Sound System: Press b/a button to change the sound Fine-Tune 44.00 MHz...
-
Page 14: Picture Menu
2 PICTURE MENU The image on the left depicts the picture menu. The definition of each option: Picture Mode: Changes the picture mode in sequence: Picture Mode Personal Contrast Dynamic Standard Mild Personal. You may select Brightness Colour PICTURE Tint the picture mode by pressing P.MODE button repeatedly. - Page 15 4 TIME MENU The image on the left depicts the time menu. The definition of each option: Clock (For DTV only): Display the current system time. Clock -- -- -- -- Time Zone NSW/ACT It’s not available. Sleep Timer Auto Standby TIME Time Zone (For DTV only): Press p/o/b/a button to...
- Page 16 Set Password: You can change the password by entering the old and a new password and then re-entering it to Please enter old password confirm the new one. Please enter new password Confirm new password Clear Cancel Block Program: Press Green button to lock the desired Block Program channel, press it again to unlock it.
-
Page 17: Setup Menu
Hotel Mode: Have the priority than other options below. To set below options, this item must be set to “On” firstly. Source Lock: To set the input source item which you Hotel Mode Source Lock want to be locked. Default Source Default Prog HOTEL Max Volume... - Page 18 Press button on the remote control to start recording [00:00:59] (0000:23:40) the programme. “ ” mark appears at the top left corner Play Prev. Next Pause Stop 9 Nine Digital 15:51 of the TV screen, and the title bar appears at the bottom which includes the recording information.
-
Page 20: Basic Operation
Basic operation Before operating Media menu, plug in USB device in USB1 port, then press SOURCE button to set the input source to Media. Press o/p button to select Media in the source menu. then press OK or a button to enter. Press b/a button to select the submenu: PHOTO, MUSIC, MOVIE or TEXT, and press OK button to confirm. - Page 21 EXIT Exit EXIT Exit Press b/a button to select the file you want Press OK button to start a slideshow. to watch in the file selecting menu. Press Red button then select “Yes” or press OK button to delete the file selected. When highlighting the option you select, the Press INFO button to show the menu in the file information will appear on the right and...
- Page 22 Press b/a button to select one function in the bottom you want to run, then press OK button to operate. Press EXIT button to return to the main menu. You can press relevant buttons on the remote control to perform such functions directly. l button: Pause or resume playing.
- Page 23 TEXT EXIT Exit Press b/a button to select “TEXT”, then Press b/a button to select the file you want press OK button to enter. to watch in the file selecting menu. When highlighting the option you select, the file information will appear on the right and text will be previewed in the center.
-
Page 25: Basic Playback
The following types of discs can be played on this unit. Handling, Storing and Cleaning Discs Disc type and logo mark Do not touch the disc door while it is moving. Never put anything except a 5-inch (12cm) DVD (or CD) into the disc in/out slot. - Page 26 Various disc playing functions Designated Range Repeat Playback (A-B Repeat) Selecting a DVD menu Notes: 1.Press MENU/SUBPAGE button during playback. 1. Press A-B b u t t o n during playback at the beginning The main menu screen will appear. of the section you want to repeat (Point A).
-
Page 27: Initial Settings
KODAK Picture/JPEG CD Playback Dolby Digital setup menu To start the slide show from the thumbnail pictures: General AUDIO Dolby VIDEO Preference 1.Press o / a/ p/ b button to select the desired picture. --DOLBY DIGITAL SETUP-- DUAL MONO or f button. DYNAMIC 2. - Page 30 31.5 inch 698.4mm (H) X 392.85mm (V) 16:9 1920 X 1080 450 cd/m 4000:1 0.1213mm (H) X 0.3638mm (V) 16.7M 6.5ms Speaker (Built-in) 2 (10W, 8 Ohm) YPbPr Input 1 (4 pin DIN) S-VIDEO (For YPbPr, AV, S-VIDEO) USB Input 1920x1080 135W...
