KGN
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KGN1080P-PRO32VAA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan KGN1080P-PRO32VAA

Summary of Contents for Kogan KGN1080P-PRO32VAA

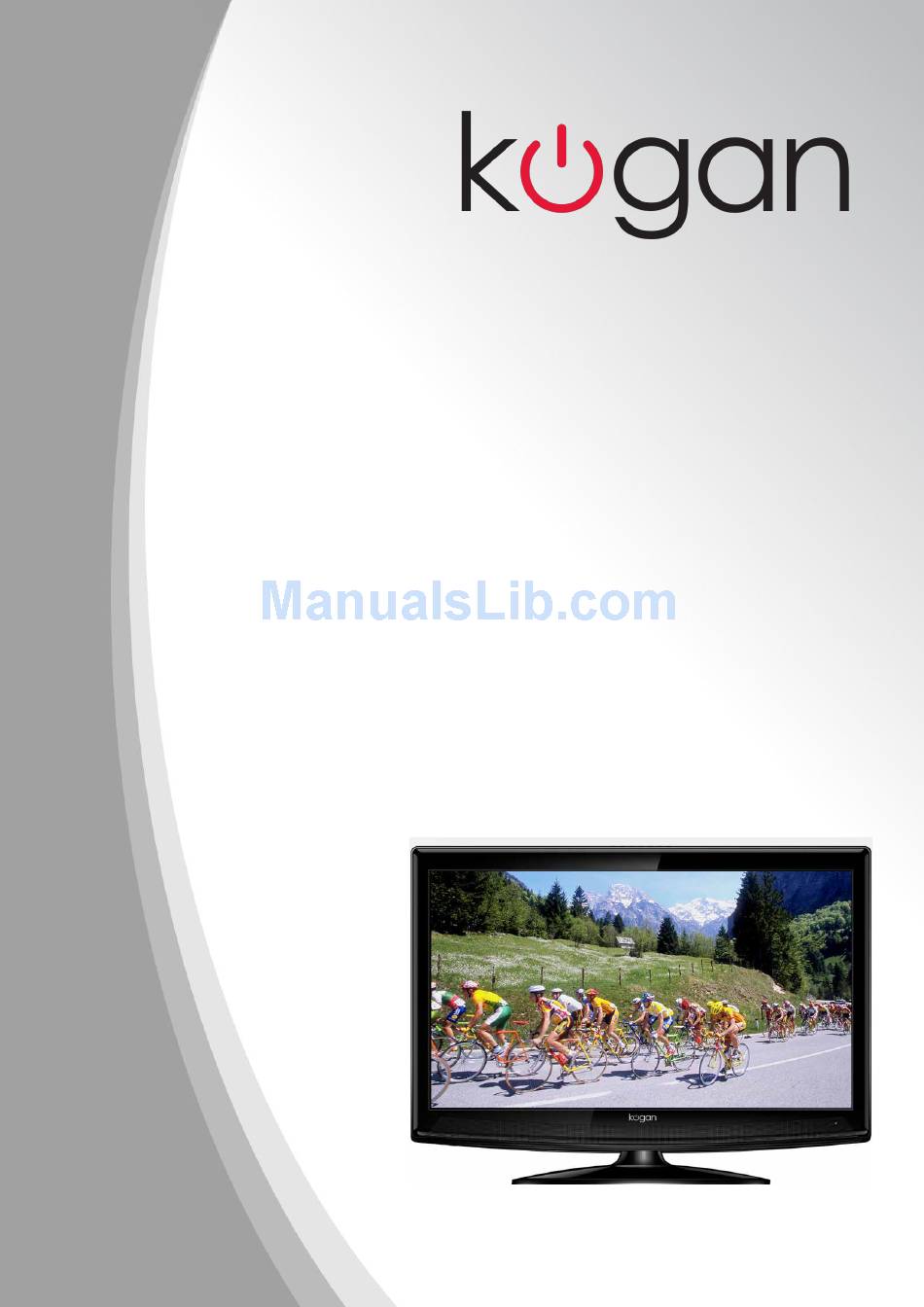

  • Page 1 USER MANUAL...

  • Page 2: Dvd Operation

    DVD Operation...
  • Page 4 Remote control/batteries Power cord...
  • Page 5 Remote control indicator Power/Standby button P.MODE S.MODE SLEEP Sleep function button Picture mode button NICAM function button Sound mode button Numeric buttons CH.LIST Channel list / USB/SD Card Return channel button function select buttton Signal source select button Menu button SOURCE MENU Navigation buttons (Up, Down, Left, Right)
  • Page 6 P.MODE: Picture mode button, setting the picture mode. S.MODE: Sound mode button, setting the sound mode. I/II: Press the I/II button to choose a different audio channel. SLEEP: Sleep button, setting TV power off time. 0,1-9: TV channel selection button. CH.LIST: Press the CH.LIST button to display the channel list.
  • Page 7 Power indicator. Remote sensor. Power on/off button. 8. SD/MMC/MS card slot. 9. USB port. 10. STOP button. Insert DVD with Label to the Front 11. OPEN/CLOSE button. 12. PLAY/PAUSE button.

  • Page 8: Hdmi Input

    Pb2 Pr2 C-VIDEO AC IN ON/OFF HDMI1 HDMI2 HDMI3 COAX Pb1 Pr1 S-VIDEO SERVICE AC power input terminal. Power on/off button. USB SERVICE input (Serviceable only for updating the firmware). HDMI input. Component video & audio input terminals (Y Pb Pr/L/R 1/2). S-VIDEO input.
  • Page 9 YPbPr Pb2 Pr2 C-VIDEO AC IN ON/OFF HDMI1 HDMI2 HDMI3 COAX SERVICE Pb1 Pr1 S-VIDEO S-VIDEO/AV use a common L/R in.
  • Page 10 Initial Setup Welcome 1. Turn on TV, then press OK button to start the wizard. Welcome to use the Wizard for Initial Setup !! Please press [OK] to start the wizard. Region Initial Setup Please select your region: NSW/ACT 2. Press button to select your region, then press OK button to confirm.

  • Page 11: Video Menu

    1 VIDEO MENU Picture Mode Standard The image on the left depicts the video menu. Brightness The definition of each option: Contrast Saturation Picture Mode: Changes the picture mode in sequence: Sharpness Colour Temperature Standard Mild Vivid User. Advanced Video Brightness: Changes the value of brightness with the in the range of 0 to 100.

  • Page 12: Audio Menu

    2 AUDIO MENU Sound Mode Standard The image on the left depicts the audio menu. Balance Bass The definition of each option: Treble Sound Mode: Changes the sound mode in sequence: Sound Surround Auto Volume Control Standard Pop Rock News. Balance: Changes the value of balance with the key in the range of -50 to +50.
  • Page 13 Manual Scan: Press or OK button to enter Manual Scan submenu. Select one of the following options: Digital Digital Manual Scan Analog Manual Scan Manual Scan and Analog Manual Scan. Manual Scan OK Enter Select EXIT Exit Digital Manual Scan: Press or OK button to enter Digital Manual Scan.

  • Page 14: Setup Menu

    Analog Channel Fine Tune: Press or OK button to enter Analog Channel Fine Tune submenu. Press button 55.8 MHz 60.5 MHz to select the channel and press OK button to enter. Analog Channel Fine T OK Adjust Select EXIT Back Press button to search forwards and backwards to Channel Number: 900...

  • Page 15: Parental Menu

    Subtitle: Changes the Digital Subtitle to “Off” or “English”. Digital Subtitle Select EXIT Back Subtitle Version Info: Press or OK button to view the soft and hard version. Soft Version: HKTF_HD ver 1.00 Hard Version: Antlia VER 1.01 EXIT Back Setup Reset Default: Press to this position, then press...
  • Page 16 Hotel Block: Press key to this position, then press key to enter Hotel Block submenu, the menu options Hotel Block include Hotel Lock and Max Volume. Program Block Input Block Change Password Clear All Blocks Parental Enter Select EXIT Back Hotel Lock: Changes the hotel lock to “On”...
  • Page 17 Change Password: Change the parental password. New Password Confirm Password Change Password EXIT Back Clear All Blocks: To clear all the locks. Are you sure? Cancel 1. Press SOURCE button to change from TV to other available inputs. Source 2. Press button to select signal source.

  • Page 19: Basic Playback

    Handling, Storing and Cleaning Discs The following types of discs can be played on this unit. Disc type and logo mark Do not touch the disc door while it is moving. • Never put anything except a 5-inch (12cm) or 3-inch •...
  • Page 20 Various disc playing functions Designated Range Repeat Playback(A-B Repeat) n i o n i o Selecting a DVD menu Notes: •The operation may differ depending on the disc used. •Selecting a menu may not be possible on some discs. 1.Press MENU/SUBPAGE button during playback. 1.

  • Page 21: Initial Settings

    KODAK Picture/JPEG CD Playback Dolby Digital setup menu To start the slide show from the thumbnail pictures: General AUDIO Dolby VIDEO Preference --DOLBY DIGITAL SETUP-- 1.Press button to select the desired picture. • To go to the next or previous thumbnail pictures, press e DUAL MONO button.
  • Page 24 31.5 inch 698.4mm (H) X 392.85mm (V) 16:9 1920 X 1080 450 cd/m 4000:1 0.1213mm (H) X 0.3638mm (V) 16.7M 6.5ms Speaker (Built-in) 2 (10W, 12 Ohm) YPbPr Input 1 (4 pin DIN) S-VIDEO (For YPbPr, AV, S-VIDEO) USB SERVICE Input 1 Service Input 1920x1080 <...
