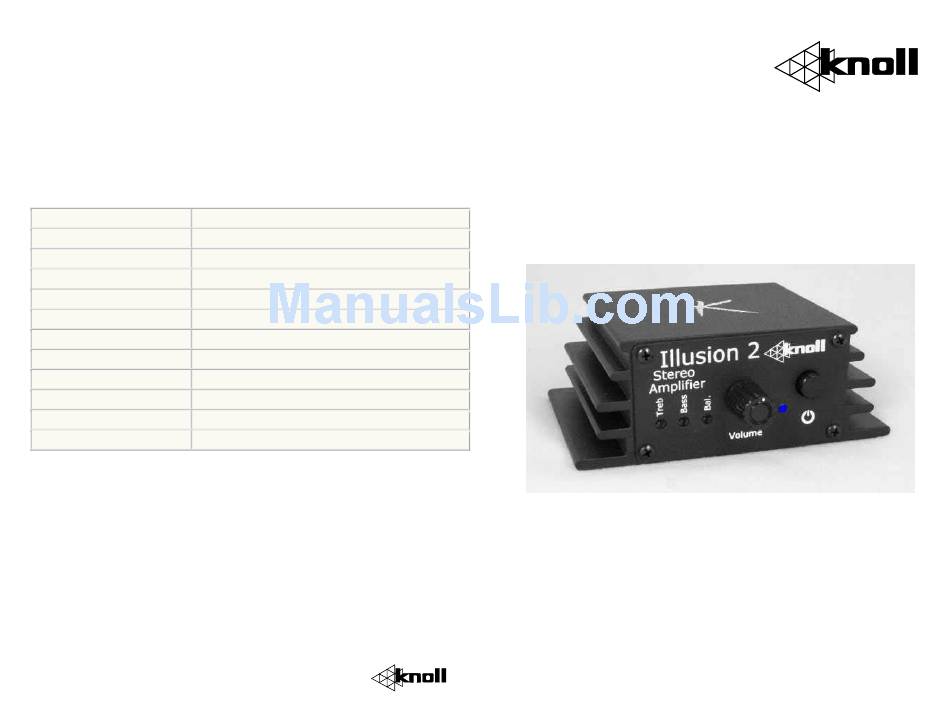

Knoll Illusion 2 Installation Instructions

Warranty

Knoll Systems warrants Illusion Amplifiers sold in the USA and Canada by
authorized Knoll dealers to be free of defects in materials and workmanship.
This warranty extends for three full years from the date of purchase by the
original consumer. Any products returned to Knoll Systems and found to be
defective by Knoll Systems within the warranty period will be repaired or
replaced at Knoll Systems option, at no charge. Knoll Systems will not be
responsible for the actual cost of installation or removal of the product, nor for
any incidental or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitation may not apply to you. This warranty gives you specific legal rights.
You may have additional legal rights that vary from state-to-state.

Specifications:

Inputs Gold RCA jacks with adjustable gain
Input impedance 55k ohms
Outputs Detachable 4 position connector
Output power 15 watts RMS per channel (8 ohms)
Peak output power 20 watts per channel (8 ohms)
Ideal impedance 4 - 8 ohms
Frequency response 10 Hz - 40 kHz +/- 1dB (1w)
THD distortion less than 1% 20 Hz to 20 kHz
IMD distortion less than 0.5% 60 Hz 7 kHz 4:1 (SMPTE)
Dimensions 4-1/2" x 1-3/4" x 4-1/4" (114 x 43 x 107mm)
Weight: ¾ lb. (0.35 kg) without power supply
Power 13VDC at 1800mA
Knoll Systems
145 Tyee Drive Point Roberts, WA 98281
12140 Horseshoe Way, Richmond, BC V7A 4V4
Tel: (604) 272 4555, fax (604) 272 5595
Made in Canada

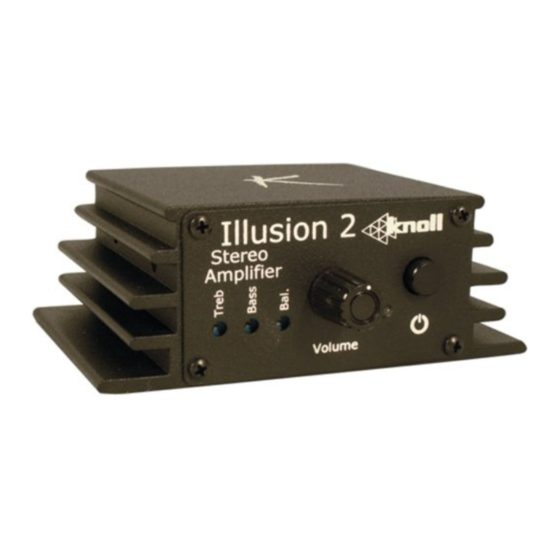

Illusion Amplifier
Stereo Amplifier
Installation Instructions v1.0
Warning: To be installed and/or used in accordance with appropriate
electrical codes and regulations.
Description: Illusion amplifiers are a line of 15-watt per channel high-
fidelity stereo amplifiers. Stable from 2 to 16 ohm loads, the Illusion
amplifiers are available with an integrated pre-amplifier (Illusion 2) or
just with a volume control (Illusion 1). The Illusion 2 integrated
amplifier features a volume/gain, bass, treble and balance controls.
Illusion amplifiers designed to meet the amplifier needs of custom
installed systems where high-quality sound is a specific requirement.

Key Features:

•
Small size, big sound. Fits almost anywhere.
•
Versatile amplifier available in 2 versions (with and
without bass, treble and balance).
•
Amplifier has 15 watt per channel rating.
•
Each channel is protected from overheating,
overloading, overvoltage and undervoltage. The
protection circuitry automatically restores the amplifier
