Knoll VS105pm Installation Instructions

Operation: Knoll Systems volume controls are very easy to use. The
VS105pm has a total of 12 different volume settings including fully off.
To increase the volume (in this room only), slide the volume control
knob upwards. To lower the volume, slide the volume control knob
downwards.
To set the correct amplifier or receiver volume setting, we
suggest that you turn the VS105pm volume control in one room to
maximum. Adjust the amplifier or receiver volume to the loudest
comfortable setting you will use and no further or louder. This way the
VS105pm volume control has the most usable settings. If the amp
volume control was set louder, the VS105pm volume control would
have to be turned down to be back at a comfortable level allowing less
overall volume positions available.

Warranty

Knoll Systems warrants the VS105pm sold in the USA and Canada by
authorized Knoll dealers to be free of defects in materials and workmanship.
This warranty extends for three full years from the date of purchase by the
original consumer. Any products returned to Knoll Systems and found to be
defective by Knoll Systems within the warranty period will be repaired or
replaced at Knoll Systems option, at no charge. Knoll Systems will not be
responsible for the actual cost of installation or removal of the product, nor for
any incidental or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitation may not apply to you. This warranty gives you specific legal rights.
You may have additional legal rights that vary from state-to-state.

Specifications

Peak RMS Power Rating 105 watts per channel
Continuous RMS Power
Frequency Response
Mounting Depth
Electrical Junction Box
Speaker Impedance
Connection
Knoll Systems
145 Tyee Drive Point Roberts, WA 98281 USA
14-7163 Vantage Way, Delta BC V4G 1N1 Canada
Tel: (604) 940-1689, fax (855) 734-3363
www.knollsystems.com
55 watts per channel
0 to 500,000 Hz
1.6" (41mm)
Fits single gang
4-16 ohms (single or multiple
speakers)
Detachable screw terminals
VS105pm
Impedance Matching Volume Control
Installation Instructions v1.0
Warning: To be installed and/or used in accordance with appropriate
electrical codes and regulations.
Caution: Do not install these keypads in an electrical junction box
with 110V or higher unless an approved barrier separates the high and
low voltage sections.

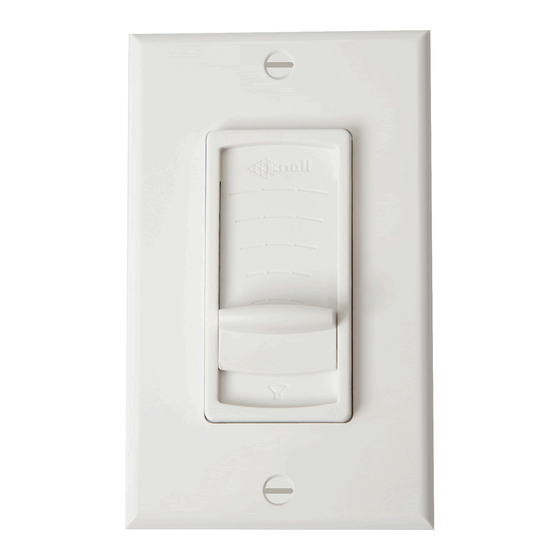

Description: The Knoll Systems VS105pm is a twelve-position in-wall
mountable stereo speaker volume control with POWERMATCH™ fully
automatic impedance matching capability. From one to six pairs of
speakers can be safely driven from one stereo amplifier using an equal
number of VS105pm's. Separate impedance matching components are
not required. The Knoll Systems WT6 one stereo input to six stereo
output connection strip is available to organize the wiring of larger
systems.
The VS105pm is the smallest size volume control ever made by Knoll,
so it fits almost everywhere. A rotary switch version is available,
model VC105pm.
 Smallest size high power volume control ever
made. Only 1.6" deep.
 105 RMS watts per channel.
 Full frequency response 0 Hz to 500,000 +/- 1 dB.
 Best sound quality possible because autoformers
are not used.
 Single gang decorator style.
 Detachable screw terminals for 12-24 gauge wire.
 V-pad design doesn't burn off excessive heat like
L-pads.
